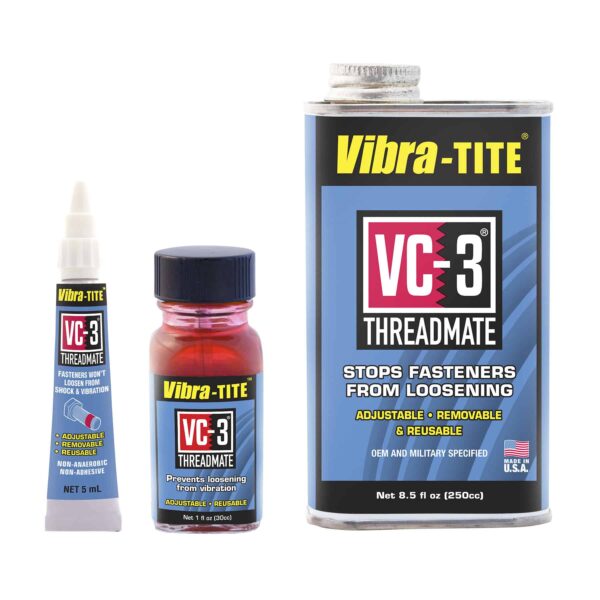

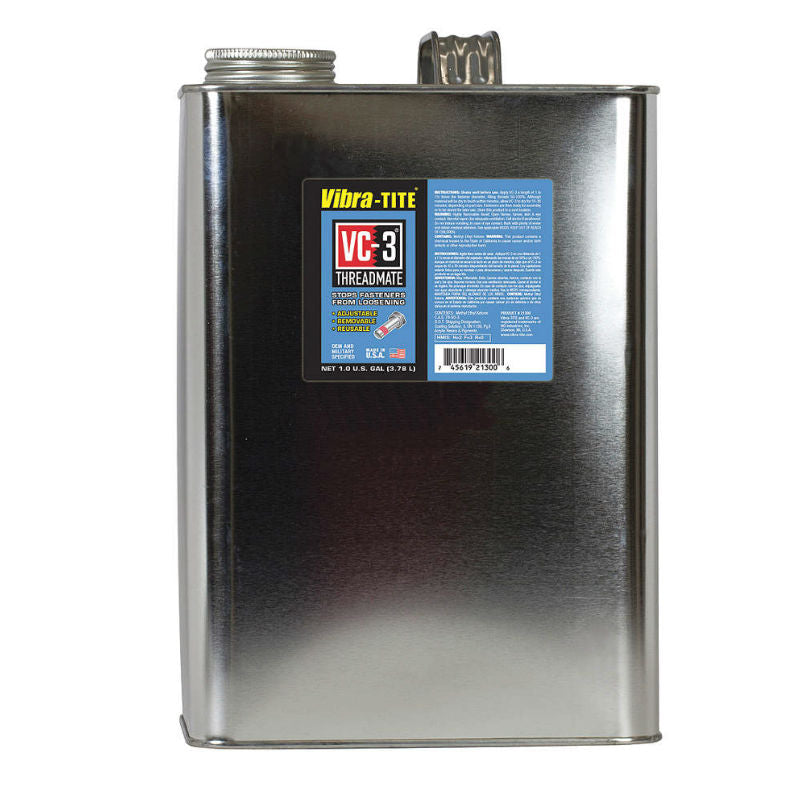

Vibra-Tite - 213 VC-3 Threadmate

Vibra-Tite

VT21305

We currently have 28 available.

Sale price $6.08 Regular price $6.13

Shipping calculated at checkout.


Vibra-Tite VC-3 Threadmate is one of the most versatile thread lockers available. An alternative to traditional liquid lockers, which cure to form a complex bond, VC-3 is a proprietary blend of thermoplastic elastomer resins designed to remain flexible and absorb vibration. The combination of inert/non-reactive amorphous resins creates a tough, semi-solid layer inside the threads of a mated joint. VC-3 damps the vibrational energy transferred between the threads of a mated fastener, preventing fastener loosening and loss of clamp load. These unique differences make VC-3 coated fasteners adjustable, removable, and reusable.

  • An acrylic polymer that damps and absorbs vibration
  • Will not harden like anaerobic thread lockers
  • Works with metal, wood, plastic (*see table), and more
  • Fasteners are easily adjusted, removed and reused
  • Works on fasteners of any shape or size, from tiny eyeglass screws to large construction bolts
  • Works with internal or external threads
  • Meets low out-gassing specifications (NASA SP-R-0022A, per ASTM E 595)
  • Compatible with: ECTFE, EPDM, FEP, Nylon 6/6, PE, PEEK, PET, PFA, PP, PPS, PTFE, TFE, UHMW plastics.




Excellent shelf life
Parts coated with Vibra-Tite VC-3 can be stored indefinitely before use.
Versatile
Adheres to ferrous and non-ferrous metals, most platings, wood, and plastic (see table) screws.
Versatile
Adheres to ferrous and non-ferrous metals, most platings, wood, and plastic (see table) screws.
Multiple reuses
Steady pressure and standard hand tools allow parts coated with VC-3 to be easily adjusted, removed, and reused.
Minimizes galling / stripping
Since Vibra-Tite VC-3 remains a thick, resilient, viscous resin, its cold flow properties actually minimize the galling or stripping of soft threads during reuse.
Underwater installation
Unlike anaerobic thread lockers, VC-3 can be air dried and installed into a mating part under fresh and salt water.

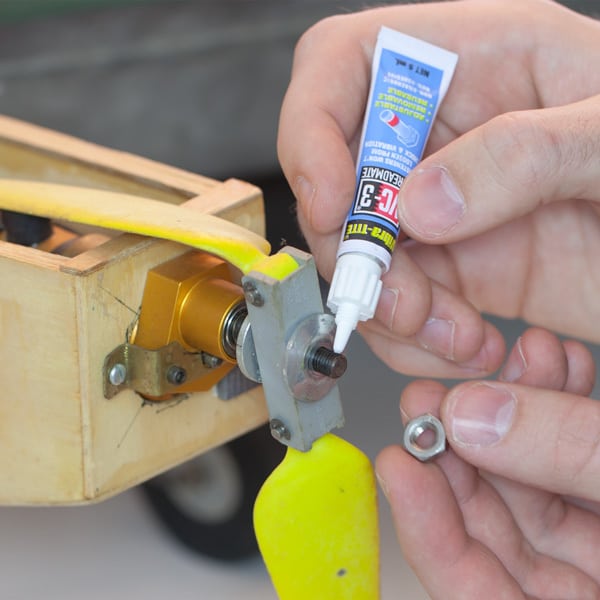

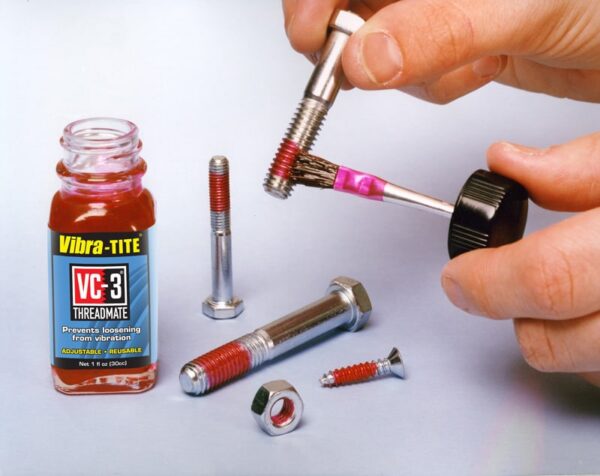

Shake well before each use. Apply VC-3, a length of 1 to 1 ½ times the fastener diameter, filling threads 30-50%. Although material will be dry to touch within minutes, allow VC-3 to dry for at least 30 minutes (the longer, the better), depending on part size. Fasteners are then ready for assembly or to be stored for later use.

  • From tiny eyeglass screws to huge construction bolts, Vibra-Tite VC-3 is ideal for fasteners of any size.
  • Mounting ski / snowboard bindings, plates and inserts.
  • RC models (Drones, Airplanes, Helicopters).
  • Bolts on motorcycles.

 Specifications:

Color Red
Solvent Methyl ethyl ketone
Cured form Resilient plastic
Shelf life Bottled: 5 Years from date of manufacture.
Applied: Indefinite.
Chemical resistance Offers resistance to most solvents (acts as a partial corrosion barrier)
Dries for use 10-30 minutes+, depending on part size.
Drying method for bulk production Best achieved using considerable airflow in addition to temperature not exceeding 130˚F
Operational temperature range -65˚F to 165˚F (-54˚C to 74˚C)
Reusability Using steady pressure and standard hand tools, parts coated with Vibra-Tite VC-3 can easily be adjusted, removed, and reused up to 5 times.
Minimizes Galling/Stripping Since Vibra-Tite VC-3 remains a thick, resilient, viscous resin, its cold flow properties minimize galling or stripping of soft threads during reuse.
Engagement torque Moderate
Breakaway torque No distinct break; slow, fluid release as material cold flows
Standard coating length 1 to 1 1/2 times the diameter
Lead thread requirement None
Thread Fill requirement 30 – 50% of the thread root area
Also Known As Vibra-Tite Formula 3

Approvals

Company Name Specification / Part Number
Allied Signal EMS73314, PCS5618
Atlanta Research SP 10234
Delphi (Delco Electronics Systems) Part No. 00047127
Detroit Diesel 9S244
General Dynamics 13233419
Grumman Aerospace GF105VP
Hazeltine Corporation DWG. 260736
Lockheed Martin 11663357, 507-13-410, LMA-ML082B, P5407, P5407-1
Meritor (Rockwell) 005-2308-010
Naval Sea Sys. Comm. 5174855
US Army Missile Comm. MIS-28867A
Leco Corporation PRINT # 764-709
Harris Corporation DWG. P30-0013
Lockheed Martin CAGE # 18876
US Army Missile Comm. P5407-1
National Stock # NSN 8030-00-163-579
