Mili Std - Switch, Sensitive | MS25253-1

Military Standard

MS25253-1

Sale price $22.56 Regular price $28.20

Shipping calculated at checkout.

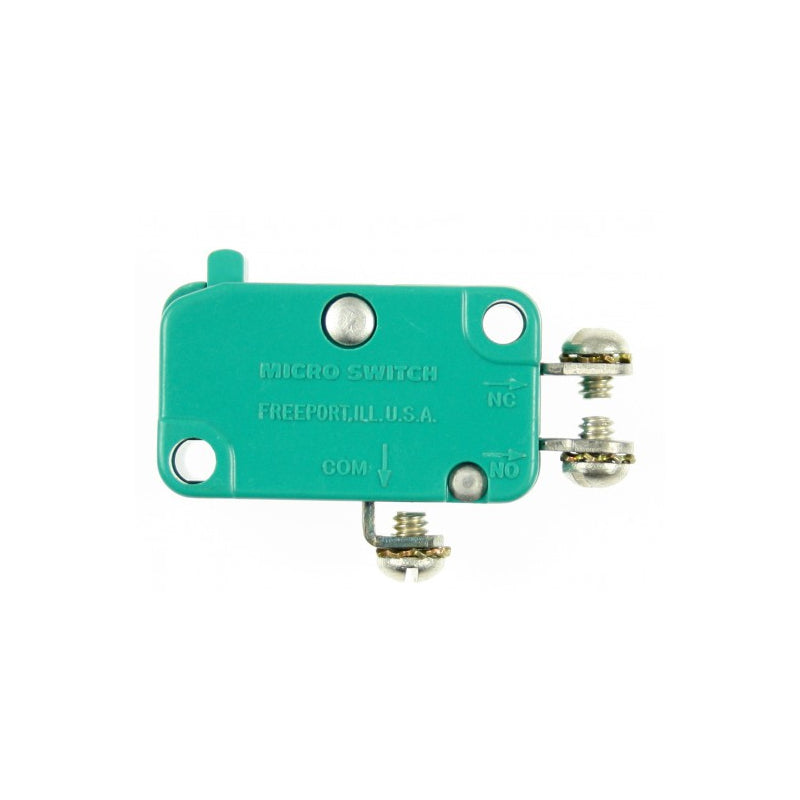

Mili Std - Switch, Sensitive | MS25253-1



  • Body Style:  Hole Mounted
  •  Hazardous Locations/Environmental Protection:  Dustproof
  •  Overall Length:  1.375 Inches Nominal
  •  Center To Center Distance Between Mounting Facilities Parallel To Length:  0.872 Inches Minimum And 0.878 Inches Maximum
  •  Overall Height:  0.875 Inches Nominal
  •  Overall Width:  0.415 Inches Maximum
  •  Body Length:  1.094 Inches Nominal
  •  Body Width:  0.415 Inches Maximum
  •  Body Height:  0.625 Inches Nominal
  •  Case Material:  Plastic
  •  Unthreaded Mounting Hole Diameter:  0.113 Inches Minimum And 0.116 Inches Maximum
  •  Center To Center Distance Between Mounting Facilities Parallel To Height:  0.403 Inches Minimum And 0.409 Inches Maximum
  •  Actuator Length:  0.110 Inches Nominal
  •  Actuator Style:  Rectangular
  •  Actuator Height:  0.020 Inches Nominal
  •  Actuator Width:  0.160 Inches Minimum And 0.170 Inches Maximum
  •  Actuator Free Position Height:  0.625 Inches Maximum
  •  Maximum Voltage Rating In Volts:  115.0 Ac And 28.0 Dc
  •  End Item Identification:  Missile Minuteman Lgm-30; Fire Control System, Mk 92 (Fcs); Aircraft,
  •  Inclosure Type:  Fully Inclosed
  •  Mounting Method:  Unthreaded Hole
  •  Nonpile-Up Contact Arrangement:  1 Pole, Double Throw, One Position Momentary Single Switch Unit
  •  Switch Release Force:  4.0 Ounces Nominal
  •  Criticality Code Justification:  Feat
  •  Switch Actuating Force:  14.0 Ounces Maximum
  •  Actuator Movement:  0.046 Pretravel Inches Maximum And 0.031 Overtravel Inches Maximum And 0.020 Differential Inches Maximum
  •  Contact Load Current Rating At Maximum Rated Voltage:  10.000 Amperes Resistive Dc And 10.000 Amperes Inductive Dc And 6.000 Amperes Motor Dc And 10.000 Amperes Resistive Ac And 10.000 Amperes Inductive Ac And 3.000 Amperes Motor Ac
  •  Special Features:  Wepaon System Essential
  •  Test Data Document:  81349-Mil-Prf-8805 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting Generaltype Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
  •  Terminal Type And Quantity:  3 Screw
