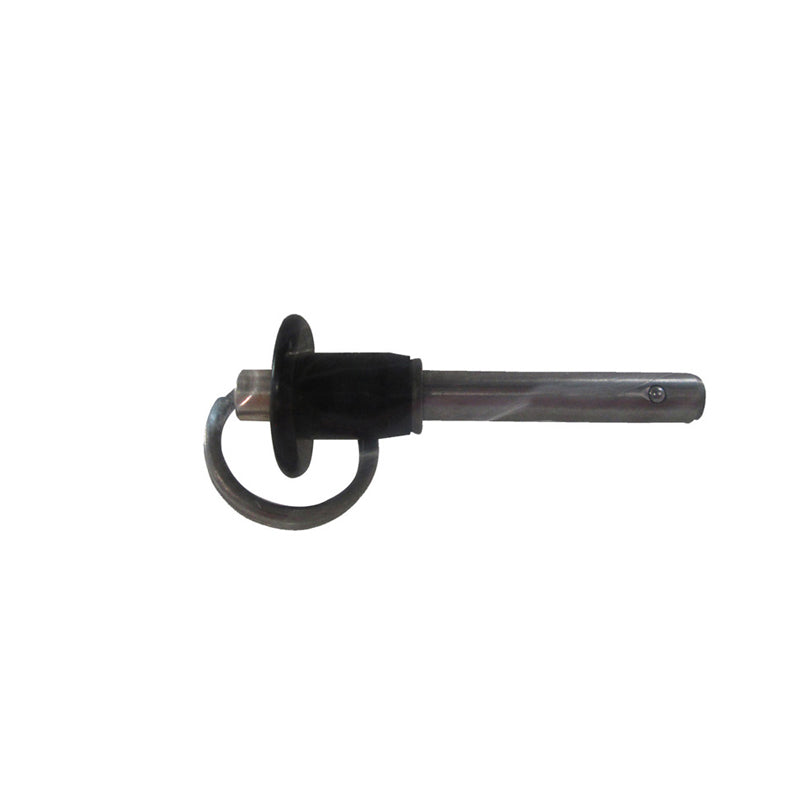

Mili Std - Pin, Quick Release - MS17984C410

Mili Std - Pin, Quick Release - MS17984C410

•  Shank Diameter:  0.2470 Inches Minimum And 0.2485 Inches Maximum
•  Button Handle Diameter:  0.720 Inches Minimum And 0.800 Inches Maximum
•  Detent Quantity:  2
•  Actuation Method:  Push Button
•  Grip Length:  1.000 Inches Minimum And 1.020 Inches Maximum
•  Actuation Type:  Push
•  Hardness Rating:  40.0 Rockwell C Minimum Spindle
•  Hardness Rating:  40.0 Rockwell C Minimum Shank
•  Shoulder To Head End Distance:  0.890 Inches Maximum
•  Pin Attachment Type:  Hook Or Ring
•  Detent To Tapered End Distance:  0.260 Inches Minimum And 0.290 Inches Maximum
•  Material:  Steel Comp 630 Spindle Or Steel Comp 632 Spindle
•  Material:  Steel Comp 630 Shank Or Steel Comp 632 Shank
•  Material Document And Classification:  Ams 5643 Assn Std 1St Material Response Spindle Or Ams 5657 Assn Std 2Nd Material Response Spindle
•  Material Document And Classification:  Ams 5643 Assn Std 1St Material Response Shank Or Ams 5657 Assn Std 2Nd Material Response Shank
•  Surface Treatment:  Passivate Spindle
•  Surface Treatment:  Passivate Shank
•  Surface Treatment Document And Classification:  Qq-P-35 Fed Spec Single Treatment Response Spindle
•  Surface Treatment Document And Classification:  Qq-P-35 Fed Spec Single Treatment Response Shank
•  Style Designator:  Button
