Chemseal - Potting & Sealant Compound MIL-PRF-8516G, 6 oz Kit | CS 3100

Flamemaster Chemseal

CS3100T2CL2KIT

Sale price $99.95 Regular price $118.60

Shipping calculated at checkout.

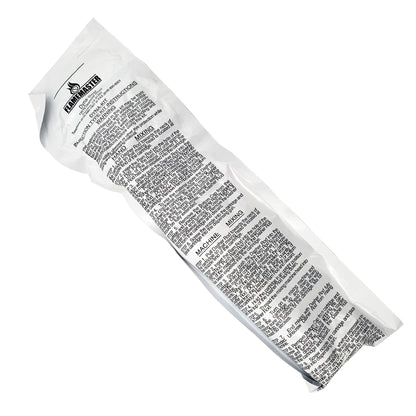

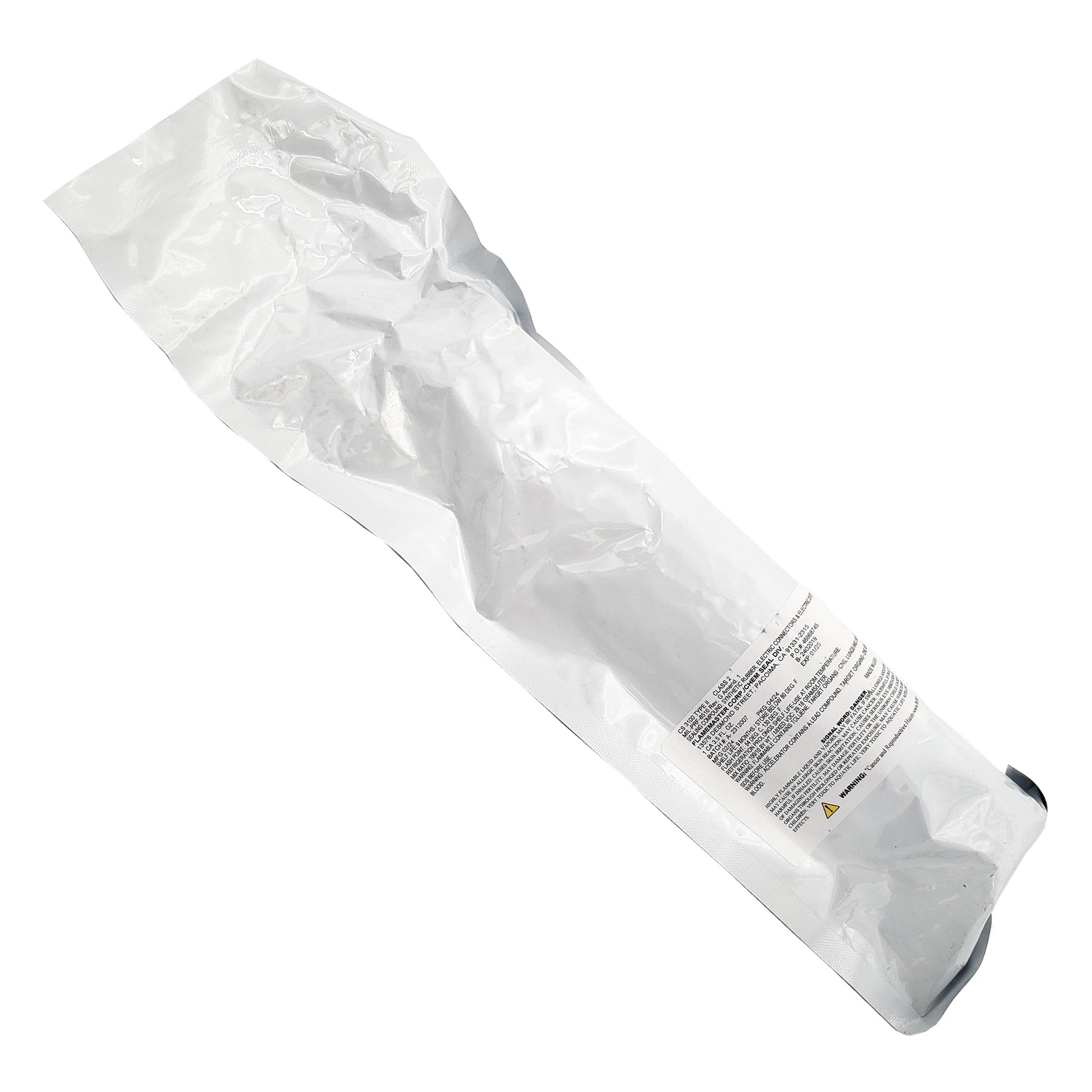

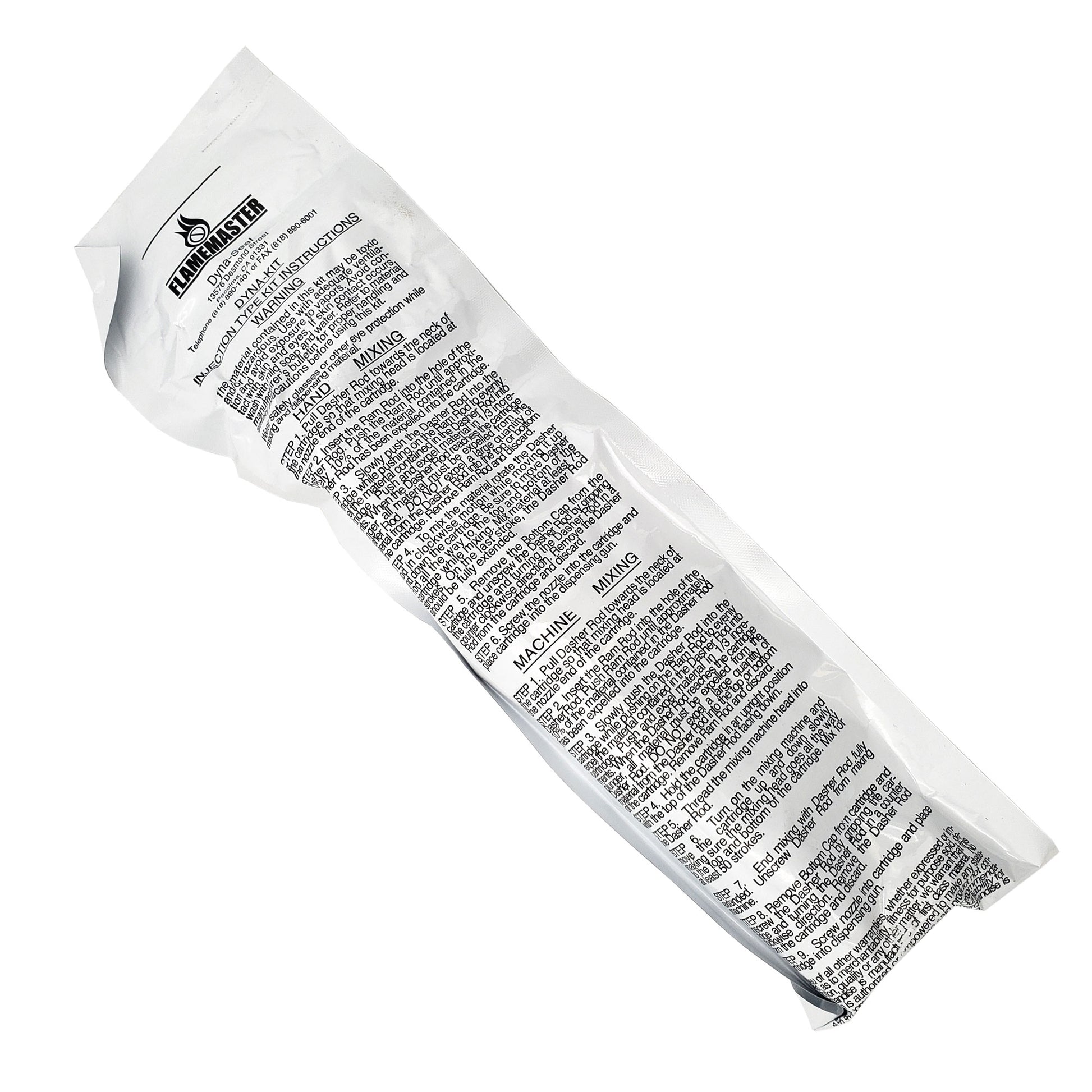

Flamemaster - Type 2 Class 2 Tan MIL-PRF-8516G Amend, 1 Spec Potting & Sealant Compound, 6 oz (3.5 fl oz) Kit | CS 3100

This two-part polysulfide component cures at room temperature to a firm, flexible rubber. CS 3100 cures by a chemical reaction that is independent of solvent evaporation or exposure to air. Proper mixing of CS 3100 is assured by the contrasting colors of the two parts.

CS 3100 is pourable and self-leveling, allowing a complete seal around wires, terminals and irregular configurations providing complete electrical insulation.

Use Chem Seal CS 3100 for potting and sealing electrical connectors and components for protection from moisture, fuels, dirt and other contaminants. CS 3100 is resistant to high humidity and known Aviation fuels.

CS 3100 is a twoΓÇÉpart polysulfide component that cures at room temperature to a firm, flexible rubber. CS 3100 cures by a chemical reaction that is independent of solvent evaporation or exposure to air. To assure proper mixing of CS 3100 the two components are contrasting colors. CS 3100 is pourable and self ΓÇÉ leveling allowing a complete seal around wires, terminals and irregular configurations providing complete electrical insulation.

Meets Mil-PRF-8516G Type I & II, Class 1, 2, & 3

Base Compound Color: White

Curing Agent Color: Red Brown

Color of Mixed Compound: Tan

Mixing Ratio (by weight): 100/10

Non Volatile Content, Min.: 95%

Viscosity (Type II): 550 poises

Application Time: 1-3 hrs.

Hardness Shore A: 40

Adhesion Peel (lbs/in of width):

Aluminum: 32
Cadmium: 31
Diallyl Phthalate: 31
Melamine: 29

Temperature Range: -65°F to +225°F

Low Temperature Flexibility: -65°F

Fungus Resistance: Non-nutrient

Vibration Resistance: Excellent

Flame Resistance Overload: Does not ignite

Flame Application: Does not drip
