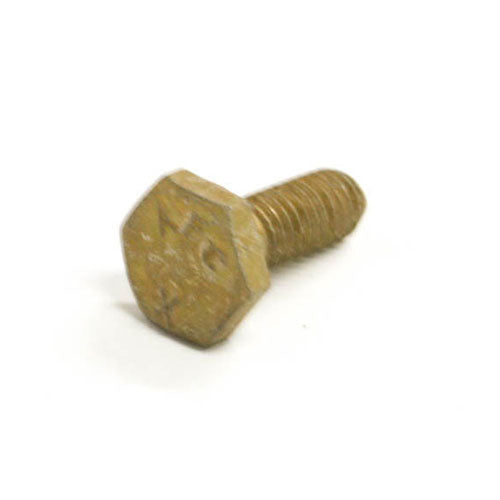

Cad Plated Hex Head Bolt, Undrilled Shank | AN3-3A

Cad Plated Hex Head Bolt, Un-Drilled Shank | AN3-3AΓÇï

• Shank
  • Un-Drilled
• Nominal Length
  • 2 25/32''
• Grip Length
  • 2 5/16''

AN3 – AN8 cadmium-plated steel bolts (drilled and undrilled). CADMIUM-PLATED BOLTS CONFORM TO QQ-P-416; CORROSIONRESISTANT STEEL BOLT CONFORMS TO MIL-B-6812. Available with or without single hole through shank and/or single hole through head. Part numbers as shown are for drilled shanks (e.g., AN3-3); for undrilled shanks, add “A” at the end of the part number (e.g., AN3-3A); for drilled heads, replace the dash with an “H” (e.g., AN3H3); for corrosion-resistant steel bolts, replace the dash with an “C” (e.g., AN3C3).
