XING2 2604 FPV Unibell Motor

iFlight

X009419

We currently have 20 available.

Sale price $24.74 Regular price $24.99

Shipping calculated at checkout.
iFlight's XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape, the internal damping ring to protect the bearing or the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We've been copied and compared all these years, but now it's time to set a new standard again! We're finally ready to announce our predecessor, the XING2!

The smooth, reliable, and powerful XING motors were upgraded, and we achieved an even higher standard in our manufacturer and better performance than ever before. New center slotted N52H curved arc magnets were introduced to reduce the response time of the motor drastically! The motor may be the biggest bottleneck of our FPV flight controller due to its translation delay of braking and acceleration. XING2 motors offer faster response, translate your PID loop quicker, and get that locked-in feeling you were always looking for!

Due to the high-quality materials used and the durable joint of the bell and shaft, we could reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current), causing more efficiency and higher power!

In early 2018 we put o-rings on the top of our bearings between the motor bell and stator. This acts as an absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those vibrations induced by high RPMs! It can also reduce the axial impact force just enough to keep your bearings smooth and quiet. All our experience, high-quality 7075 bells, O-ring bearing protection, and all the other features you've just seen on your original XING series are still inbuilt in a new shape and design!

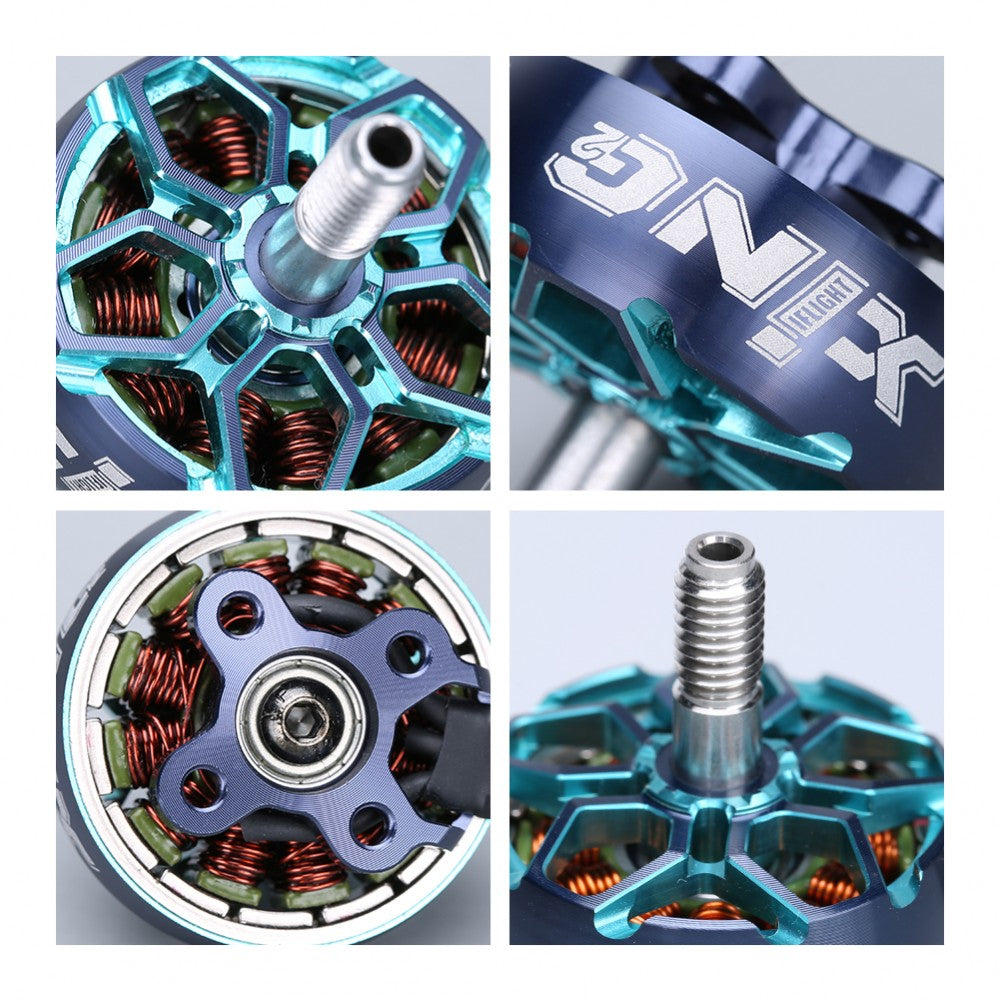

Features:
  • 5mm titanium alloy shaft, our strongest prop shaft ever!
  • Crash-resistant 7075 aluminum bell
  • Smooth and long-lasting NSK 9x4x4 bearings
  • Center slotted N52H curved arc magnets
  • XING O-ring bearing gap protection
  • Motor wires protector
  • Dynamically balanced
Specifications:
  • Model: XING2 2604
  • KV: 1800KV or 1950KV (optional)
  • Typical setup: 1800KV/1950KV, 6S battery, 5inch propeller
  • Prop shaft: CW thread
  • Recommended input voltage Voltage: 4S-6S (16V-26V)
  • Configuration: 12N14P
  • Stator Diameter: 26mm
  • Stator Length: 4.5mm
  • Shaft Diameter: 5mm
  • Weight: 32.1g with short wires
  • Wires: 20AWG 160mm
  • Mounting pattern: 16*16*3mm

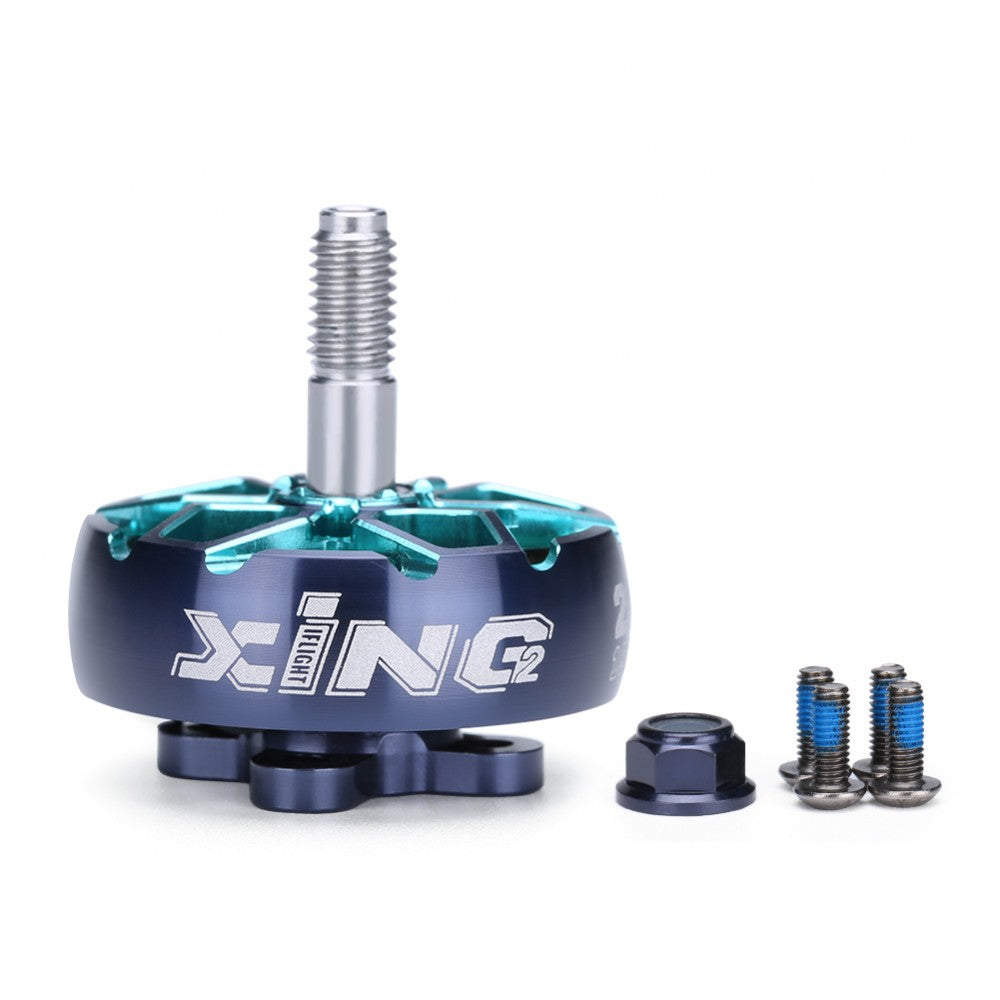

Package includes:
  • 1x XING2 2604 Brushless Motor
  • 4x M3x8 screws
  • 1x Prop nut
  • NOTE: Propellers are not included!
