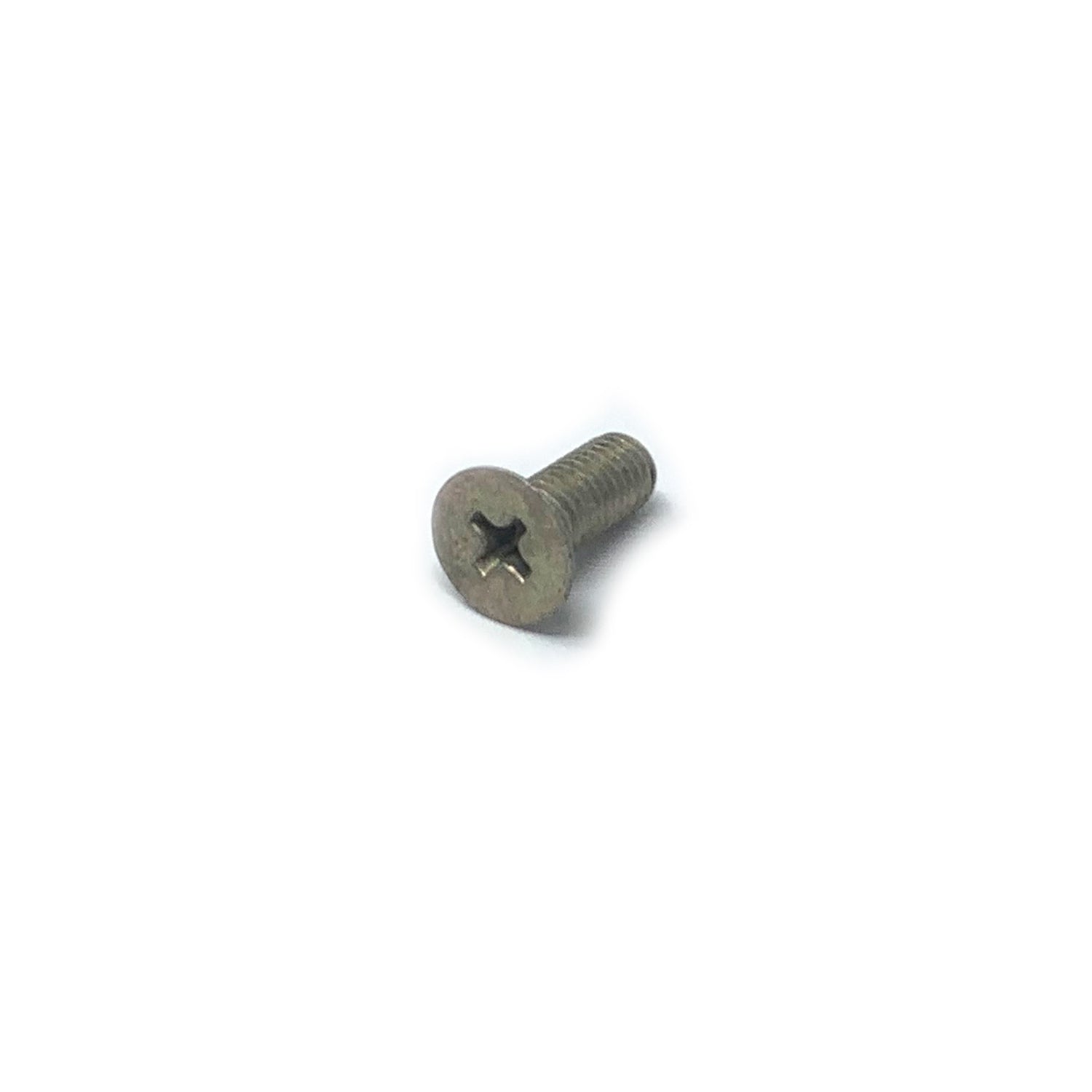

Steel Aircraft Machine Screws | MS24693-C272
Hardware - Misc
MS24693C272
We currently have 197 available.
Sale price
$0.32
Regular price
$0.40
Length: 1/2", Thread: 10-32, flat head
- NSN: 5305-00-051-0227
- Thread Qty Per Inch (tpi): 32
- Thread Series Designator: Unf (fine thread)
- Thread Direction: Right-hand
- Thread Length: Between 0.438" and 0.50"
- Thread Diameter: 0.190"
- Thread Class: 2a
- Screw Surface Treatment: Passivate
- Screw Material Specification: 66 federal standard all material responses
- Screw Material: Steel comp
- Min. Tensile Strength (psi): 80000 pounds per square inch
- Internal Drive Style: Cross recess type 1
- Head Style: Flat countersunk
- Head Diameter: Between 0.333" and 0.38"
- Fastener Length: 0.500 inches
- Countersink Angle: Between 99.0 degrees and 101.0 degrees
