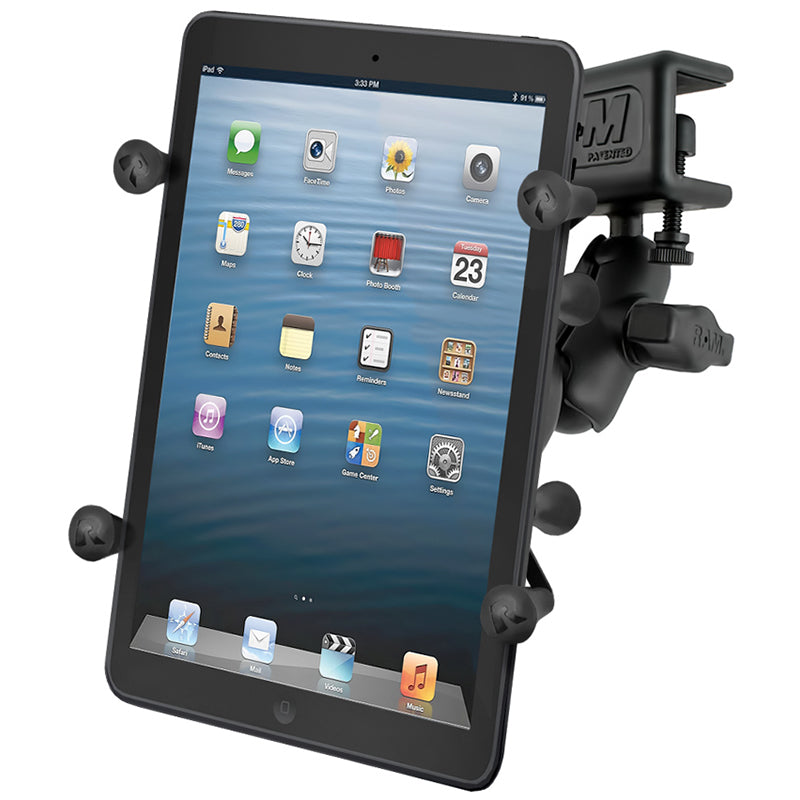

The RAM-B-177-UN8U consists of a glare shield clamp base, double socket arm and universal spring loaded X-Grip® II holder for 7" tablets. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® II holder expands and contracts, allowing for a perfect custom fit of your 7" tablet. Included are extra easy access grip knobs, located on the back of the holder for quick release of your tablet.
X-Grip® II Holder Dimensions:
Minimum Width = 2.25"
(Devices 2.25" in width must be a minimum of 7" in height to fit)
Maximum Width = 5.75"
Depth = 0.875"
This product will attach to flat surfaces with the following dimensions:
Min: 4.4mm / 0.17"
Max: 28.0mm / 1.12"
High Strength Composite & Powder Coated Marine Grade Aluminum
Ball Size: 1" Rubber Ball "B" Size
The "U" in the part number reflects product packaged in poly bag.
