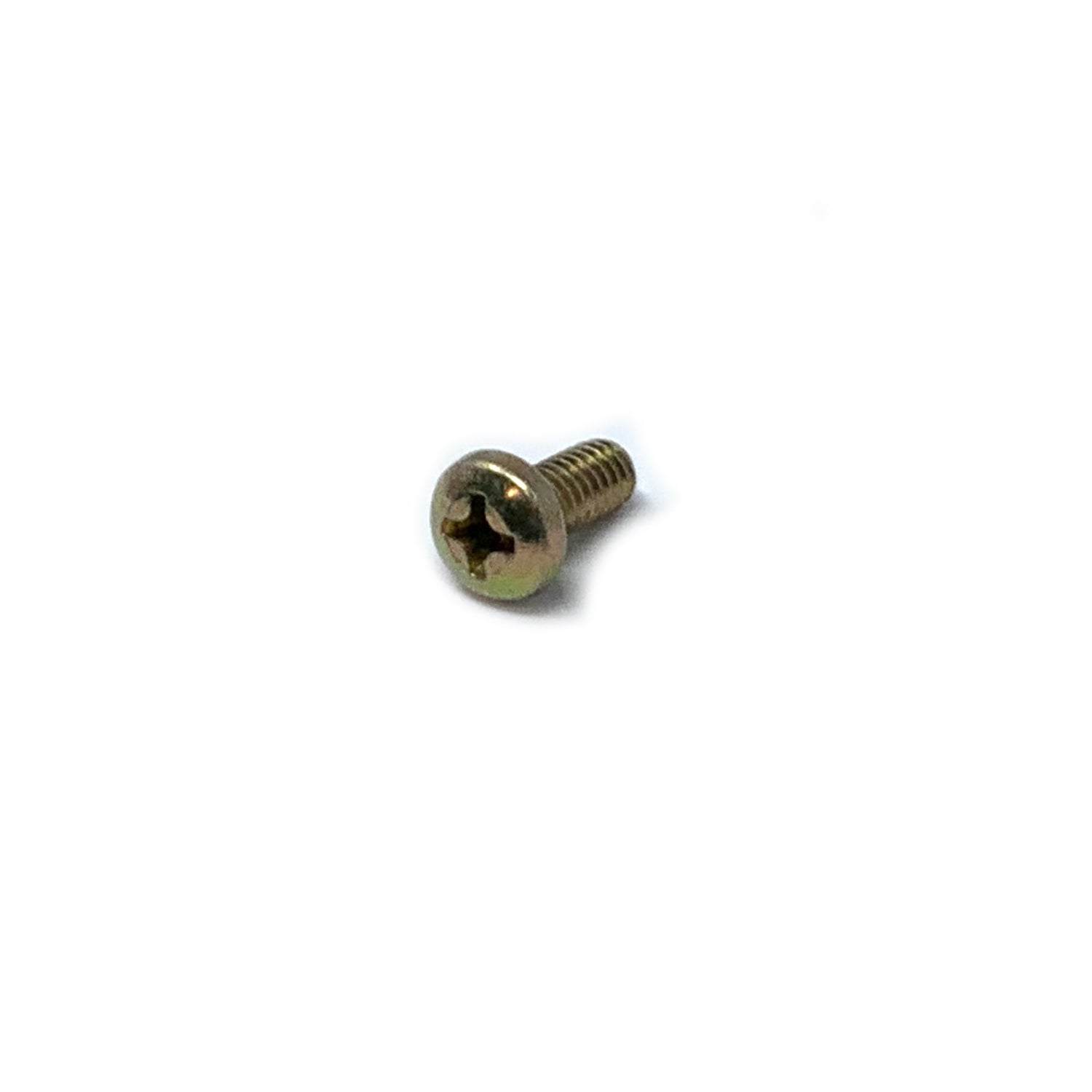

Pan Head Aircraft Machine Screw | MS35206-243
Hardware - Misc
MS35206-243
We currently have 100 available.
Sale price
$0.09
Regular price
$0.14
Length: 3/8", thread: 8-32, pan head, cadmium plated carbon steel, coarse thread, MS35206 series screw.
- NSN: 5305-00-984-6191
- Thread Class: 2a
- Screw Surface Treatment Specification: QQ-P-416 type 2 cl 3 federal specification single treatment response
- Screw Surface Treatment: Cadmium and chromate
- Screw Material Specification: QQ-S-633 federal specification single material response
- Screw Material: Steel
- Min. Tensile Strength (psi): 60000 pounds per square inch
- Head Style: Pan
- Internal Drive Style: Cross recess type 1
- Head Height: Between 0.105" and 0.11"
- Head Diameter: Between 0.306" and 0.322"
- Fastener Length: Between 0.344" and 0.375"
- Thread Diameter: 0.164 inches
- Thread Direction: Right-hand
- Thread Length: Between 0.282" and 0.37"
- Thread Qty Per Inch (tpi): 32
- Thread Series Designator: Unc (coarse thread)
