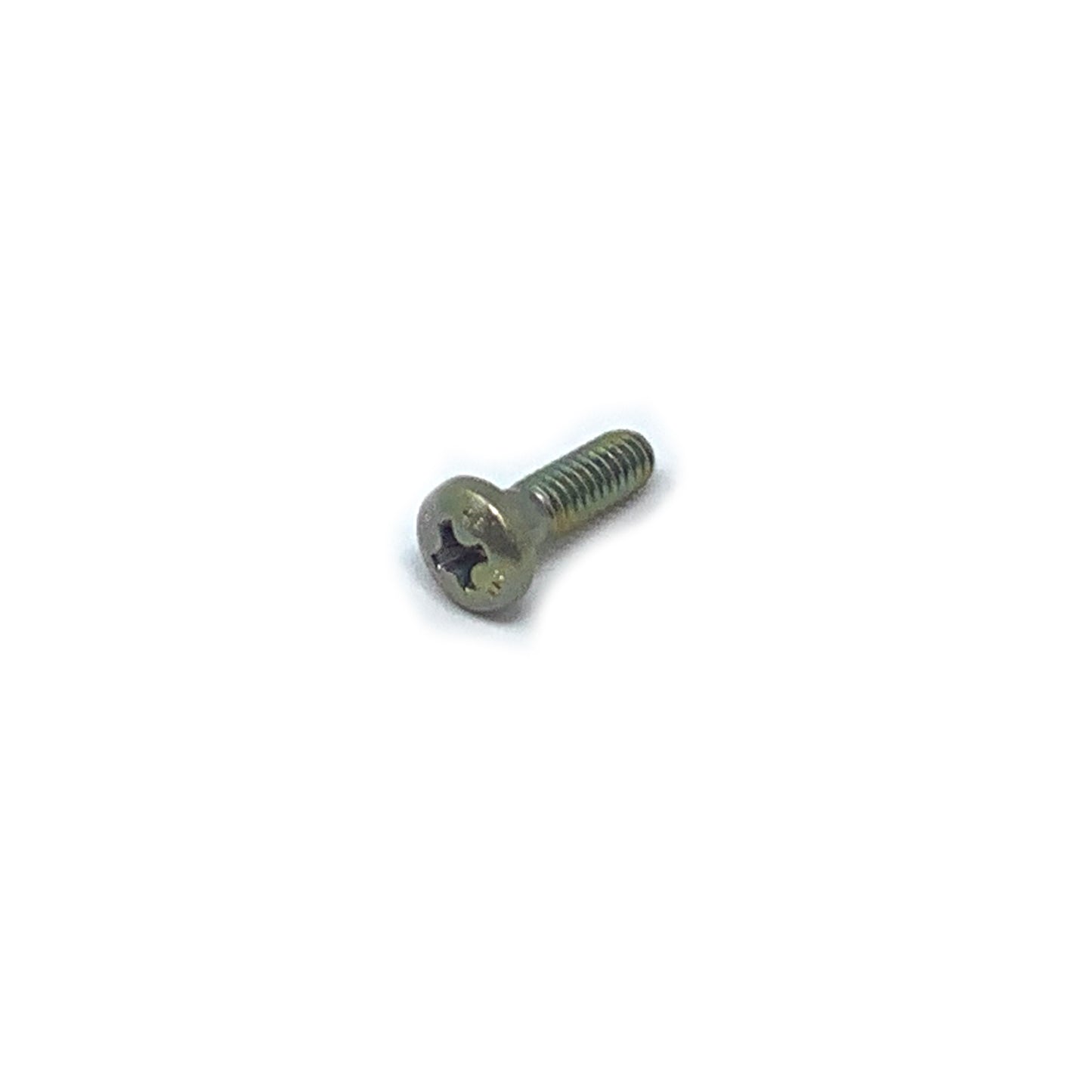

Pan Head Aircraft Machine Screw | MS27039-0808
Misc. Hardware
MS27039-0808
We currently have 135 available.
Sale price
$0.22
Regular price
$0.36
Military Standard Aircraft Machine Screw Length: 0.531", Grip: 0.094", Thread: 8-32, Pan head, structural, cadmium plated steel, MS27039 series screw
- NSN: 5305-00-921-0918
- Thread Series Designator: Unc (coarse thread)
- Thread Length: Between 0.345" and 0.484"
- Thread Qty Per Inch (tpi): 32
- Thread Diameter: 0.164"
- Thread Direction: Right-hand
- Screw Surface Treatment Specification: Class 3 federal specification all treatment responses type 2 qq-p-416
- Thread Class: 3a
- Screw Surface Treatment: Cadmium and chromate
- Screw Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
- Min. Tensile Strength (psi): 125000 pounds per square inch
- Screw Material: Steel comp 8630 or steel comp 4037
- Head Style: Pan
- Internal Drive Style: Cross recess type 1
- Head Height: Between 0.105" and 0.11"
- Head Diameter: Between 0.306" and 0.322"
- Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
- Fastener Length: Between 0.51" and 0.56"
