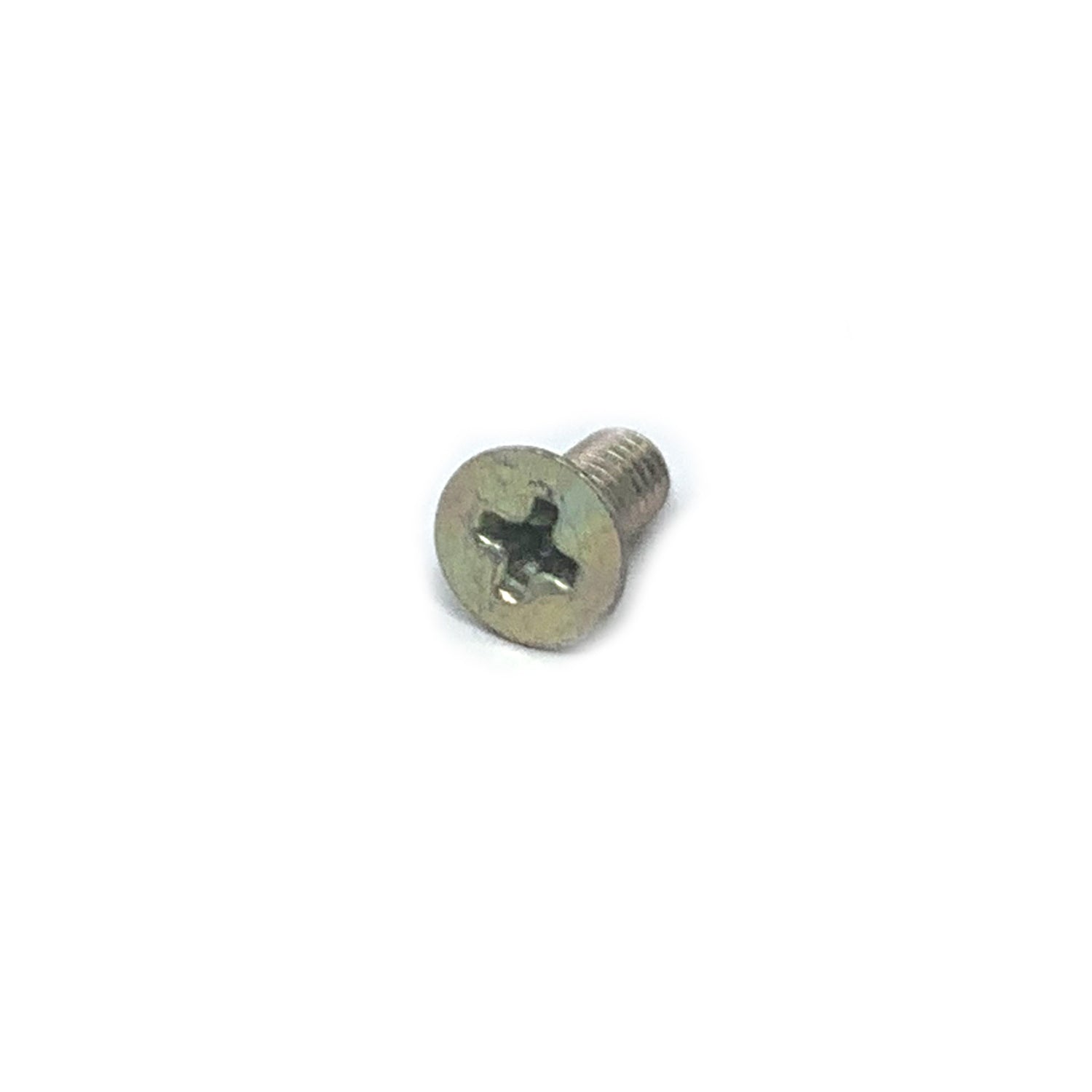

Aircraft Machine Screw Countersunk, Flat Head | MS24693S48

Aircraft Machine Screw Length: 3/8", thread: 8-32, countersunk, flat head, cadmium plated carbon steel, MS24693 series screw

• NSN: 5305-00-957-7814
• Countersink Angle: Between 99.0 degrees and 101.0 degrees
• Fastener Length: 0.375 inches
• Head Diameter: Between 0.285 inches and 0.332 inches
• Head Style: Flat countersunk
• Internal Drive Style: Cross recess type 1
• Min. Tensile Strength (psi): 60000 pounds per square inch
• Thread Diameter: 0.164 inches
• Screw Material: Steel comp 1010
• Screw Material Specification: 66 federal standard single material response
• Screw Surface Treatment: Cadmium and chromate
• Screw Surface Treatment Specification: Cl 3 federal specification single treatment response type 2 qq-p-416
• Thread Class: 2a
• Thread Direction: Right-hand
• Thread Length: Between 0.313 inches and 0.375 inches
• Thread Qty Per Inch (tpi): 32
• Thread Series Designator:Unc (coarse thread)
