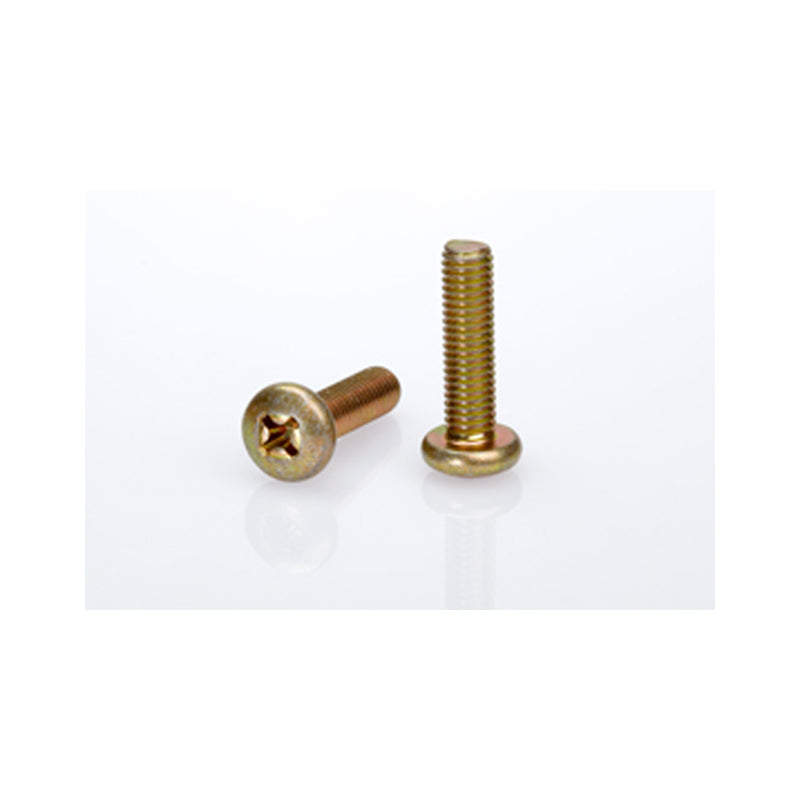

Mili Std - Steel Screw, Machine | MS35207-265

Military Standard

MS35207-265

Regular price $0.22

Shipping calculated at checkout.

Mili Std - Steel Screw, Machine | MS35207-265

  •  Thread Class:  2A
  •  Thread Direction:  Right-Hand
  •  Thread Length:  0.657 Inches Minimum And 0.750 Inches Maximum
  •  Fastener Length:  0.719 Inches Minimum And 0.750 Inches Maximum
  •  Head Style:  Pan
  •  Head Diameter:  0.357 Inches Minimum And 0.373 Inches Maximum
  •  Head Height:  0.122 Inches Minimum And 0.133 Inches Maximum
  •  Internal Drive Style:  Cross Recess Type 1
  •  End Item Identification:  Acf; A4N; Abm; Auf; Aga; Atf; 95A; Byn; Aun; Ahn; Rg-33 Mrap
  •  Nominal Thread Diameter:  0.190 Inches
  •  Thread Quantity Per Inch:  32
  •  Minimum Tensile Strength:  55000 Pounds Per Square Inch
  •  Screw Material:  Steel Comp 1010 Or Steel Comp 1011 Or Steel Comp 1013
  •  Screw Material Document And Classification:  66 Fed Std All Material Responses
  •  Screw Surface Treatment:  Cadmium And Chromate
  •  Screw Surface Treatment Document And Classification:  Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response
  •  Thread Series Designator:  Unf
