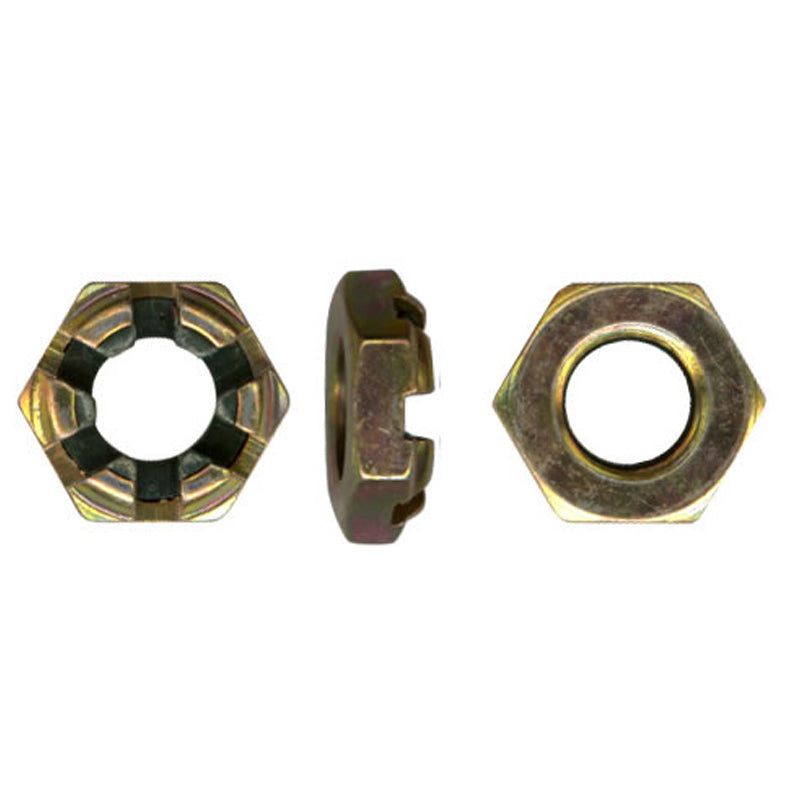

Mili Std - Steel Nut, Self Locking, Slotted, Hexagon | MS17825-4

Military Standard

MS17825-4

Sale price $4.85 Regular price $6.06

Shipping calculated at checkout.

Mili Std - Steel Nut, Self Locking, Slotted, Hexagon | MS17825-4

  • Thread Class : 3B
  • Thread Direction : Right-Hand
  • Locking Feature : Prevailing Torque With Nonmetallic Insert
  • Nut Style : Slotted, Hexagon
  • Nut Height : 0.266 Inches Minimum And 0.296 Inches Maximum
  • Width Across Flats : 0.430 Inches Minimum And 0.439 Inches Maximum
  • Temp Rating : 250.0 Deg Fahrenheit Nominal
  • Thread Series : Unjf
  • Thread Quantity Per Inch : 28
  • Nominal Thread Size : 0.250 Inches
  • Bearing Surface Type : Washer Faced
  • Material : Plastic Polyamide Locking Insert
  • Material : Steel Nut
  • Surface Treatment : Cadmium Overall Except Insert And Chromate Overall Except Insert
  • Surface Treatment Document And Classification : Qq-P-416,Type 2,Class 2 Fed Spec Single Treatment Response Overall Except Insert
