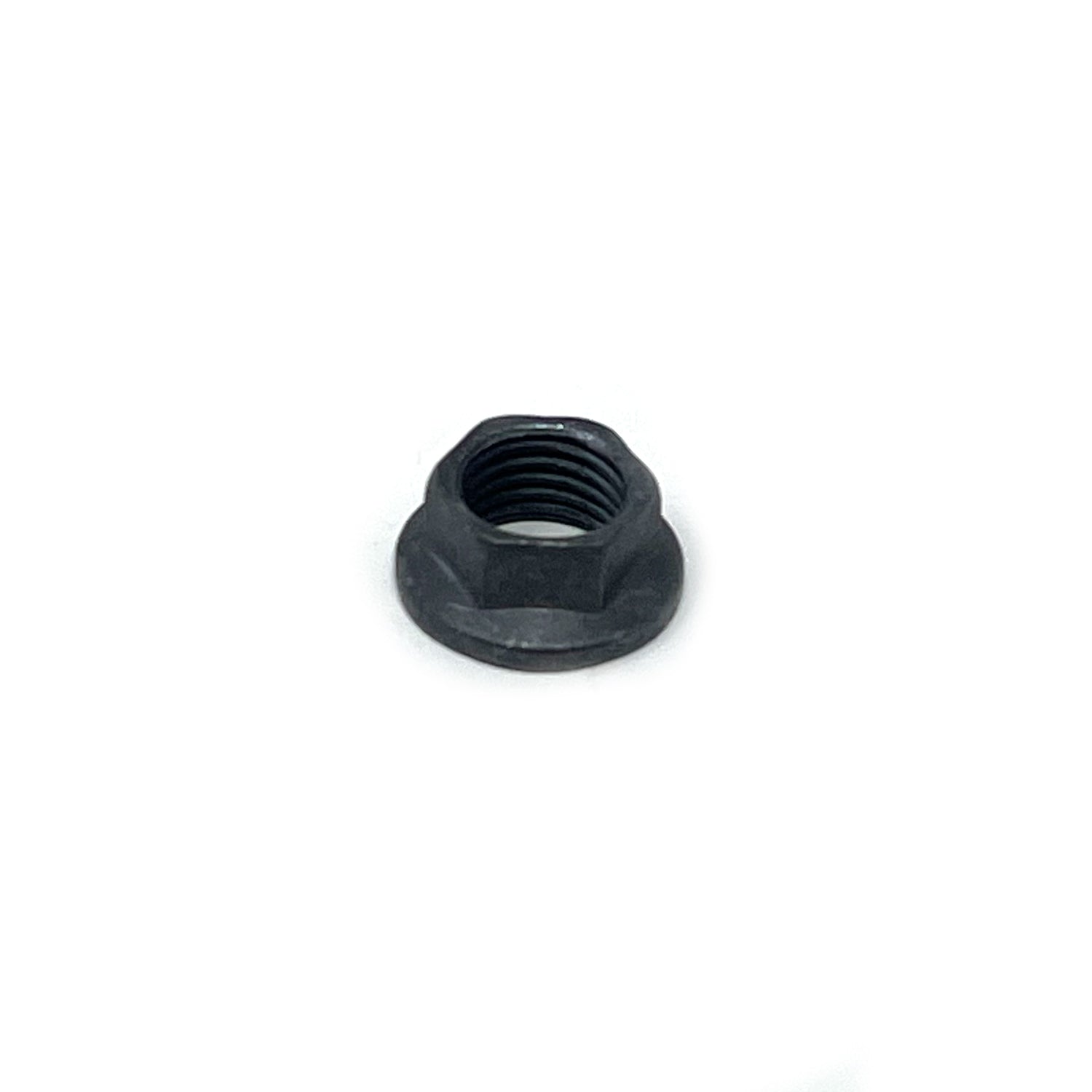

Mili Std - Steel Dry Film Coated Nut, Self-Locking, Extended Washer, Hexagon | MS21042L6

Military Standard

We currently have 26 available.

Sale price $0.79 Regular price $0.82

Shipping calculated at checkout.

Mili Std - Steel Dry Film Coated Nut, Self-Locking, Extended Washer, Hexagon | MS21042L6

  • Thread Class:  3B
  •  Thread Direction:  Right-Hand
  •  Locking Feature:  Prevailing Torque All Metal Design
  •  Washer Outside Diameter:  0.620 Inches Maximum
  •  Lubrication:  Dry Film Lubricant
  •  Overall Height:  0.267 Inches Minimum And 0.282 Inches Maximum
  •  Nut Style:  Hexagon
  •  Washer Thickness:  0.030 Inches Minimum
  •  Width Across Flats:  0.430 Inches Minimum And 0.440 Inches Maximum
  •  Temp Rating:  450.0 Deg Fahrenheit Nominal
  •  Thread Series:  Unjf
  •  Thread Quantity Per Inch:  24
  •  Nominal Thread Size:  0.375 Inches
  •  Material:  Steel Overall
  •  Surface Treatment:  Cadmium Overall And Chromate Overall
  •  Surface Treatment Document And Classification:  Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
  •  Specification/Standard Data:  26512-GN10U Manufacturers Standard
