Mili Std - Stainless Steel Screw, Machine | MS24694C54

Military Standard

MS24694C54

We currently have 80 available.

Sale price $0.42 Regular price $0.52

Shipping calculated at checkout.

Mili Std - Stainless Steel Screw, Machine | MS24694C54

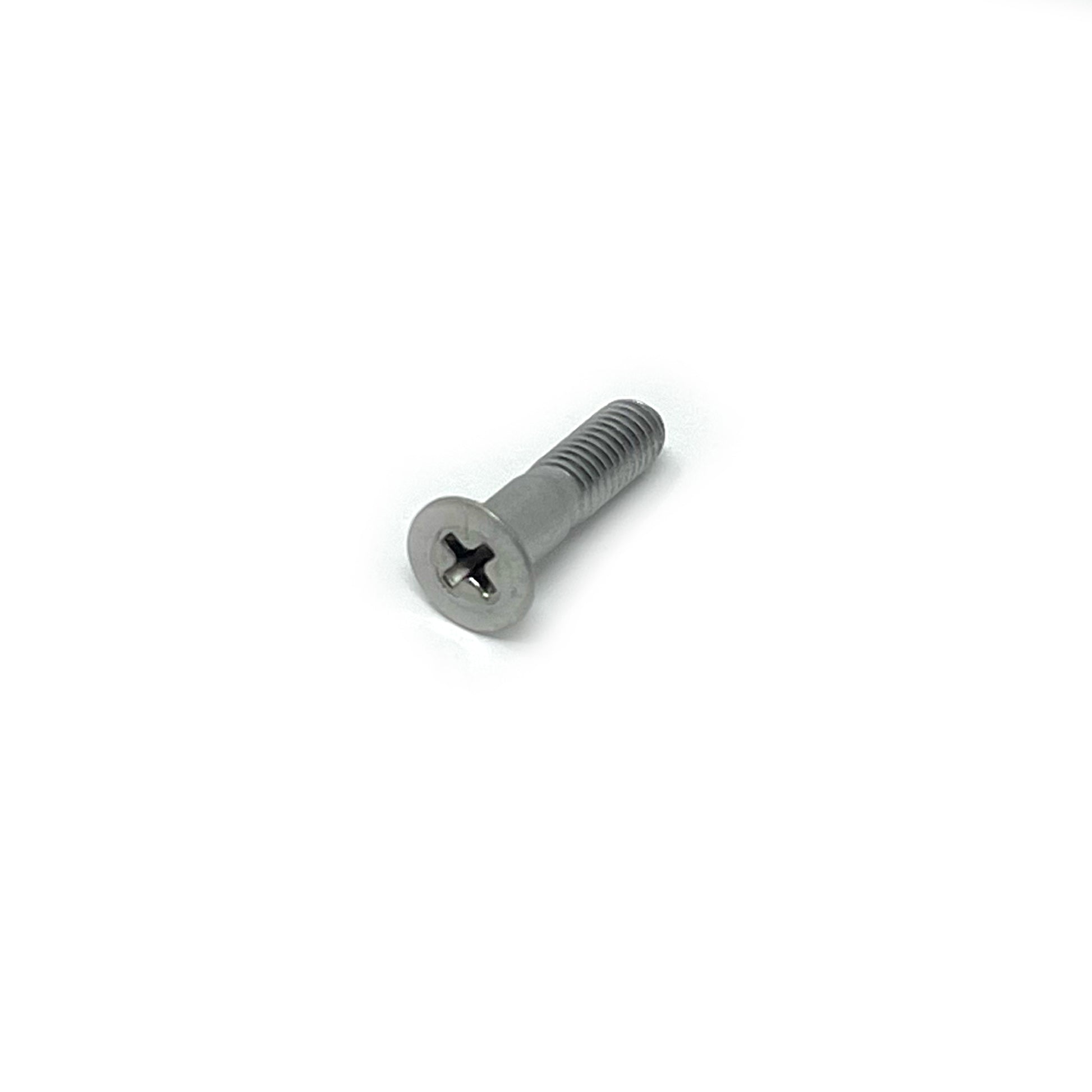

MS24694C54, as the name suggests, is a machine screw with a countersunk head. It is made of corrosion resistant steel (CRES) and has a passivated finish. Check the features for more information.

Specifications

  • Thread Class: 3A
  • Thread Direction: Right-Hand
  • Thread Length: 0.376 Inches Minimum And 0.516 Inches Maximum
  • Fastener Length: 0.766 Inches Minimum And 0.812 Inches Maximum
  • Head Style: Flat Countersunk
  • Head Diameter: 0.327 Inches Minimum And 0.385 Inches Maximum
  • Internal Drive Style: Cross Recess Type 1
  • Nominal Thread Diameter: 0.190 Inches
  • Thread Quantity Per Inch: 32
  • Minimum Tensile Strength: 85000 Pounds Per Square Inch
  • Countersink Angle: 99.0 Degrees Minimum And 101.0 Degrees Maximum
  • Screw Material: Steel Comp 302 Or Steel Comp 304
  • Screw Material Document And Classification: 66 Fed Std All Material Responses
  • Screw Surface Treatment: Passivate
  • Screw Surface Treatment Document And Classification: Qq-P-35 Fed Spec Single Treatment Response
  • Thread Series Designator: Unf
