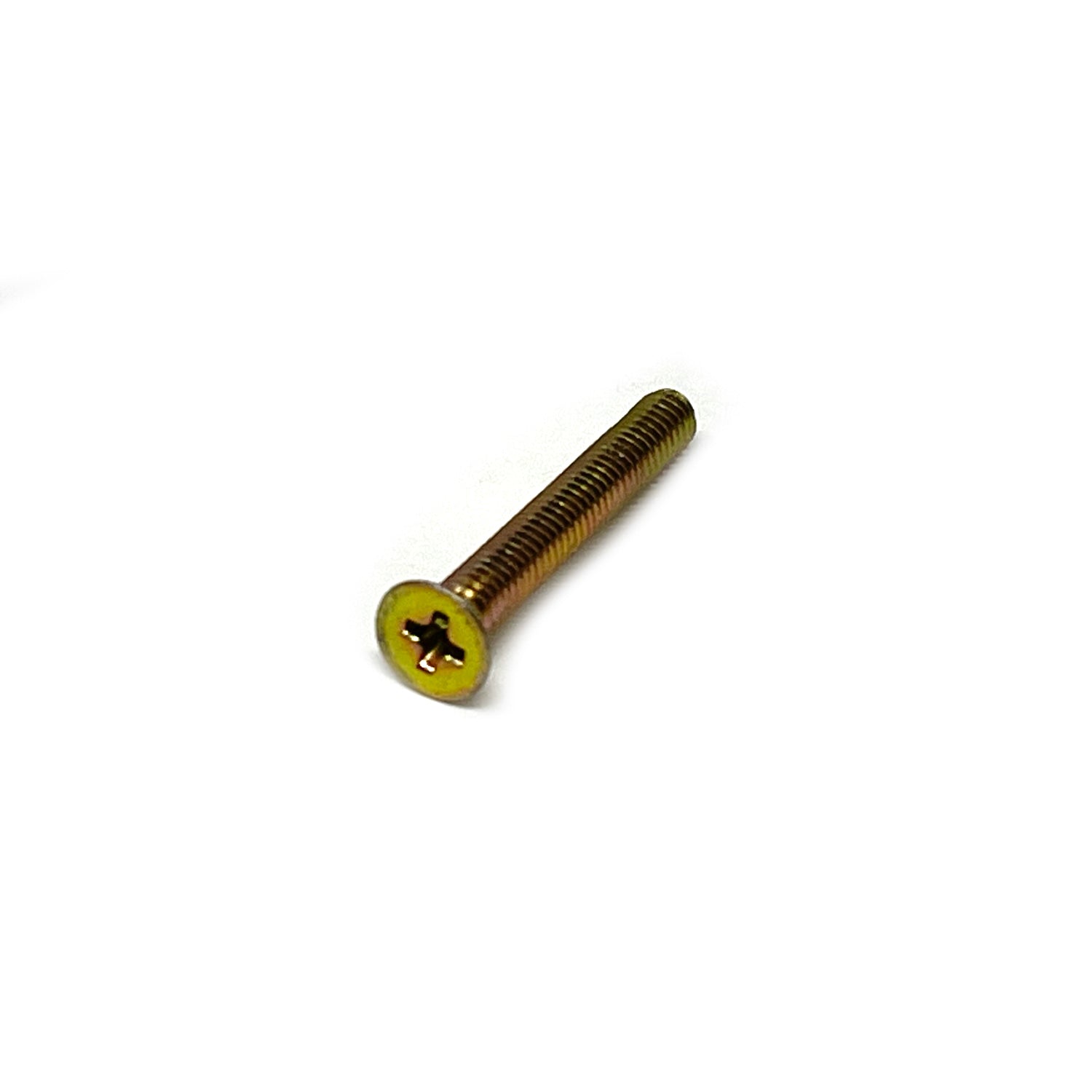

Mili Std - Carbon Steel Screw, Machine | MS24693-S47

Military Standard

MS24693S47

Sale price $0.22 Regular price $0.28

Shipping calculated at checkout.

Mili Std - Carbon Steel Screw, Machine | MS24693-S47

Description

  •  Thread Class:  2A
  •  Thread Direction:  Right-Hand
  •  Thread Length:  0.250 Inches Minimum And 0.312 Inches Maximum
  •  Fastener Length:  0.281 Inches Minimum And 0.312 Inches Maximum
  •  Head Style:  Flat Countersunk
  •  Head Diameter:  0.285 Inches Minimum And 0.332 Inches Maximum
  •  Internal Drive Style:  Cross Recess Type 1
  •  Nominal Thread Diameter:  0.164 Inches
  •  Thread Quantity Per Inch:  32
  •  Minimum Tensile Strength:  60000 Pounds Per Square Inch
  •  Countersink Angle:  99.0 Degrees Minimum And 101.0 Degrees Maximum
  •  Screw Material:  Steel Comp 1010
  •  Screw Material Document And Classification:  Qq-S-630 Fed Spec Single Material Response Or Qq-S-631 Fed Spec Single Material Response Or Qq-S-634 Fed Spec Single Material Response
  •  Screw Surface Treatment:  Cadmium And Chromate
  •  Screw Surface Treatment Document And Classification:  Qq-P-416 Ty 2 Cl 3 Fed Spec All Treatment Responses
  •  Thread Series Designator:  Unc
