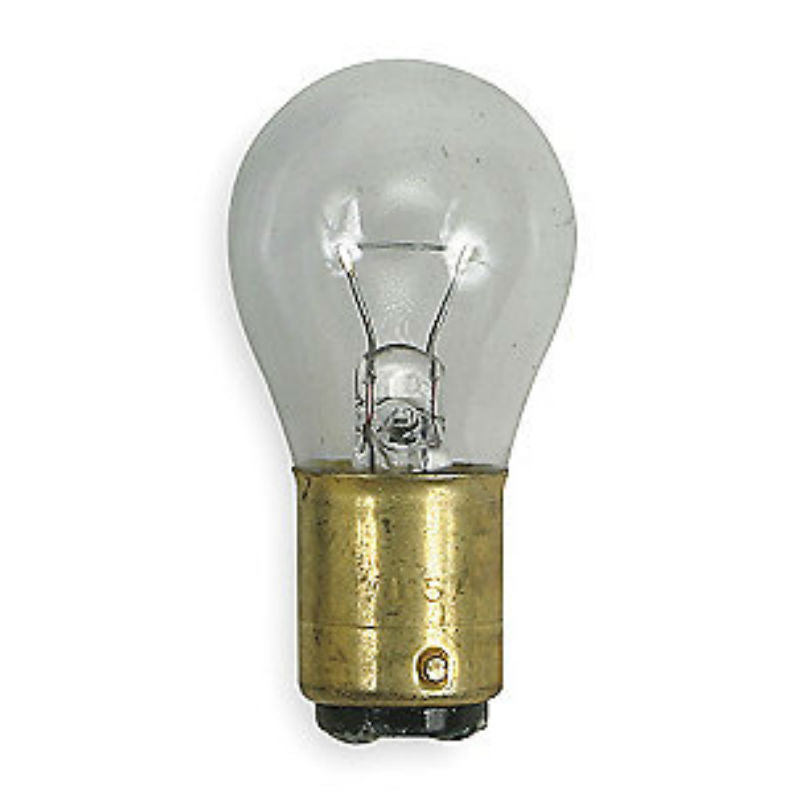

GE Incandescent Lamp: 12.8v,13w | 94 | 25829

GE Incandescent Lamp: 12.8v,13w | 94 | 25829

GENERAL CHARACTERISTICS
Lamp type    Miniature - S Shape
Bulb    S8
Base     Double Contact Bayonet (BA15d)
Primary Application     Low Voltage; Back up; Dome; Instrument, General; Parking; Sidemarker, Front; Step/Courtesy
Filament    C-6
Rated Life    700 hrs
Bulb Material    Lead glass
Atmosphere    Gas-filled

PHOTOMETRIC CHARACTERISTICS
Initial Lumens    188
Nominal Initial Lumens per Watt    14
Mean Spherical Candlepower (MSCP)    15

ELECTRICAL CHARACTERISTICS
Wattage    13
Voltage    13

DIMENSIONS
Maximum Overall Length (MOL)     2.0000 in (50.8 mm)
Bulb Diameter (DIA)     1.0000 in (25.4 mm)
Light Center Length (LCL)     1.1200 in (28.4 mm)

PRODUCT INFORMATION
Product Code    25829
Description    94
ANSI Code    94
Standard Package    Case
Standard Package GTIN    00043168258296
Standard Package Quantity    50
Sales Unit    Unit
No Of Items Per Sales Unit    1
No Of Items Per Standard Package    50
UPC    043168963497
