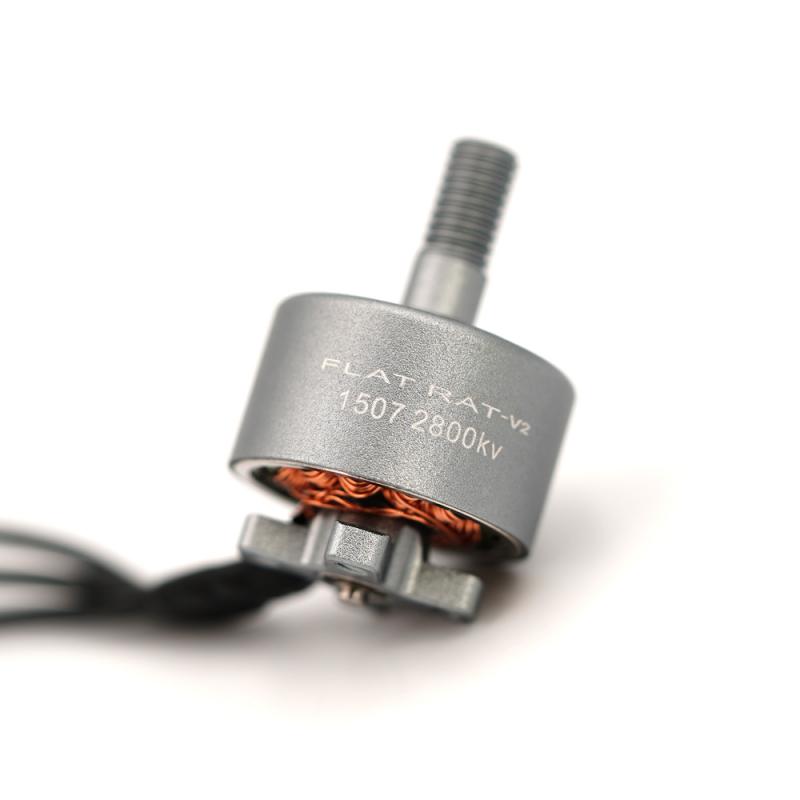

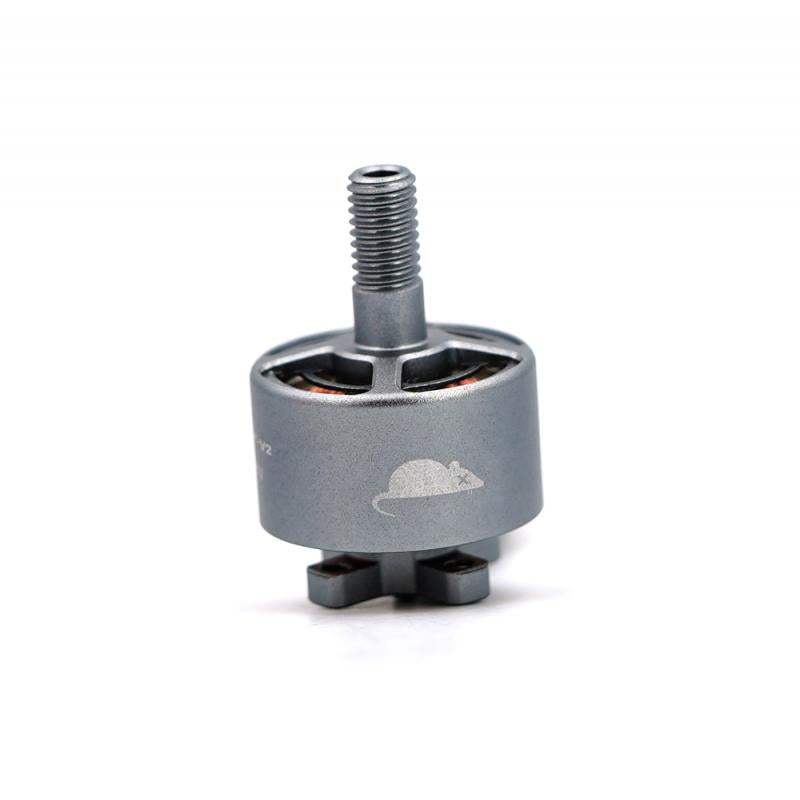

Ethix Flat Rats V2 1507 2800Kv

Flat Rat V2 motors take a twist off the previous model but add a little more power to your existing package and new unibell design. Realizing that flight times needed to be increased with the weight of newer HD camera options getting bigger we decided to go with a higher kv winding to increase the thrust but still keep the motor as smooth as possible to achieve more time to get that buttery cinematic footage on your 3” cine frames. Having more power gives you better control and stability in small frames. 6s capable and available in both t-mount and 5mm shaft options.

SPECIFICATIONS

• Stator Size (Diameter): φ15mmx7φ15mmx7
• Kv: 2800
• Magnets N52SH: Curved
• Windings: 13.5 turn DLRK
• Shaft Length (mm): 12.5mm 12.5mm
• Shaft Diameter (mm): 2mm
• Shaft material: steel
• Bearing: 4*2*2.5
• Weight (With Wires) (g): 15.8g
• Cells (Lipo): 6S
• Max Current (A): 15A
• Max Burst Current (A): 20A
• Internal Resistance (Rm): 0.23mΩ
• Wire Spec (AWG): AWG 24#
• Base Mounting Pattern: 12x12mm
• Base Mounting Thread: M2 Thread
• Motor Overall Dimensions: φ19.8mmx17.5mm
