Lamar Techologies Power Products CA-1550 portable Aircraft Battery Charger / Analyzer is a combination portable charger and analyzer for all types and ratings of Nickel Cadmium sealed or vented and Lead Acid aircraft batteries

The CA-1550 Aircraft Battery Charger / Analyzer requires No Programming

The CA-1550 CML Charger/Analyzer is a portable or bench-mounted self-contained unit for charging and discharging capacity testing aircraft or ground support batteries. It is simple to use and does not require programming or use of a computer. Digital read-outs of volts, amperes and time are clearly displayed. The CA-1550 CML has been designed to accurately charge, test and guarantee the emergency capacity of sealed or vented lead-acid or nickel-cadmium batteries. Guaranteed emergency capacity is especially important for aircraft batteries.

The CA-1550 Aircraft Battery Charger / Analyzer has a Wide Variety of Uses

The CA-1550 Aircraft Battery Charger comes in a convenient protective carrying case. The flexibllity of charge and discharge functions of the CA-1550 CML makes it usable for a wide variety of batteries. The unit accurately charges and tests 12 or 24 volt lead-acid batteries as well as nickel-cadmium batteries from a single cell to 22 cells.

The CA-1550 Aircraft Battery Charger / Analyzer Charges and Discharges

The charge section of the CA-1550 CML allows charging at both constant potential or constant current to give maximum flexibility in selection of charge method. The charger has an adjustable charge current from 0 to 25 amperes, and an automatic times to read and/or terminate charge and discharge time.

The discharge section of the CA-1550 CML enables battery capacity testing with a constant current of 0-50 amperes. The unit automatically measures the battery voltage and passes or fails the battery depending on the battery's ability to maintain the specified minimum voltage for the pre-settable time, (usually one hour). All meters "freeze" their readings at the end of test and the operator thereby knows the precise ampere hour capacity of the battery. The CA-1550 CML will then recharge the battery after the cap test.

Power Products - Aircraft Battery Charger Combo Product Specifications:

Model #: CA-1550-CML
Manufacturer's P/N: 4159
Alt P/N's: CA-1550, CA-1550-CML, CA1550CML,CA1550,4159
NSN : 6130-01-558-8647
Charge current: Adjustable from 0-25 amps
Discharge current: Adjustable from 0-50 amps, Digital voltmeter, ammeter & timer
DC cable: Aircraft Connector, alligator clips and rings
AC input: 12A@115V, 6A@230V, 50/60Hz
Dimensions: Length 21" x Height 8.6" x Depth 17.5"
Unit Weight: 60 lbs

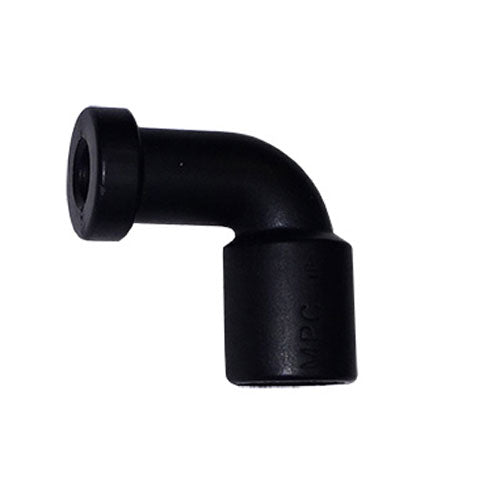

Concorde - Elbow Vent Adapter | 8003
