Brackett Aero Filters (formerly AC) have been producing aircraft filters and elements since 1968.

Specifications:
Outer Diameter: 6 5/8" X 11"
Height: 3 5/8"
Thickness: 1"
Weight: .50 lbs.

Assembly Part Numbers:
Element: BA-3
STC / Installation Sheet: BA-104-3

STC: SA693CE

Filter Cross Reference

Filter Manufacturer	Part Number
AC	6485710
Beech	169-380011
Fram	CA-161PL
Piper	460-632 89308-00
Purolator	AFP-2

Eligible Aircraft Models

Manufacturer/Airplane	Model
Aero Commander "Sparrow" & "Quail"	A-9 A-9A A9B
Beech "Musketeer"	19A 23 A23 A23A A23-19 B23 A23-24
Brantly	B-2B
Britten Norman "Islander"	BN-2 BN-2A BN-2A-2 BN-2A-3 BN-2A-6 BN-2A-8 BN-2A-9 BN-2A-20 BN-2A-21 BN-2A-27 BN-2B-20 BN-2B-21 BN-2B-26 BN-2B-27
Piper	PA-23-235 PA-23-250 S/N 27-1 thru 27-2504 PA-24 PA-24-250 S/N 1447 AND UP PA-25 PA-25-235 PA-25-260 PA-28-140 PA-28-150 PA-28-160 PA-28-180 PA-28-181 PA-28-201T PA-28-235 PA-28R-201T PA-28RT-201T PA-32-260 PA-32-300 S/N 32-7640001 & UP PA-32-301 PA-32R-300 PA-32RT-300 PA-32R-301 PA-34-200T PA-34-220T PA-36-286 WITH CONT. 6-285B PA-36-375

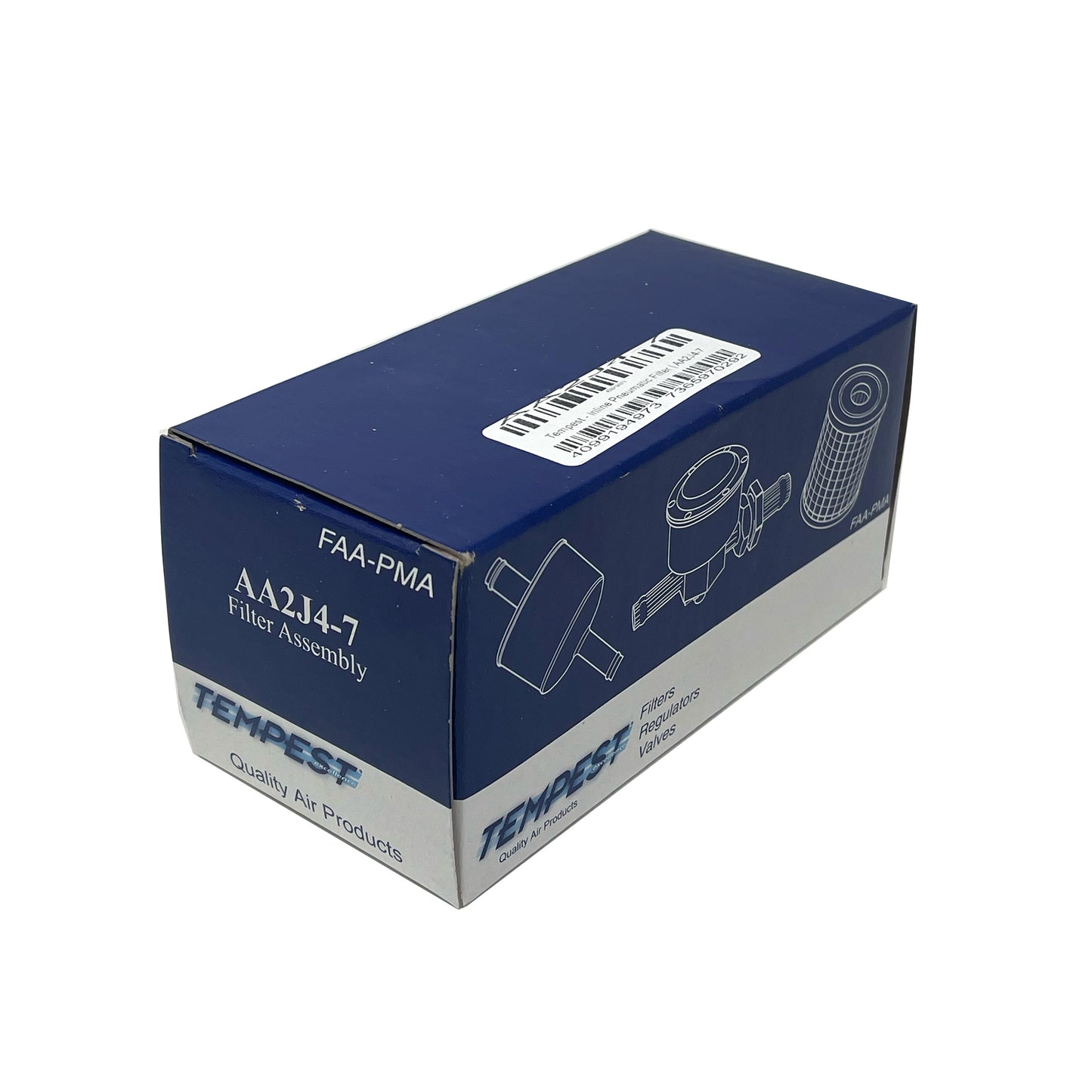

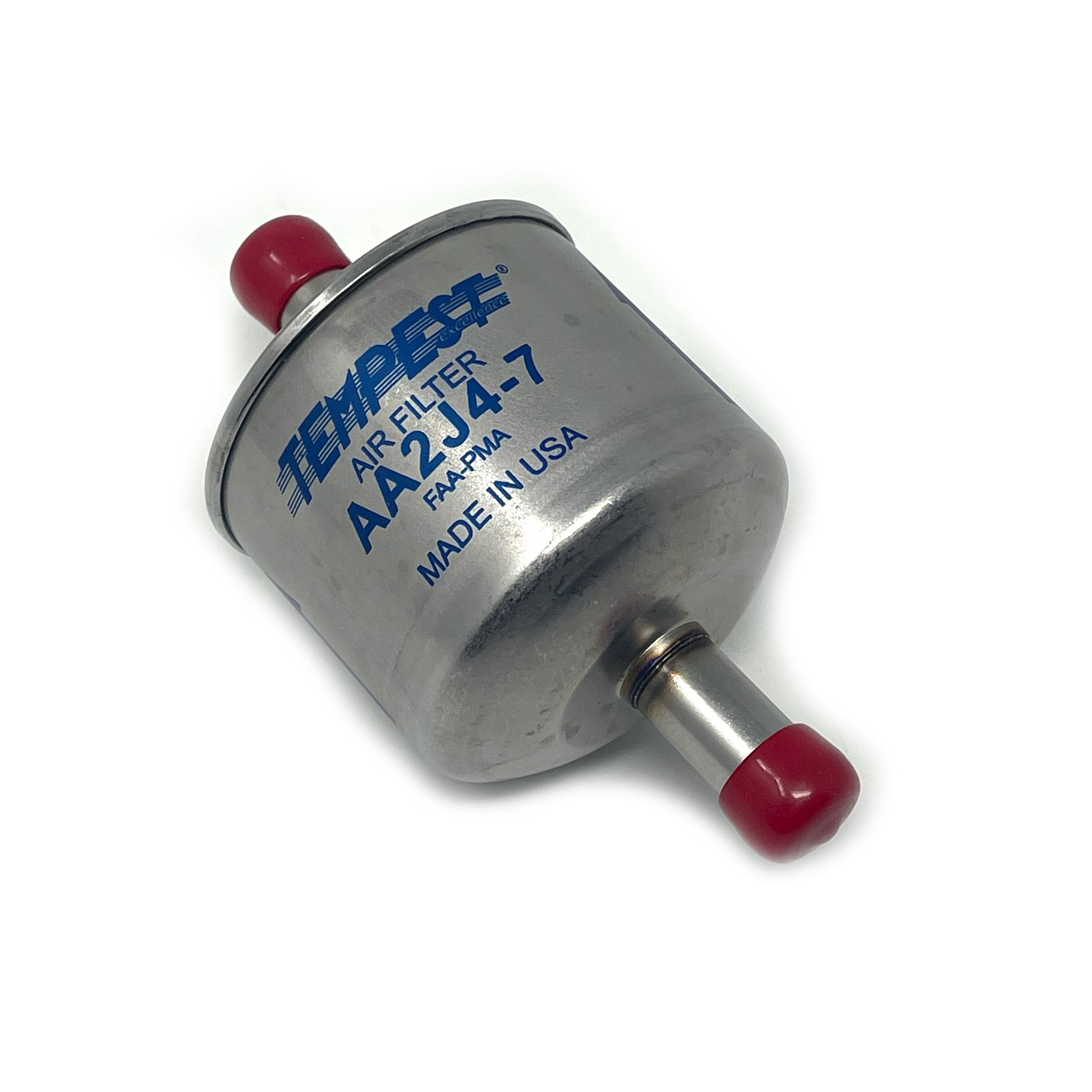

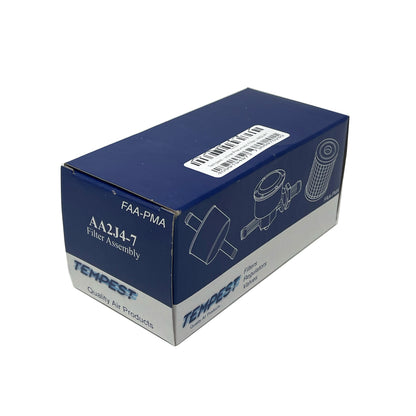

Tempest - Inline Pneumatic Filter | AA2J4-7
