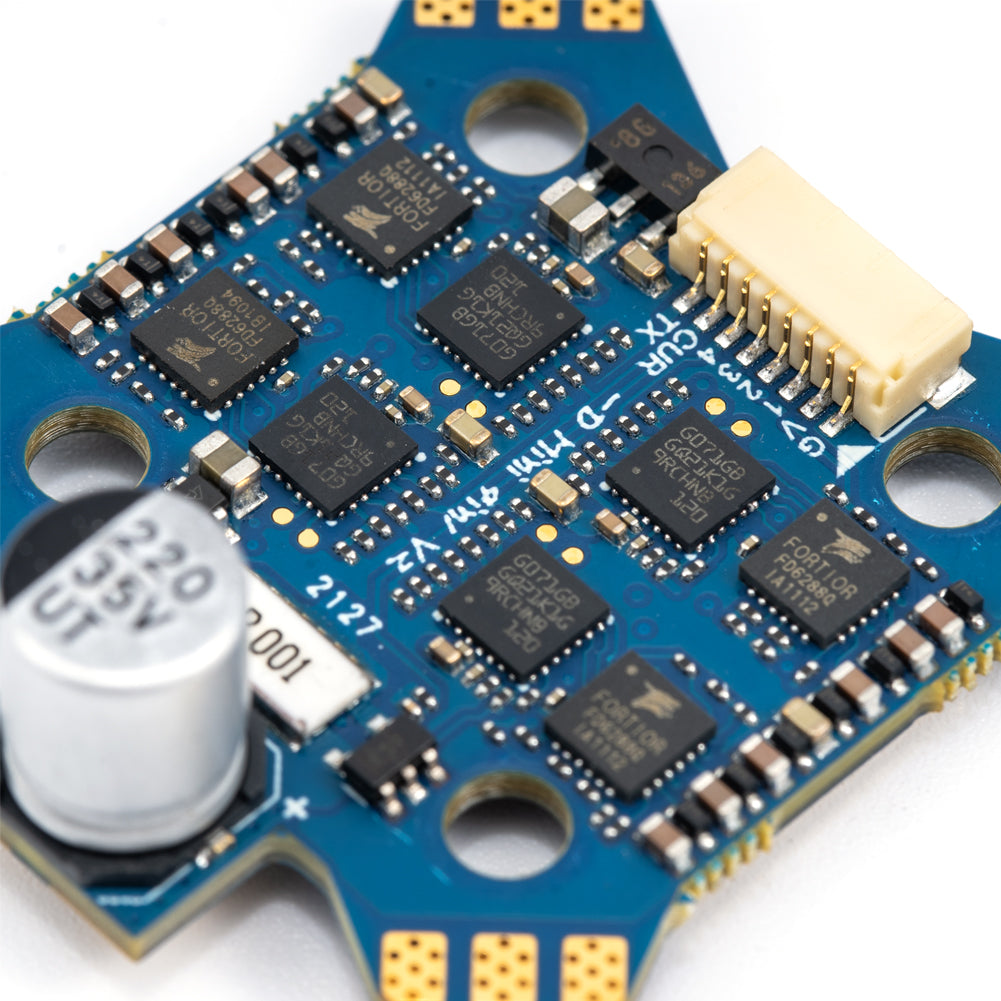

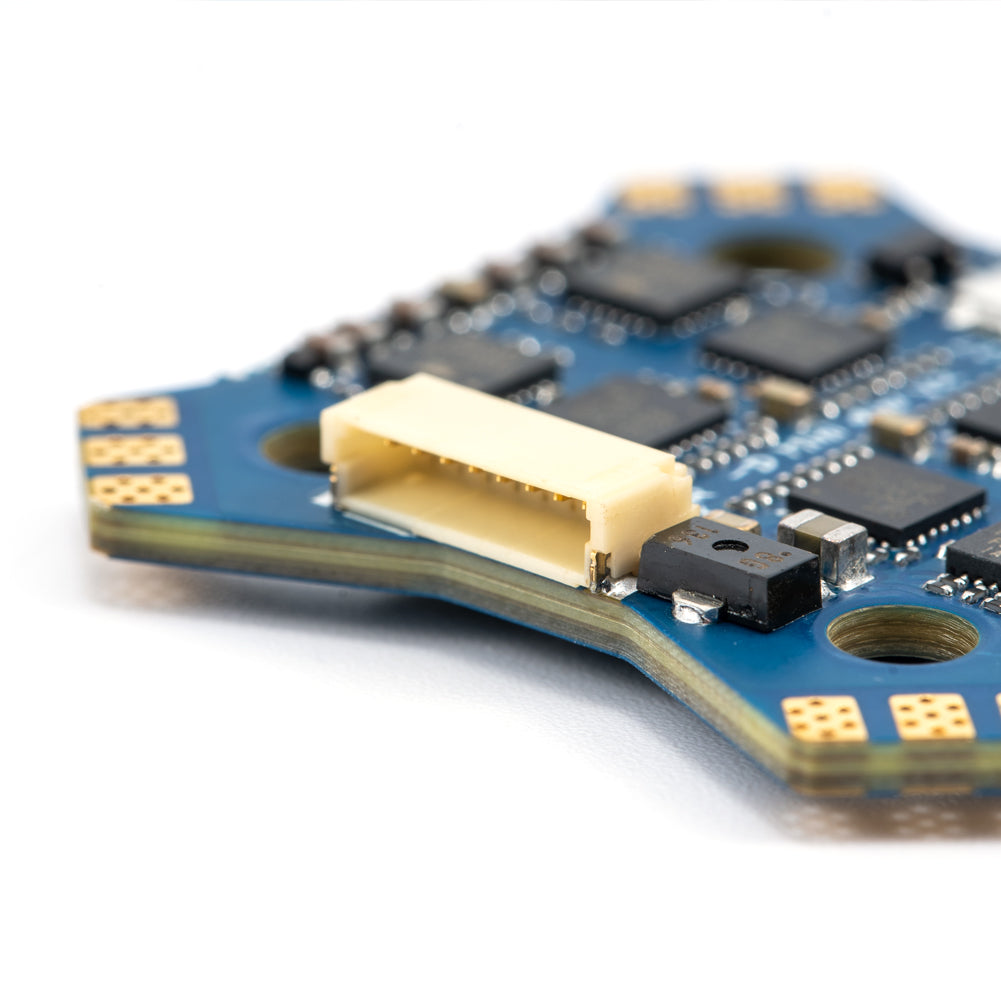

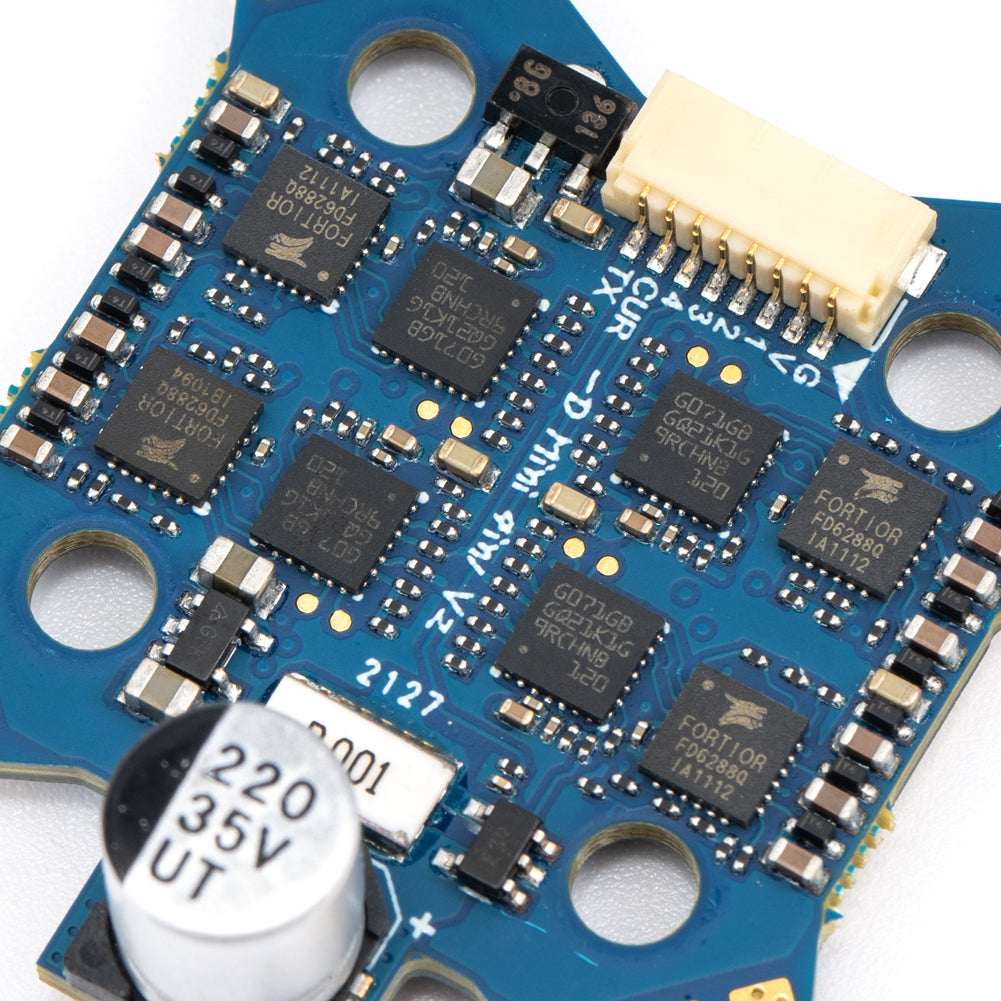

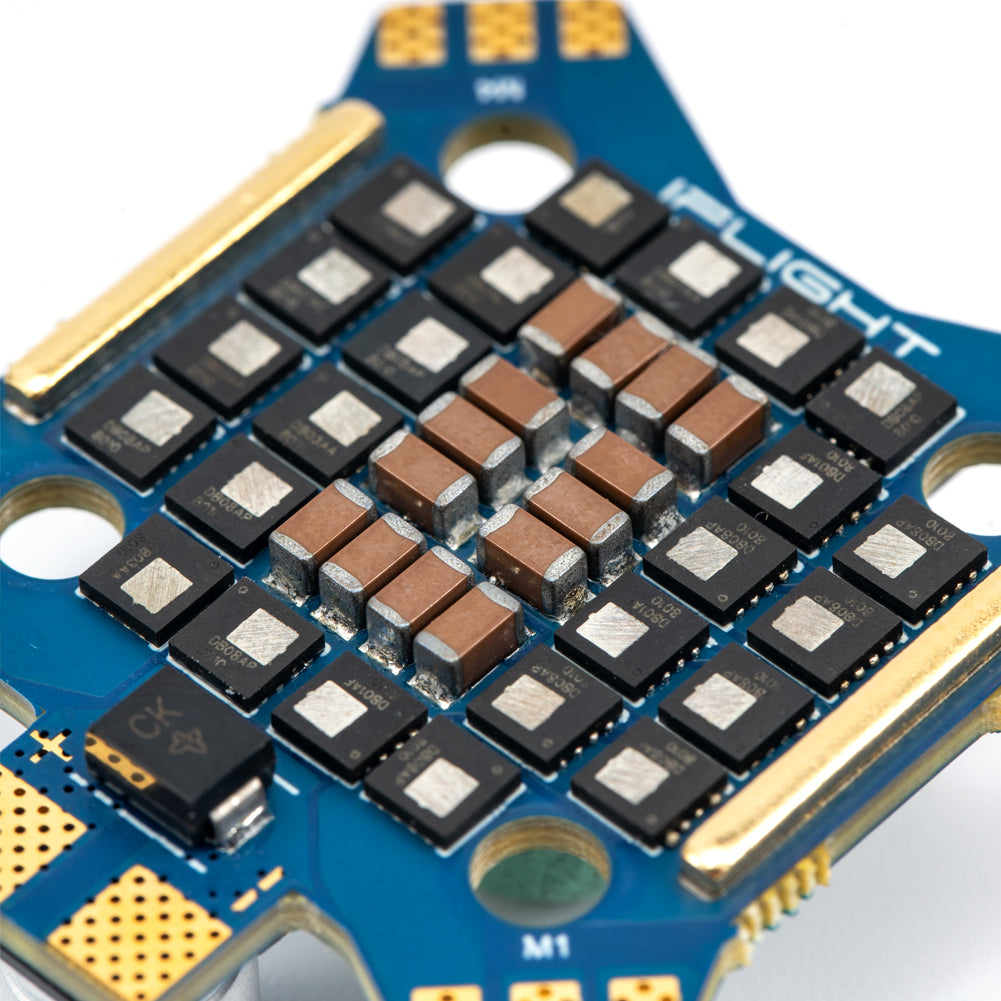

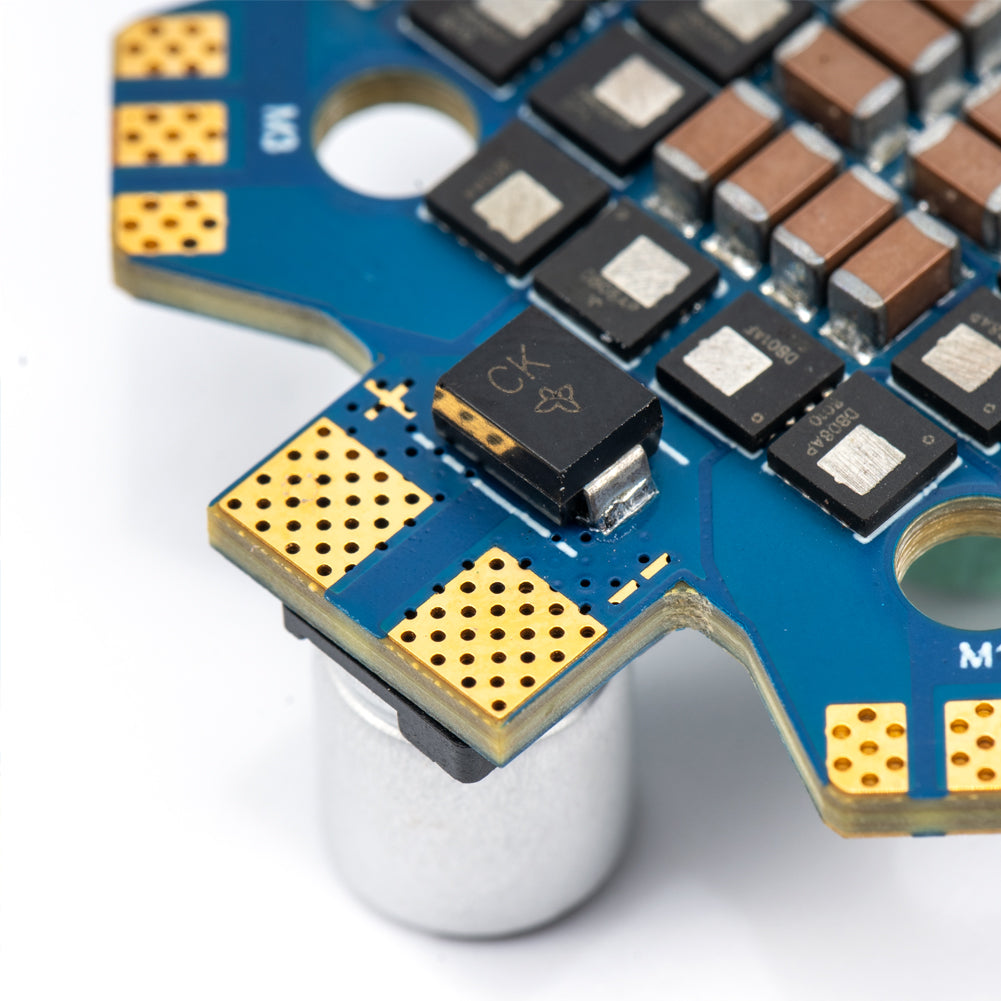

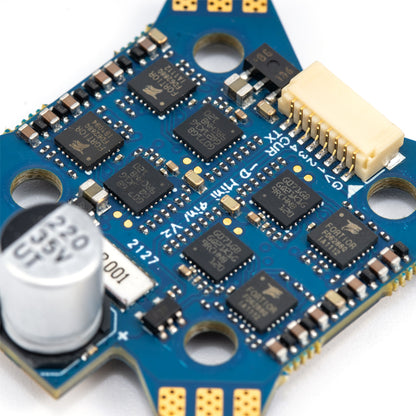

SucceX Mini 55A 2-6S ESC V2.0

iFlight

SE10753

We currently have 1 available.

Sale price $78.00 Regular price $82.99

Shipping calculated at checkout.

PRODUCT DESCRIPTION





Features:

- 6 layers double-sided PCB board;

- 2OZ copper skin thickness for 1-4 layers,better operating load capacity;

- Standard 20*20 Φ4mm  mounting holes, rational layout, countersunk holes on extended power soldering pad enable each layer board can be powered;

- Supports DShot DShot150/300/600/MultiShot/ OneShot etc.


Specification:

- Dimension: 31*29.5mm

- Mounting Holes: 20*20mm/Φ4mm

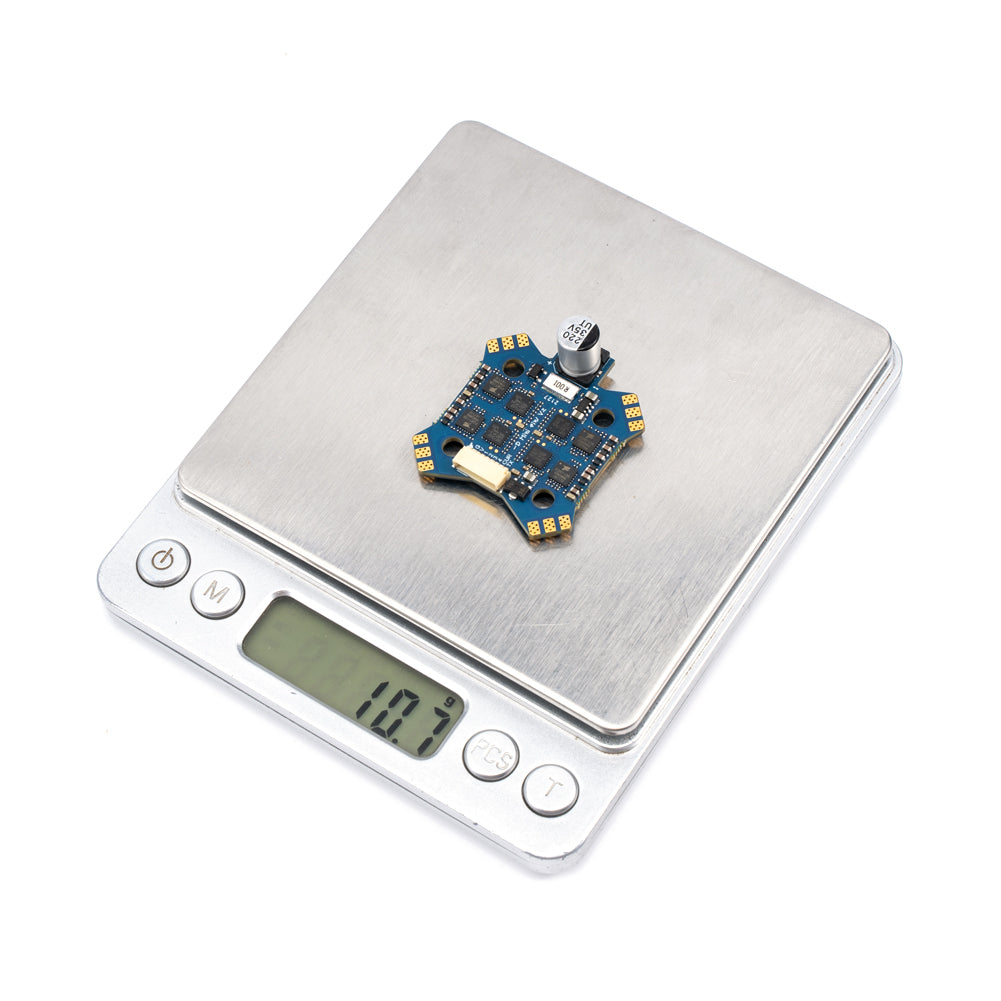

- Weight: 10.8g

- Supports 2-6S lipo input

- MCU:G071

- Constant: 55 Amps

- Burst: 60 Amps

- Current sensor: Yes

- BEC: No

- Current rate: 100

- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Firmware: BLHeli 32



- Target:  iFlight-G071-4IN1


Package Included:

- SucceX 55A V2 4-in-1 ESC  * 1pc

- Power cables & ESC signal wires * 1set
