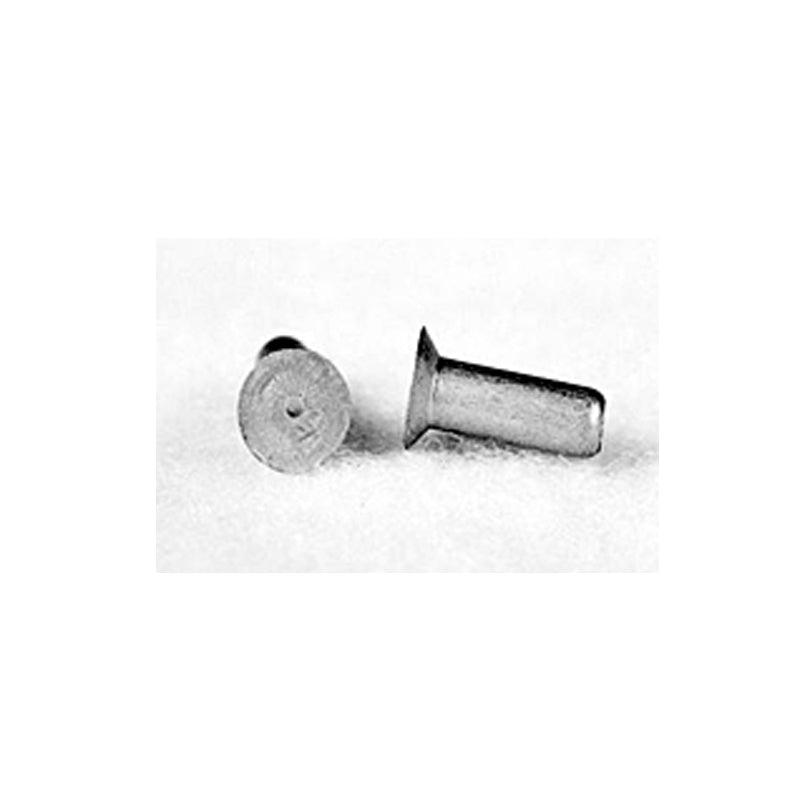

Mili Std - Aluminum 100° Flush Head Rivet, Solid, 1 lb | MS20426AD3-12

Military Standard

MS20426AD3-12

Sale price $93.53 Regular price $201.89

Shipping calculated at checkout.

Mili Std - Aluminum 100┬░ Flush Head Rivet, Solid, 1 lb | MS20426AD3-12

  • Fastener Length: 0.740 Inches Minimum And 0.760 Inches Maximum
  • Head Style: Flush (Flat) Countersunk (Included Angle - Less Than 135 Deg W Or W/O Chamfer)
  • Shank Diameter: 0.093 Inches Minimum And 0.097 Inches Maximum
  • Shank Style: Straight W/Radius Chamfered Tip
  • Head Major Diameter: 0.175 Inches Minimum And 0.183 Inches Maximum
  • Grip Length: 0.599 Nominal Mils And 0.619 Nominal Centimeters
  • Shear Strength: 26000 Single Pounds Per Square Inch
  • Countersink Angle: 99.5 Degrees Minimum And 100.5 Degrees Maximum
  • Material: Aluminum Alloy 2117 Overall
  • Material Document And Classification: Qq-A-430 Fed Spec Single Material Response Overall
  • Surface Treatment: Anodize Overall Or Oxide Film Overall
  • Surface Treatment Document And Classification: Mil-A-8625 Mil Spec 1St Treatment Response Overall Or Mil-C-5541 Mil Spec 2Nd
