McFarlane - Brownline Style Cargo Tie Down Ring | 32401

McFarlane Aviation

32401

Sale price $8.50 Regular price $9.95

Shipping calculated at checkout.

McFarlane - Brownline Style Cargo Tie Down Ring | 32401

Cargo Tie Down Fittings for Brownline Style Track

  • Use with Brownline style track (McFarlane P/N series 6656) or other MS33601 compatible track
  • Sometimes called L-track
  • Perfect for net or strap restraint applications
  • Spring loaded fitting snaps securely into place and can be easily moved to different positions.
P/N Description Figure

A

B

C

D

E

F

0 deg Vertical Working Load Limit lbs. 90 deg Horizontal Pull Angle Working Load Limit lbs.

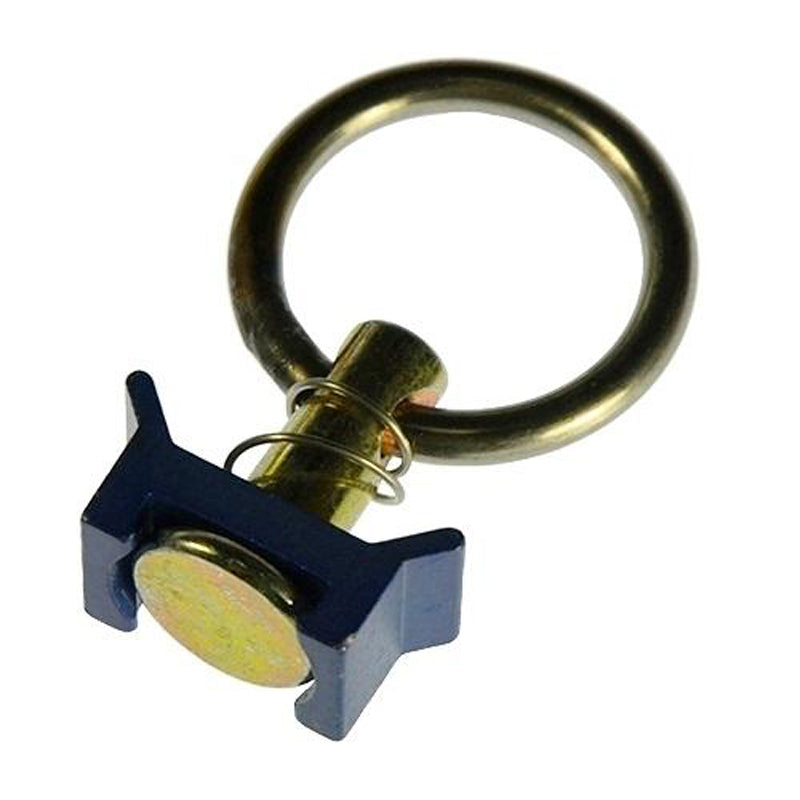

32401 Single Stud Fitting with Ring

1

1.99" 0.93" 1.18" 0.19" 0.63" 1.23"

1333

1000

40340-20 * Single Stud Fitting with Ring

1

1.87" 0.87" 1.12" 0.19" 0.71" 1.43"

1000

500

40340-21 ** Single Stud Fitting with D-Ring

2

2.00" 1.09"   0.19" 0.71" 1.43"

1000

500

47981-10 Double Stud Fitting with Round Ring

3

1.75" 2.32" 2.34" 0.31" 0.76"

10000

5000

47981-11 Double Stud Fitting with Twisted Ring

4

1.56" 2.32" 3.76" 0.27" 0.76"

5000

5000

32505 *** Triple Stud Fitting without Ring

5

1.12" 0.90" 2.60"

2167

1670

32507 *** Triple Stud Fitting with Pear Shaped Ring

6

1.12" 0.90" 1.16" 0.25" 4.90"

2000

1670

* NSN Number 1670-01-243-8877
** NSN Number 1670-01-261-0567
*** 60 deg Pull angle working load limit = 2000 lbs.
