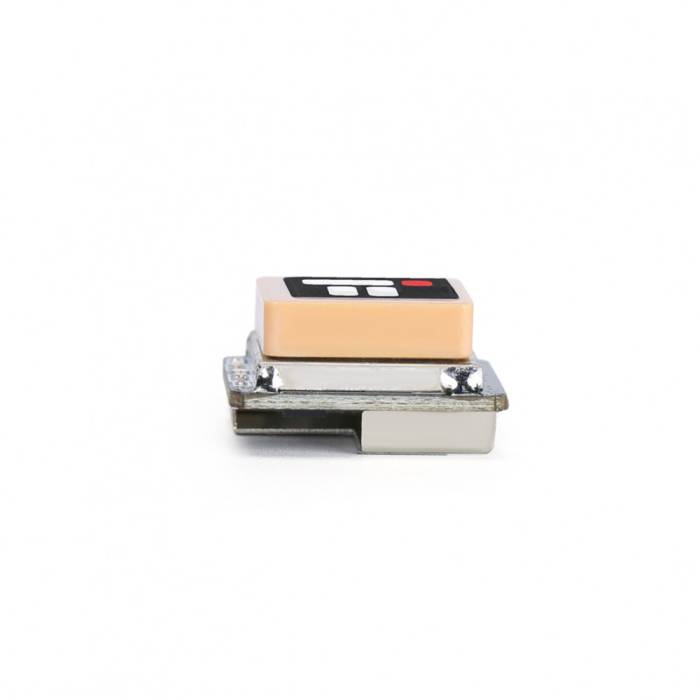

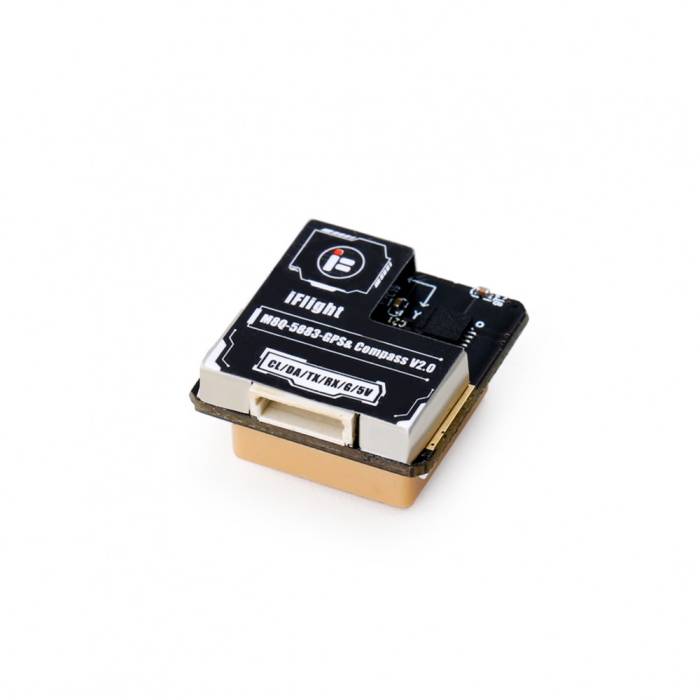

iFlight M8Q-5883 V2.0 GPS Module w/ Compass

Iflight

4157331454

Sale price $39.99 Regular price $55.00

Shipping calculated at checkout.

About this product

The iFlight M8Q-5883 GPS comes with an integrated QMC5883L compass module, built-in TCXO crystal, and farad capacitor for a faster hot start, additional front-end LNA and many other features!

Features

  • 10 Hz Refresh rate (600 times/second)
  • Additional front-end LNA (Low Noise Amplifier)
  • High sensitivity 15x15mm GPS patch antenna
  • Built-in TCXO crystal and farad capacitor for faster hot start
  • Compass module QMC5883L integrated

Specifications

  • GPS module: GPSSAM-M8Q
  • Frequencies 72 channel
  • Compass module: QMC5883L
  • Baud Rate4800bps-115200bps (Default - 9600bps)
  • Sensitivity:  Tracking: -162dBm Capture: -160dBmCold Start-148dBm
  • Cold start<29s
  • Hot start <2s
  • Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
  • Maximum height: 50.000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Maximum acceleration:  4G
  • Refresh Rate: 10 Hz
  • GPS patch antenna size: 15 x 15 mm
  • Total dimensions20 x 20 x 10.5 mm
  • Weight:  8g
  • Input Voltage 3.3V-5Vcurrent 25mA
  • GPS pin definition: RX/TX UART
  • Compass pin definition: SDA/SLA

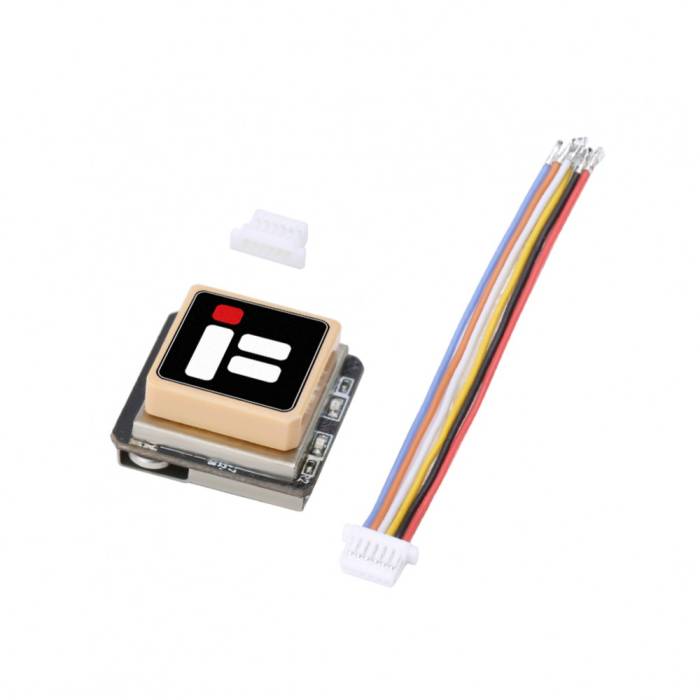

Includes

  • 1 x iFlight M8Q-5883 GPS
  • 1 x SH-1.0-4Pin silicon wire
