GALION DRESSER Complete Hydraulic Cranes Service Shop Repair Manual Guide Book

Galion

SurplusManuals-507

We currently have 1 available.

Sale price $142.86 Regular price ~~$200.00~~

Shipping calculated at checkout.

Condition: Used, Binder

Company: Galion; Dresser Construction and Mining Equipment

Shop Manual For: Complete Hydraulic Cranes - Book 1

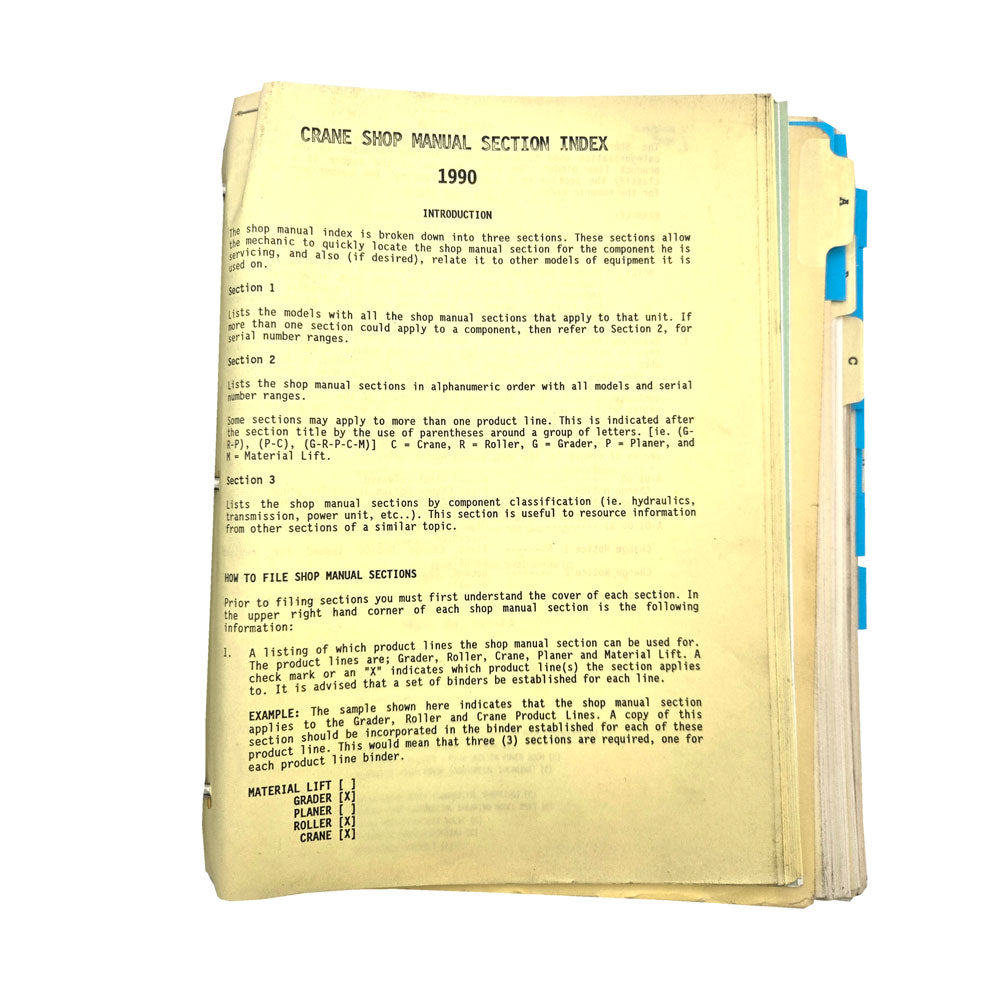

Crane Shop Index 1990

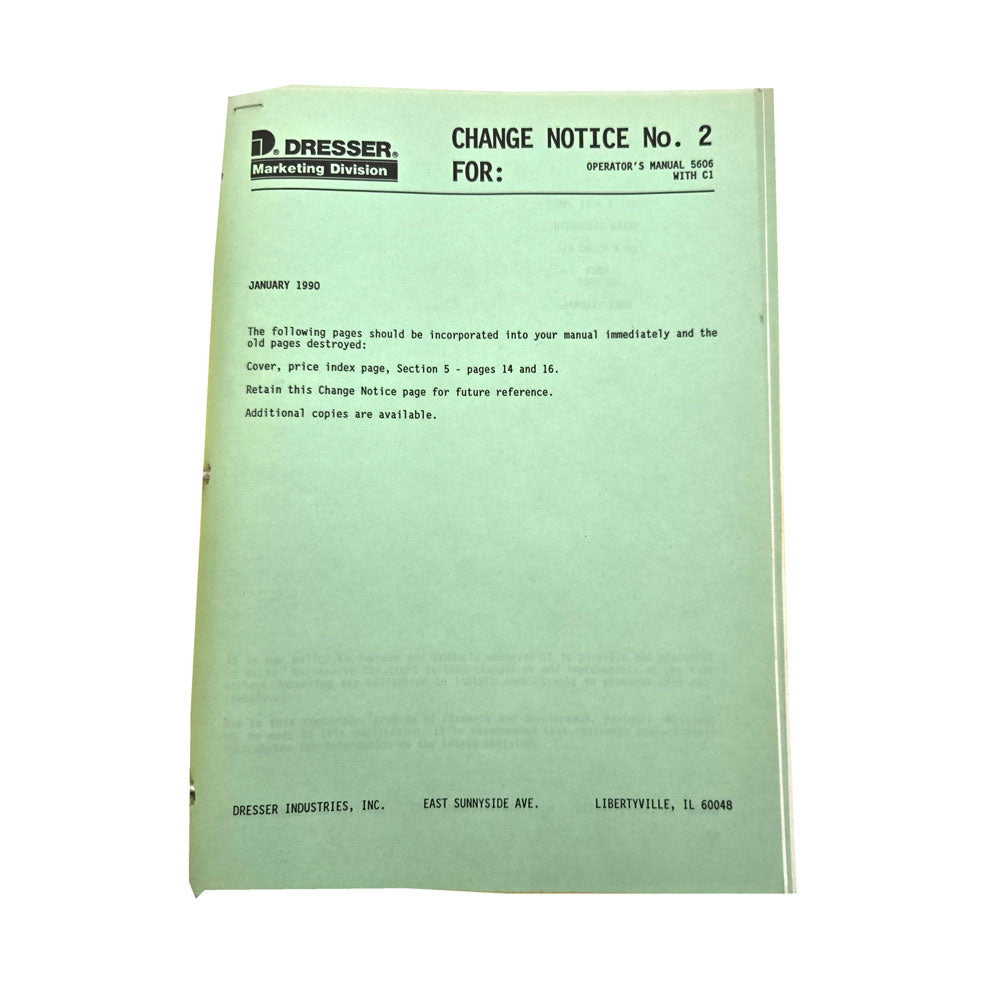

Change Notice No. 2: Operator's Manual 5606 with C1

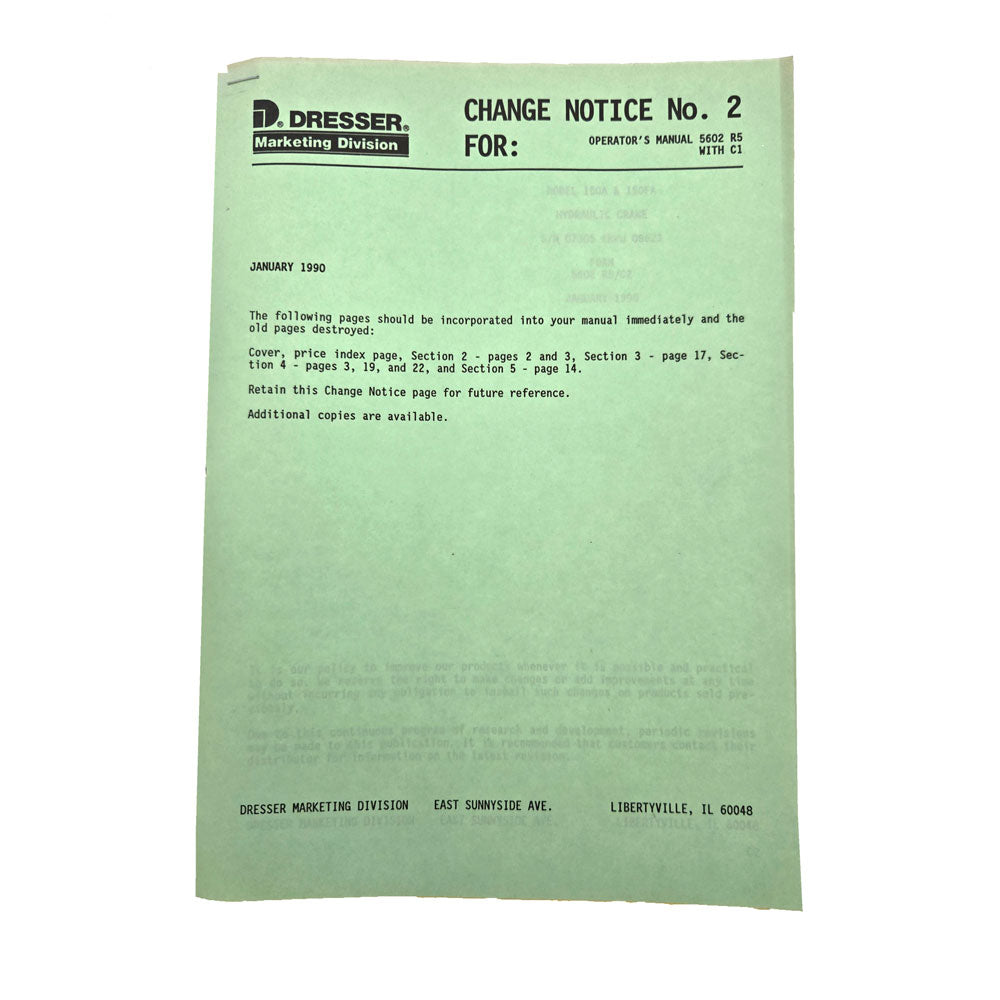

Change Notice No. 2: Operator's Manual 5602 R5 with C1

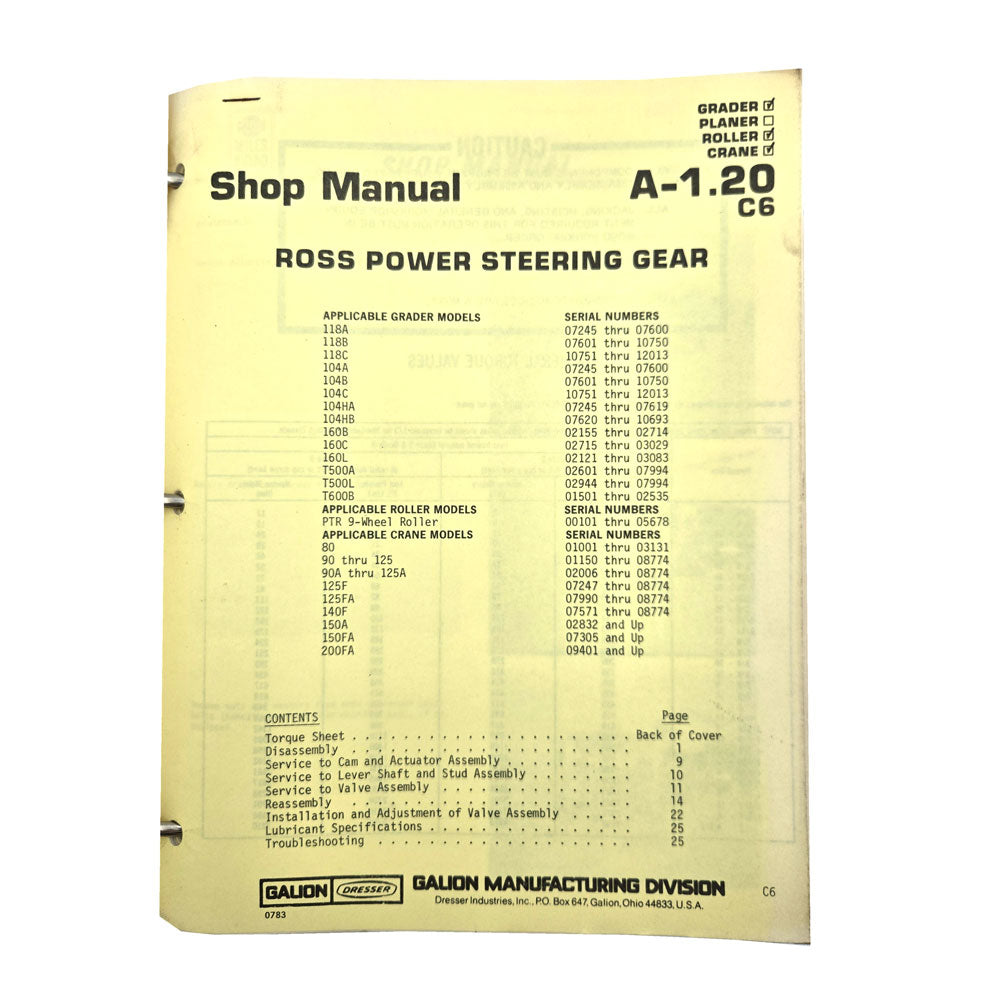

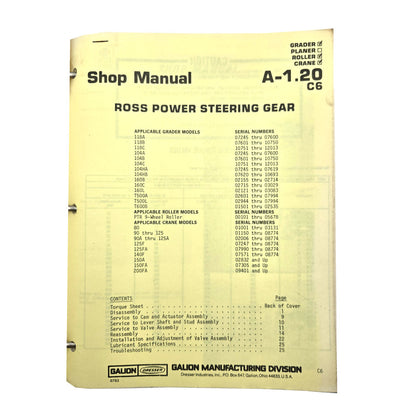

- Section A - 1.20 C6: Ross Power Steering Gear

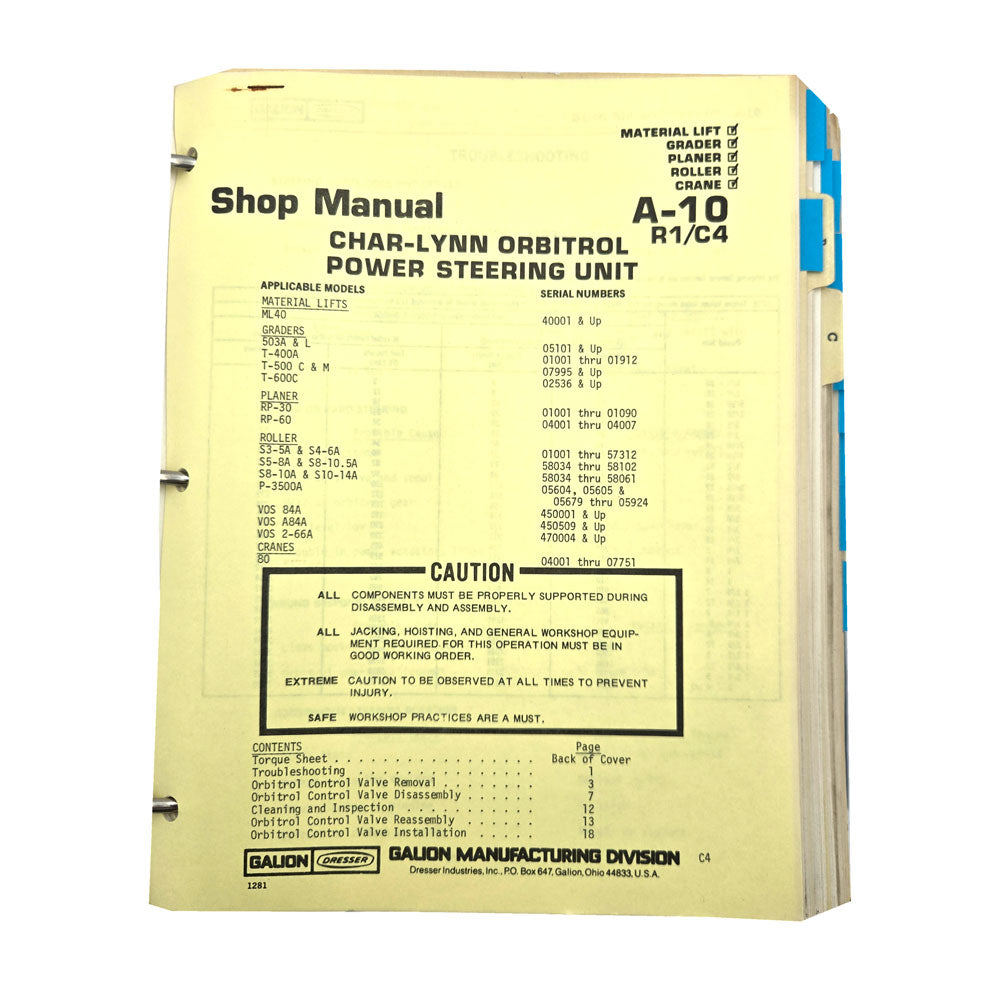

- Section A - 10 R1/C4: Char-Lynn Orbitrol Power Steering Unit

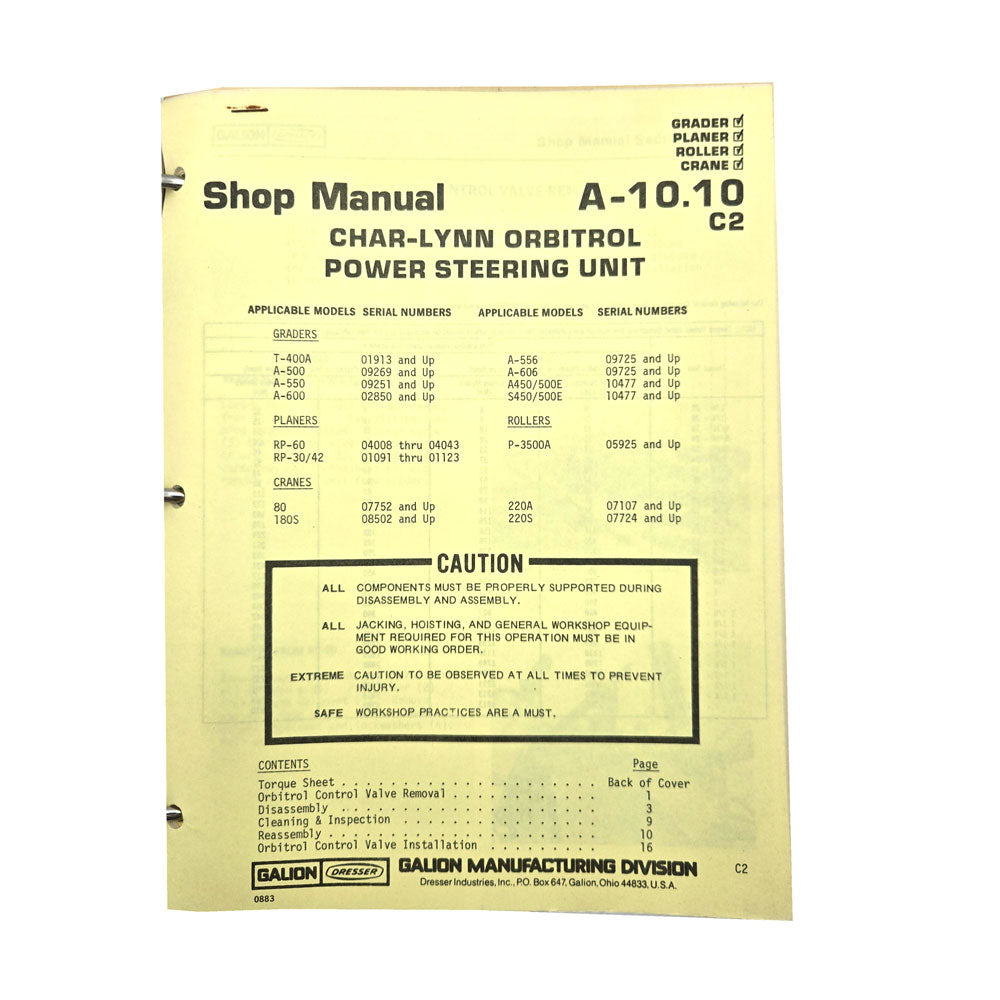

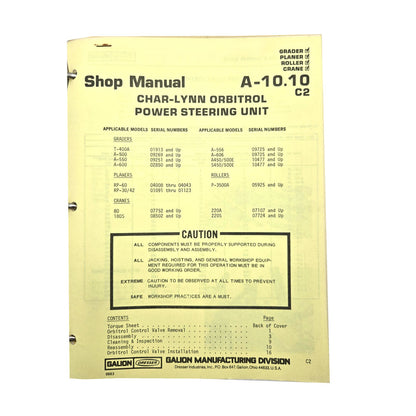

- Section A - 10.10 C2: Char-Lynn Orbitrol Power Steering Unit

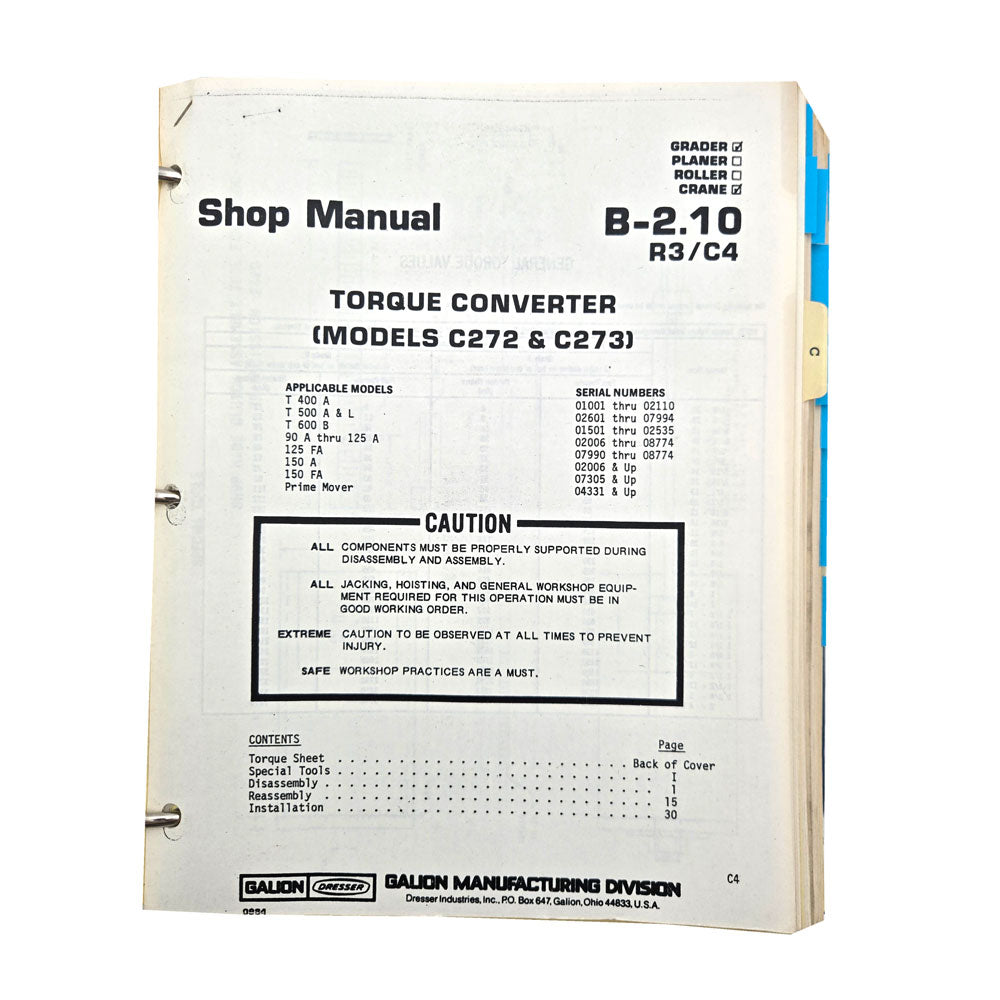

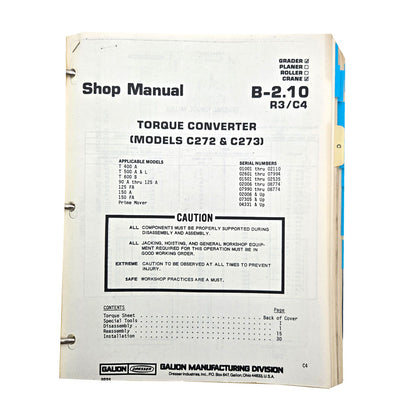

- Section B - 2.10 R3/C4: Torque Converter (Models C272 & C273)

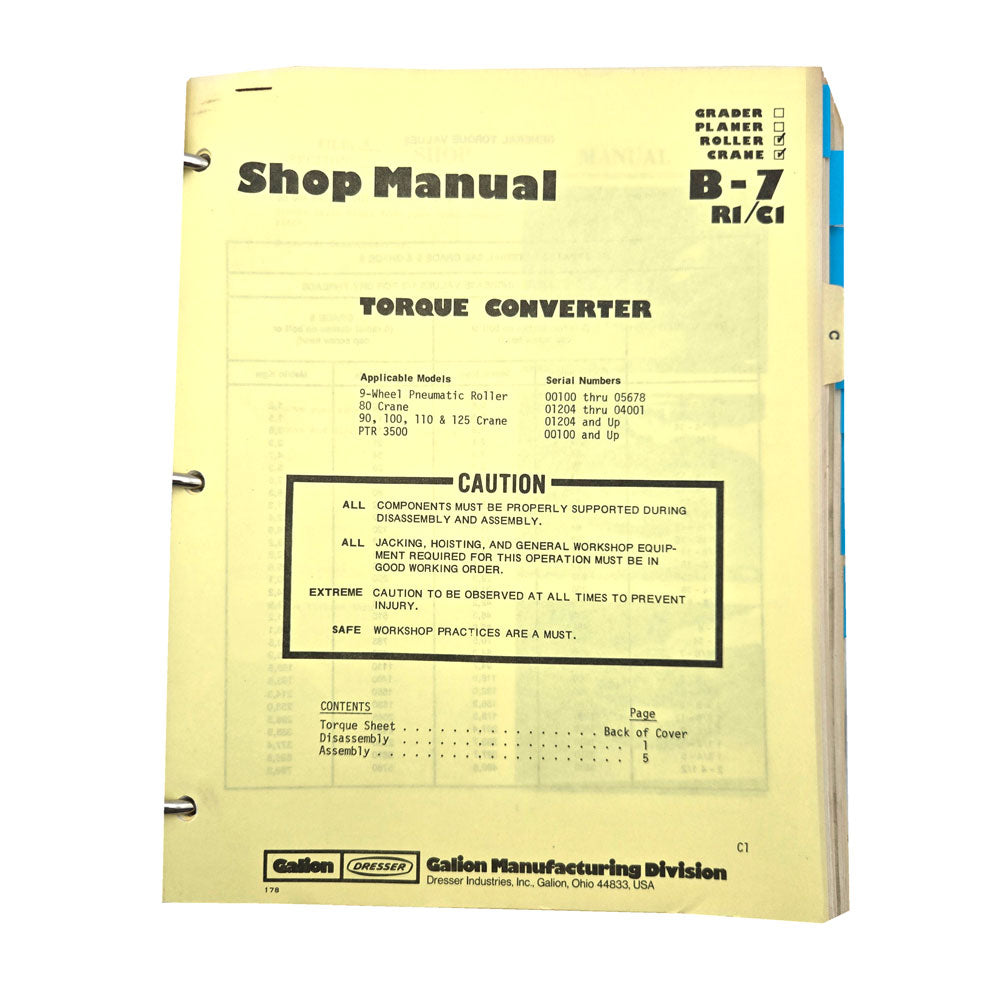

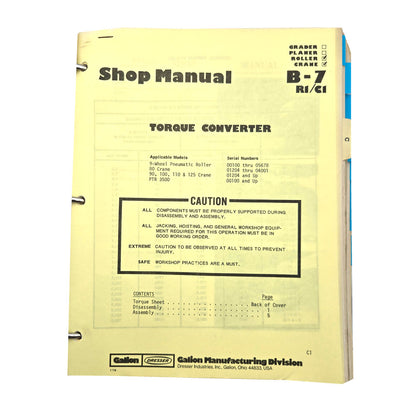

- Section B - 7 R1/C1: Torque Converter

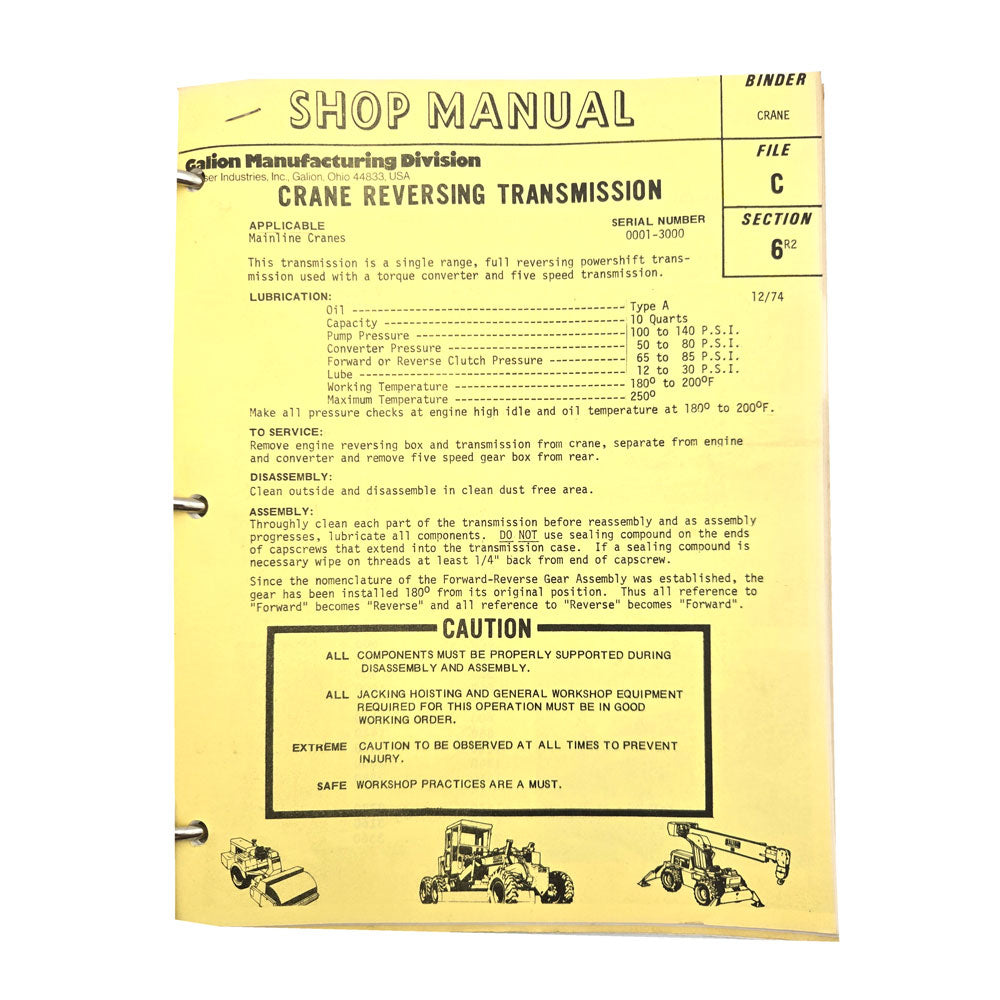

  - Section C - 6 R2: Crane Reversing Transmission

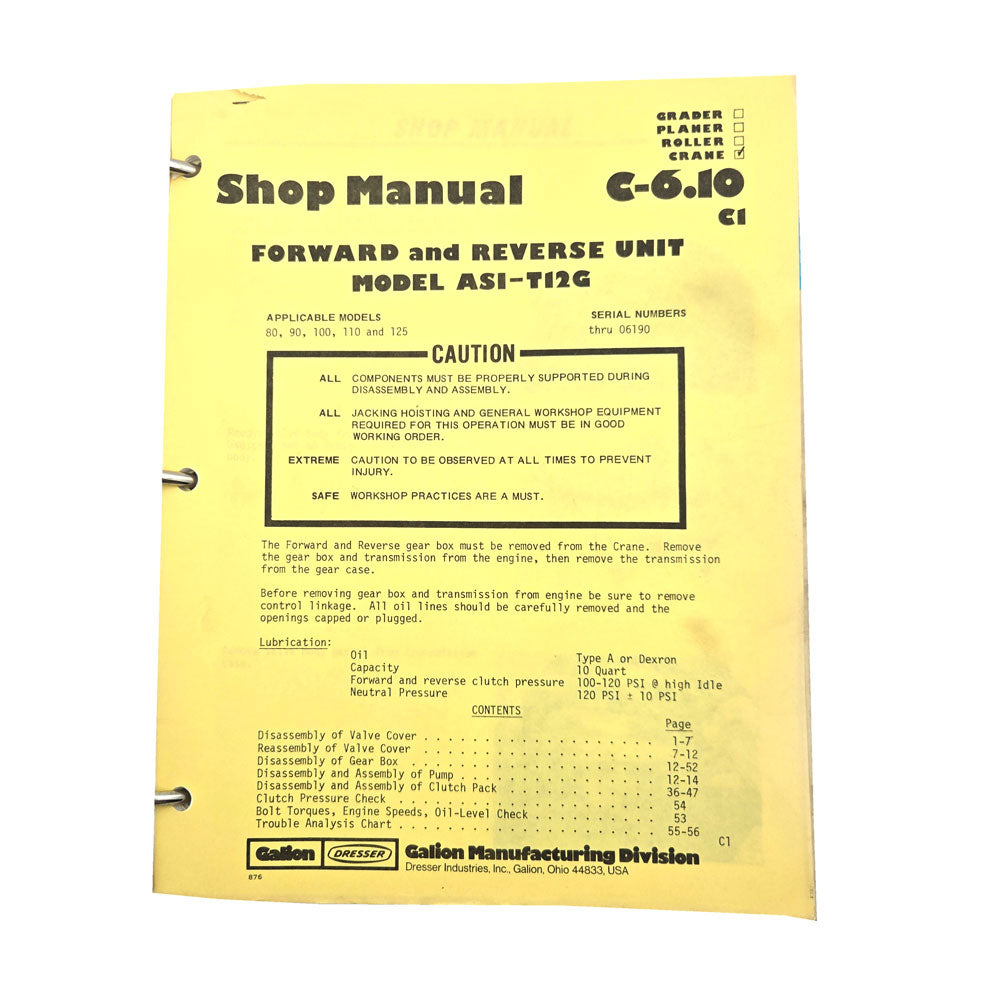

  - Section C - 6.10 C1: Forward and Reverse Unit Model ASI-T12G

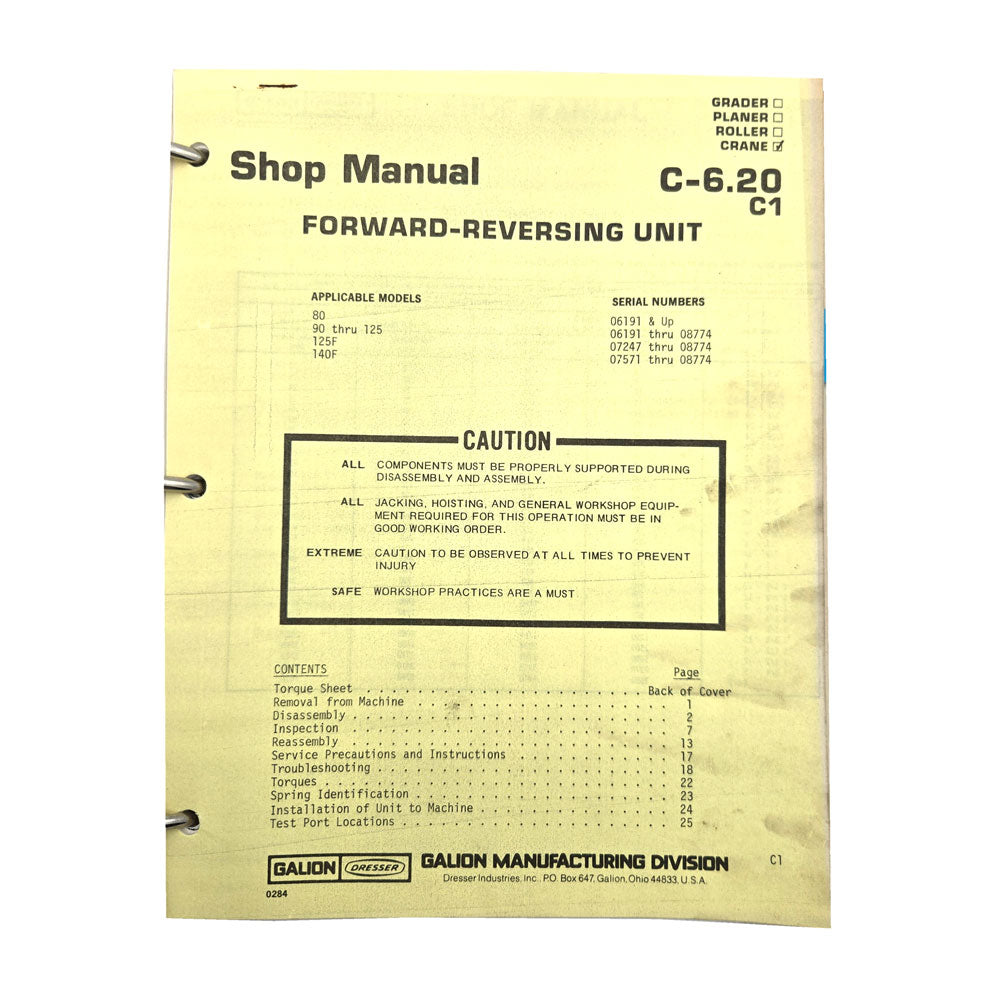

  - Section C- 6.20 C1: Forward-Reversing Unit

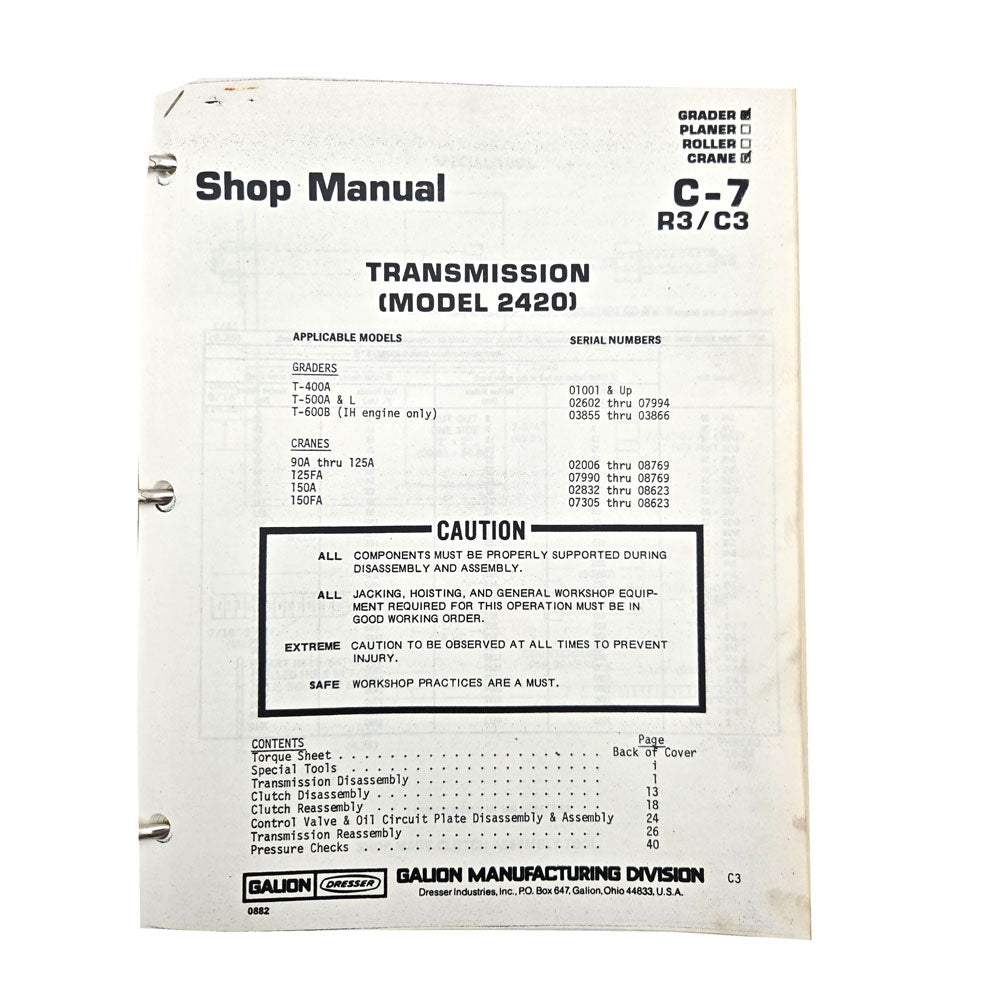

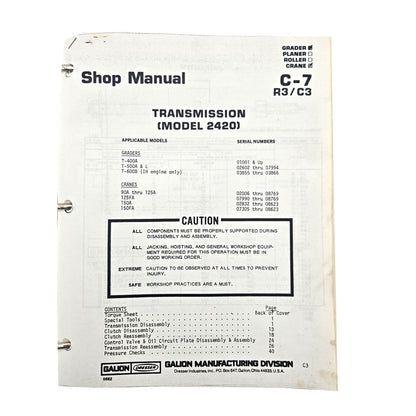

  - Section C - 7 R3/C3: Transmission (Model 2420)

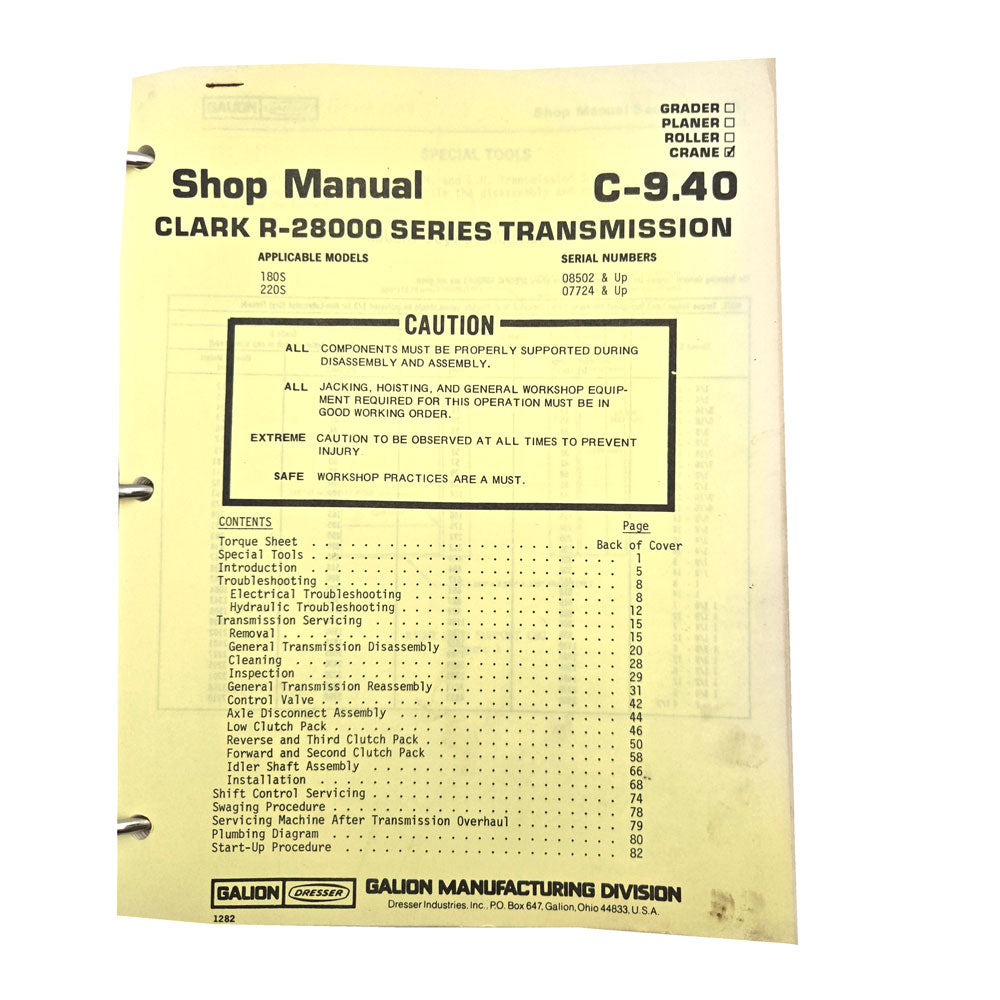

  - Section C - 9.40: Clark R-28000 Series Transmission
  - Change Notice No.1 | Section C - 10 C2: Shop Manual

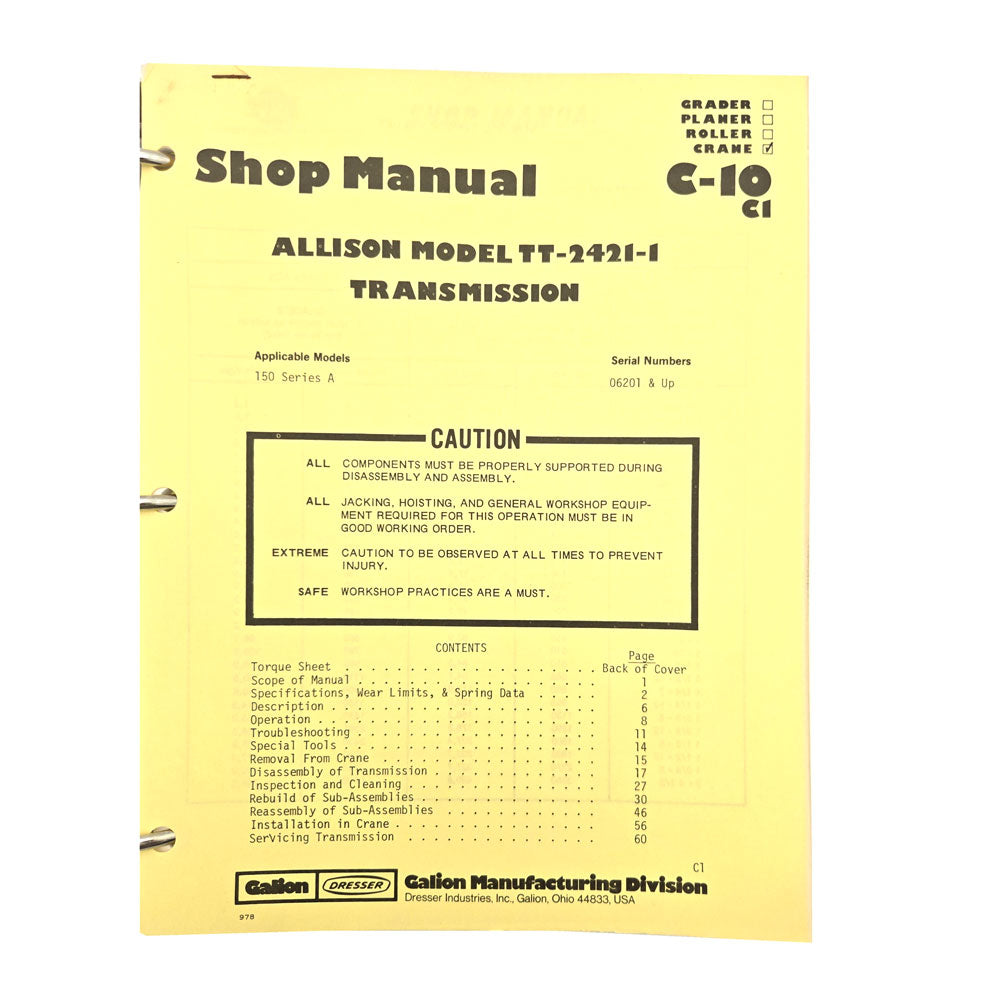

    - Section C - 10 C1: Allison Model TT-2421-1 Transmission

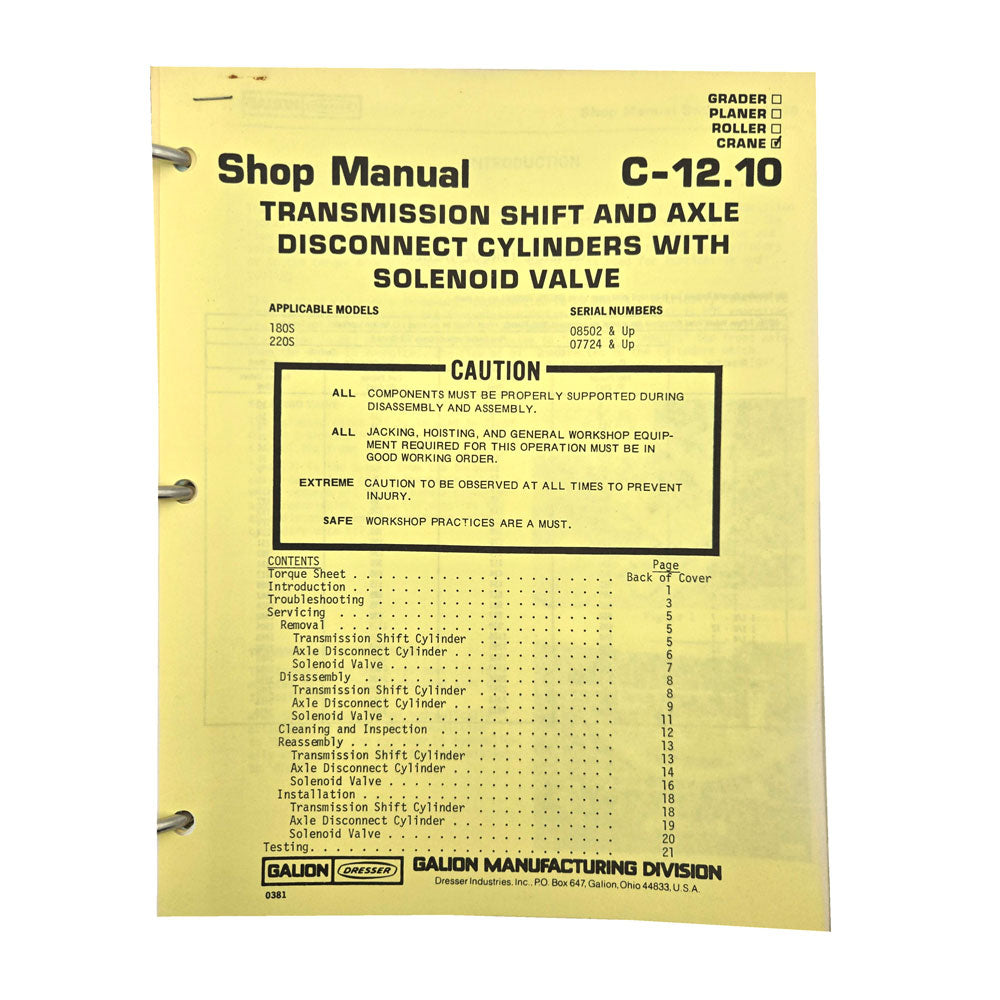

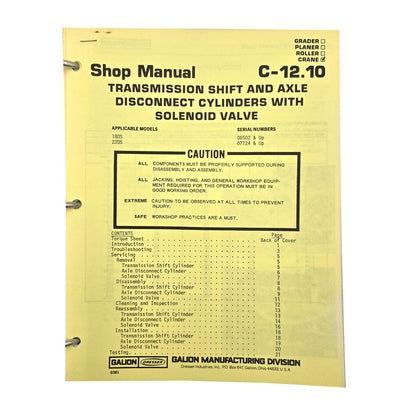

  - Section C - 12.10: Transmission Shift and Axle Disconnect Cylinders with Solenoid Valve

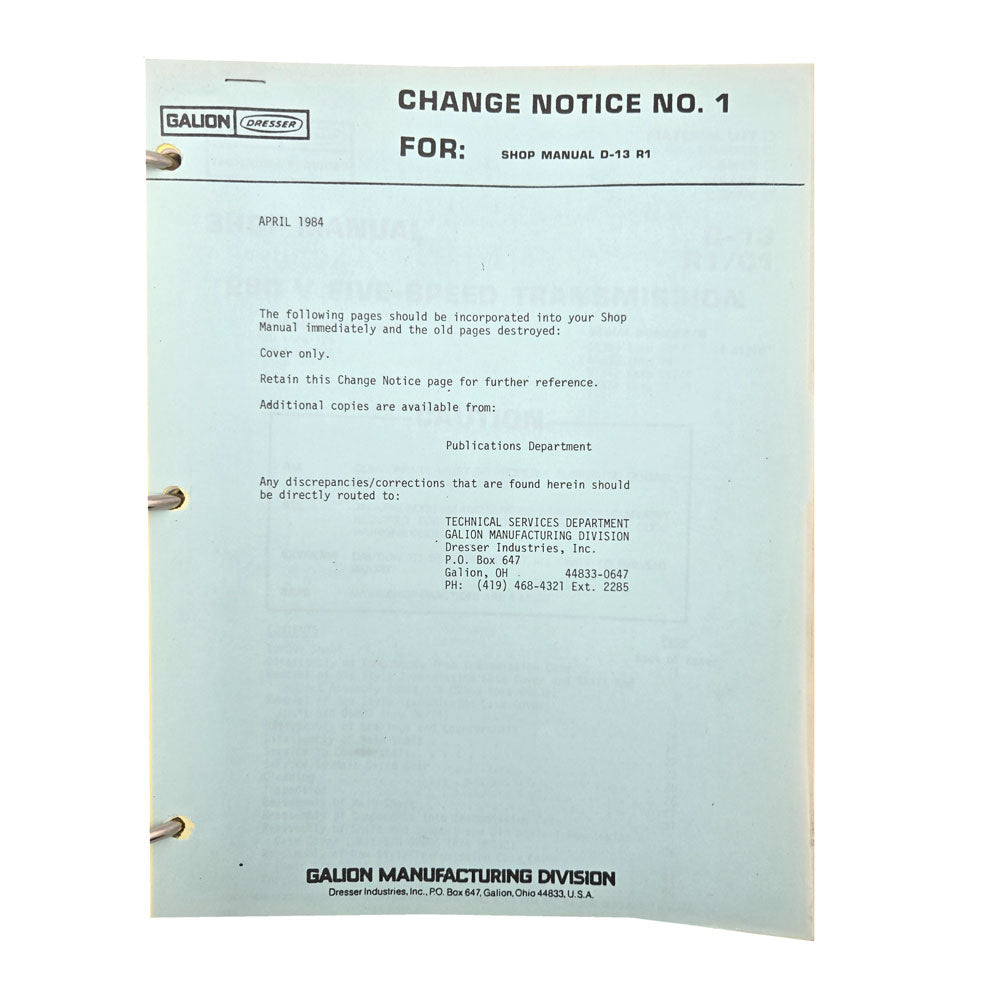

    - Change Notice No.1 | Section D - 13 R1/C1: 28 V Five-speed Transmission

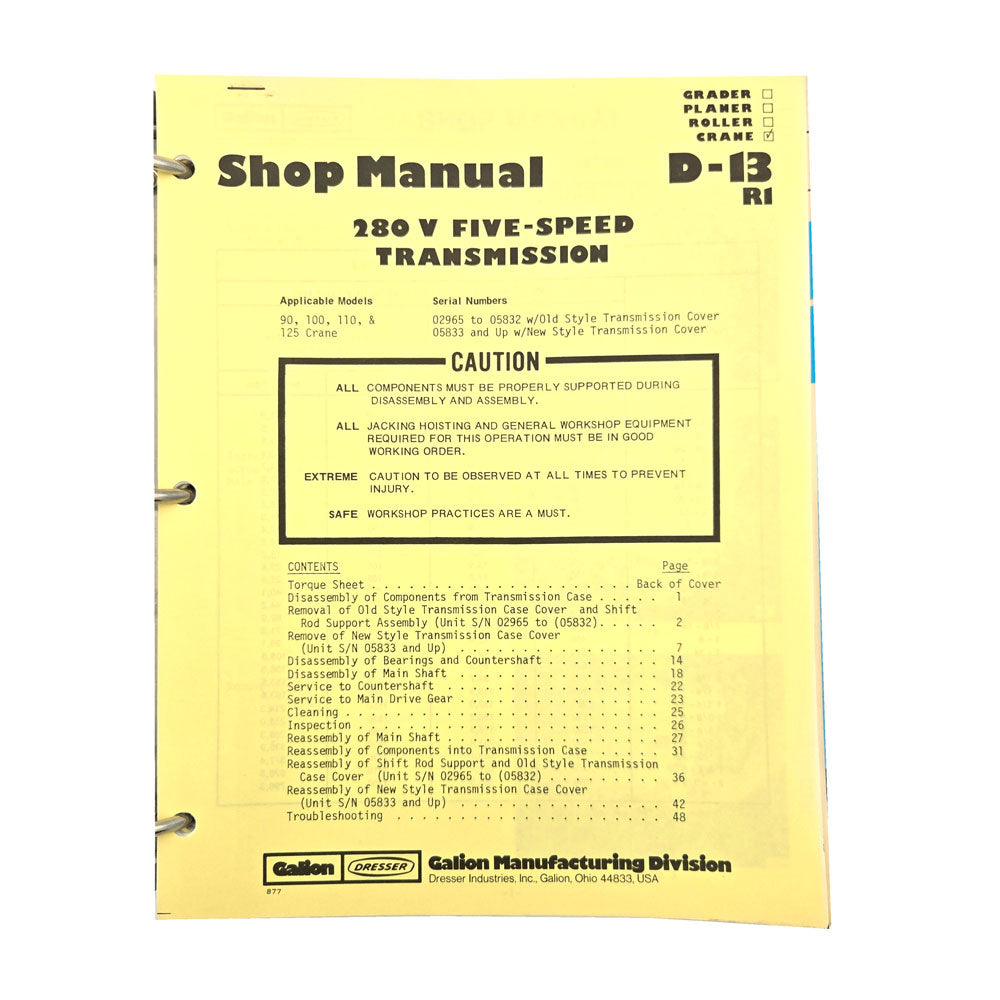

      - Section D - 13 R1: 28 V Five-speed Transmission

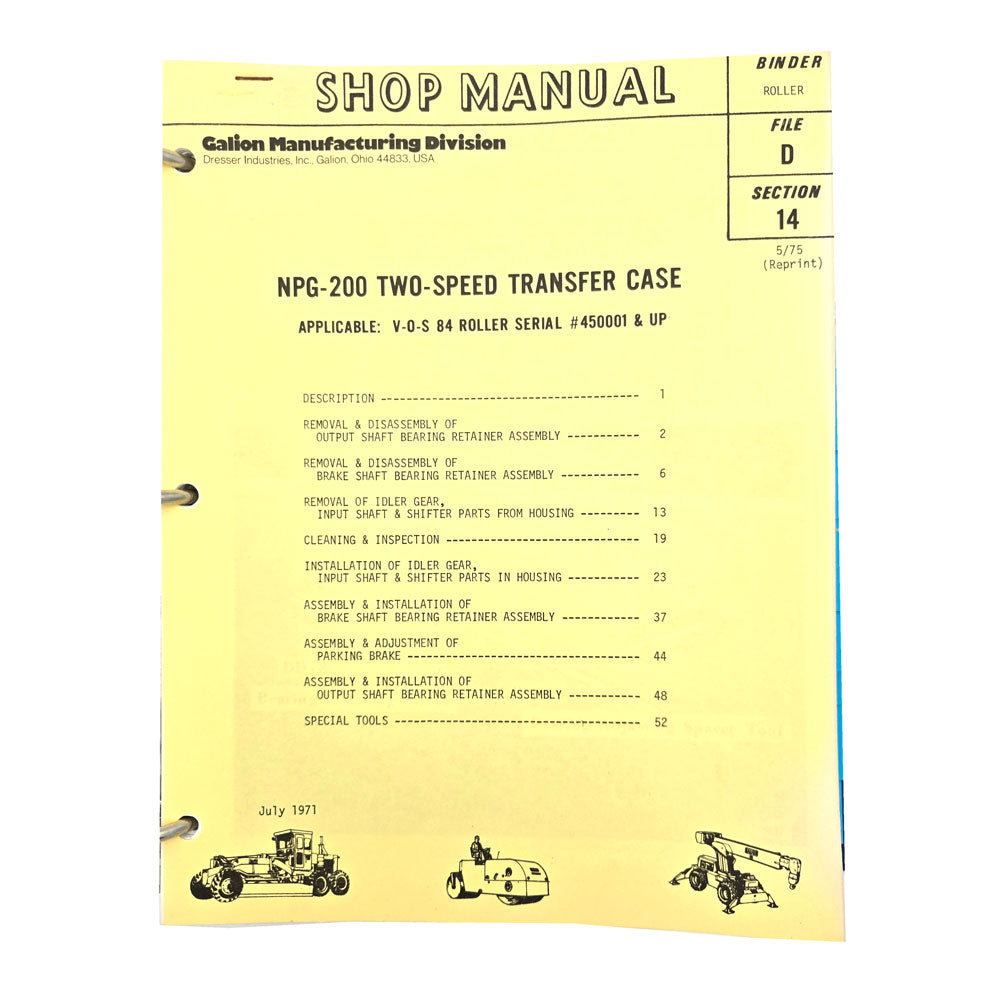

    - Section D - 14: NPG-200 Two-speed Transfer Case
      - Section D - 14: NPG-200 Two-speed Transfer Case (Applicable: V-O-S 84 Roller Serial #450001 & Up)

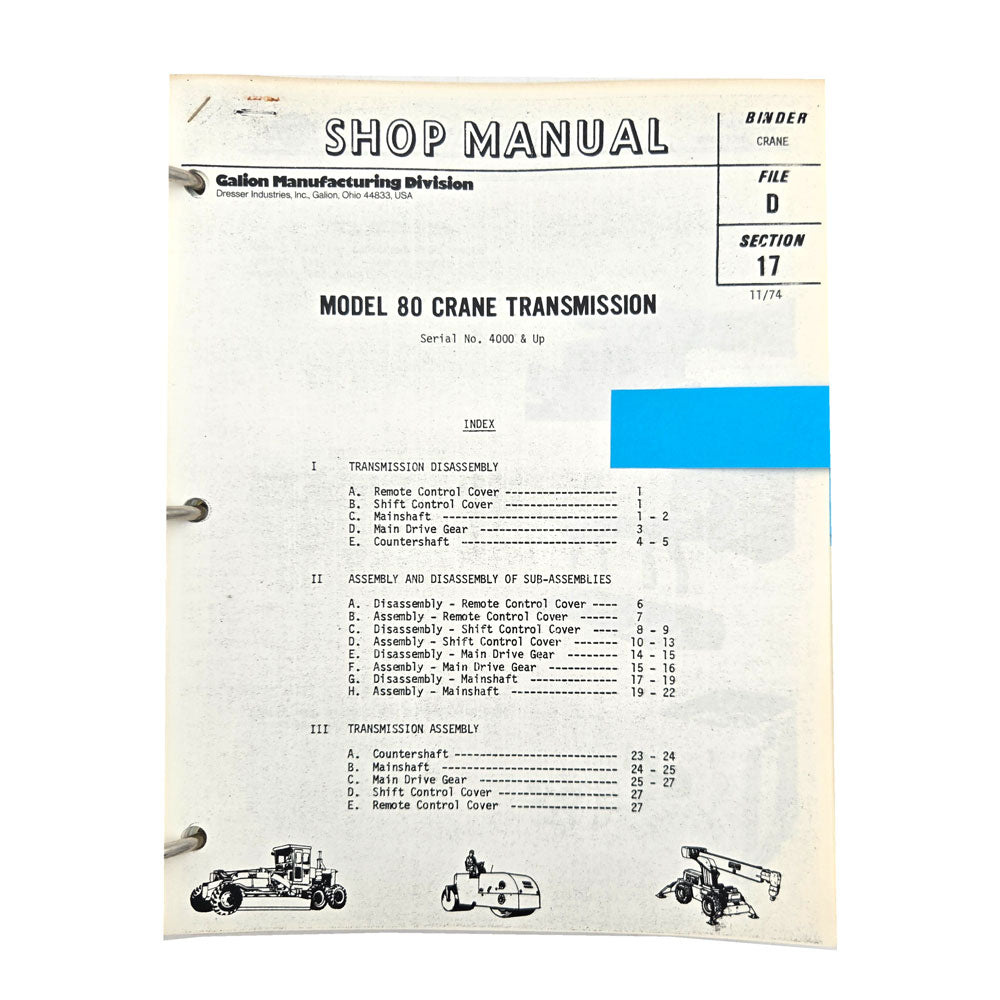

    - Section D - 17: Model 80 Crane Transmission (Serial No.4000 & Up)

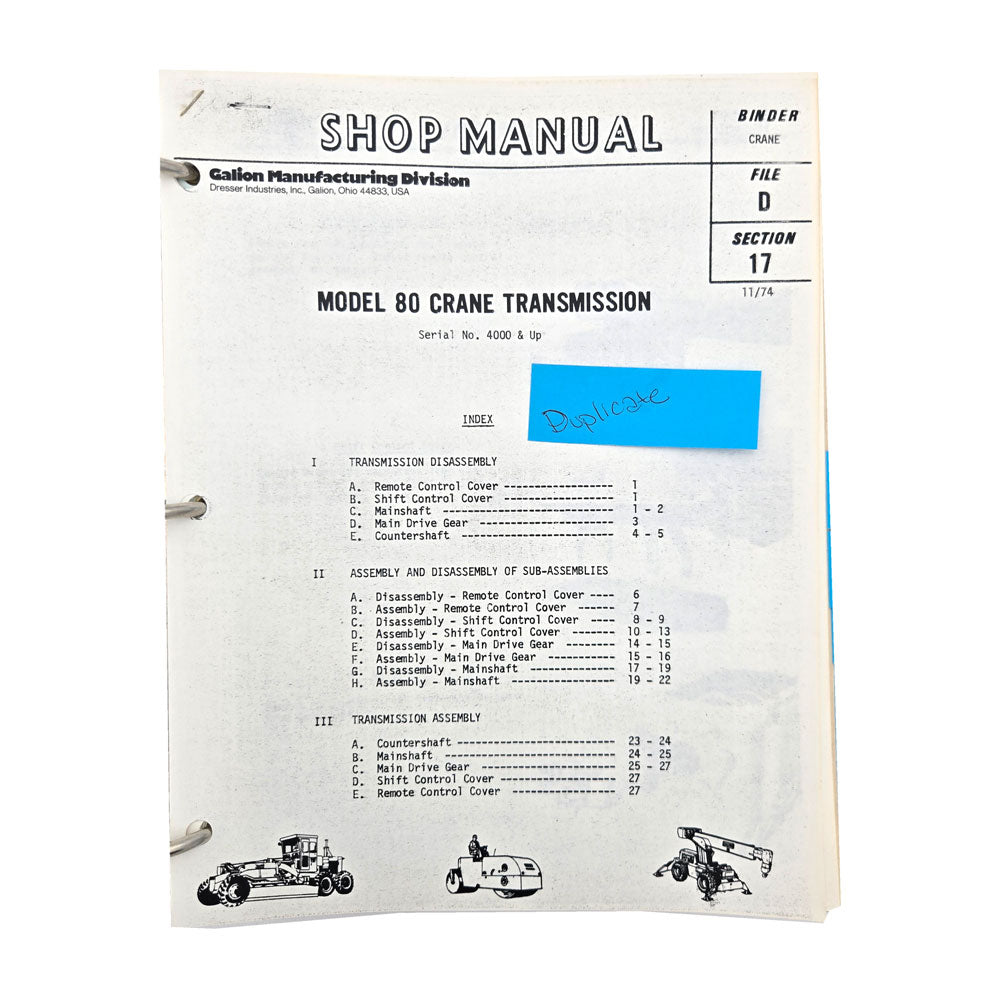

    - (Duplicate Print) Section D - 17: Model 80 Crane Transmission

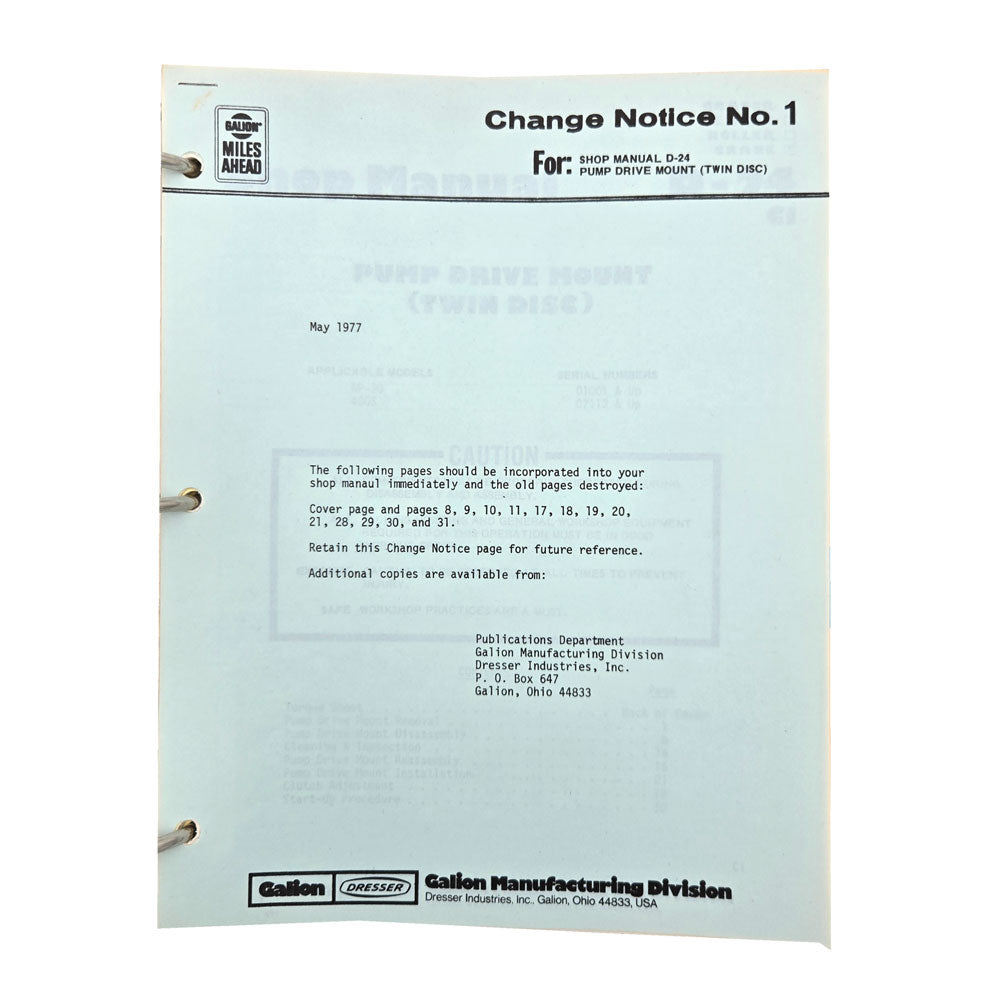

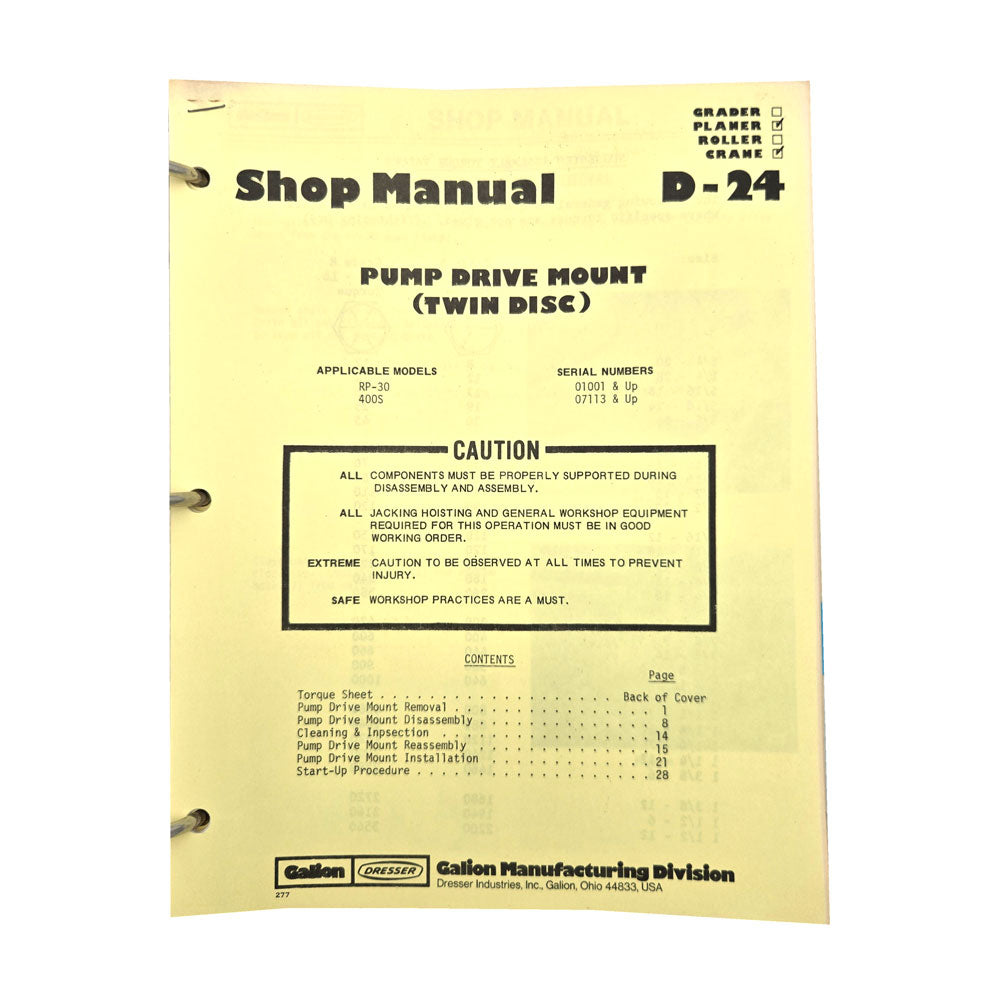

    - Change Notice No.1 | Section D - 24 C1: Pump Drive Mount (Twin Disc)

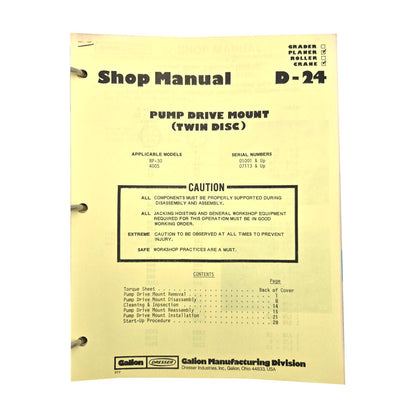

      - Section D - 24: Pump Drive Mount (Twin Disc)

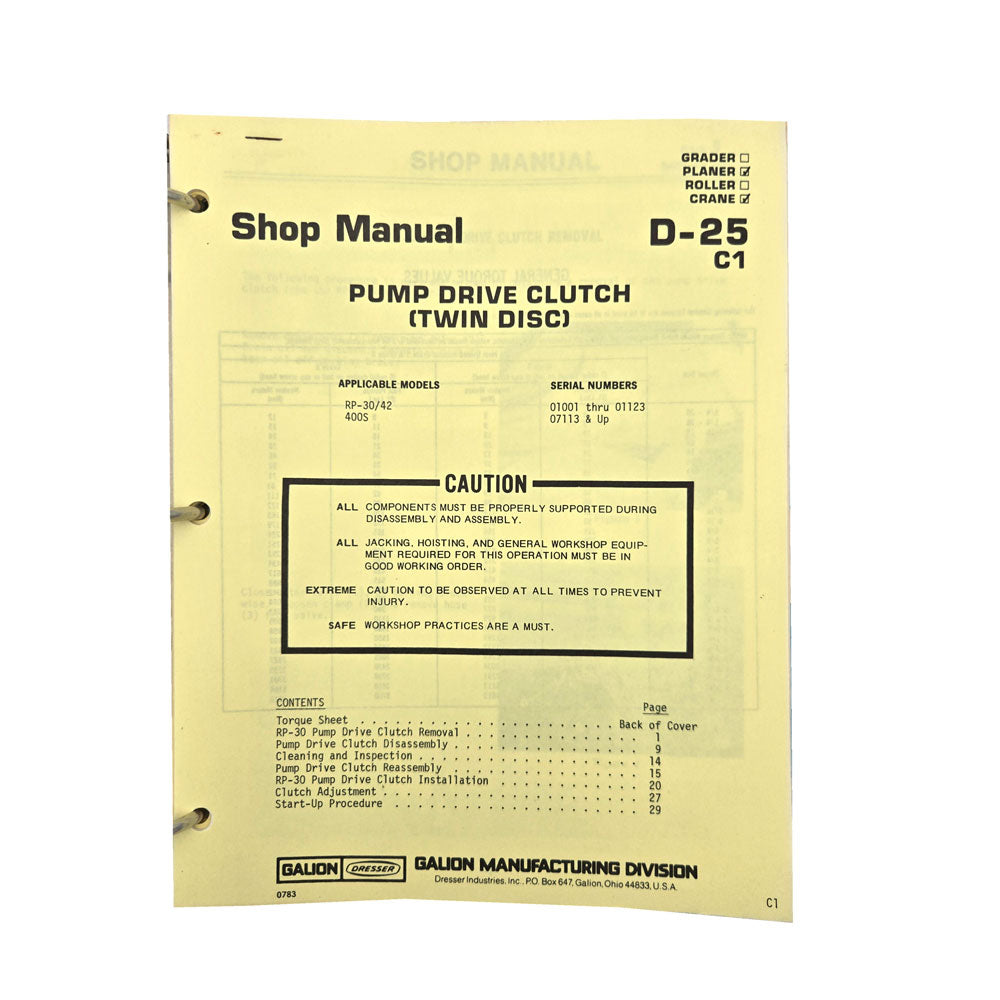

    - Section D - 25 C1: Pump Drive Clutch (Twin Disc)

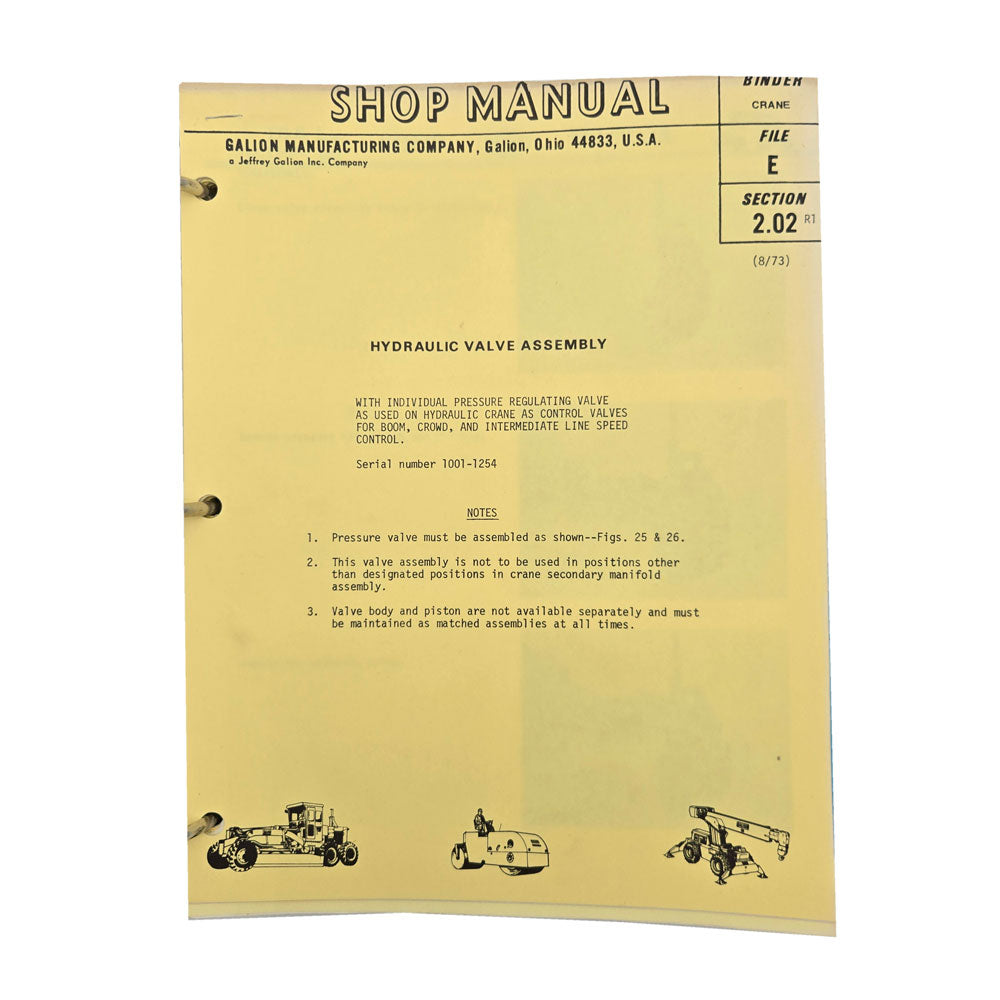

      - Section E - 2.02 R1: Hydraulic Valve Assembly

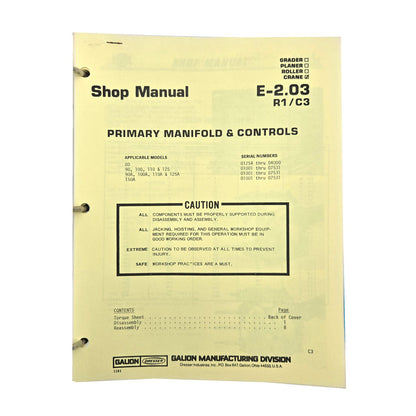

      - Section E - 2.03 R1/C3: Primary Manifold & Controls

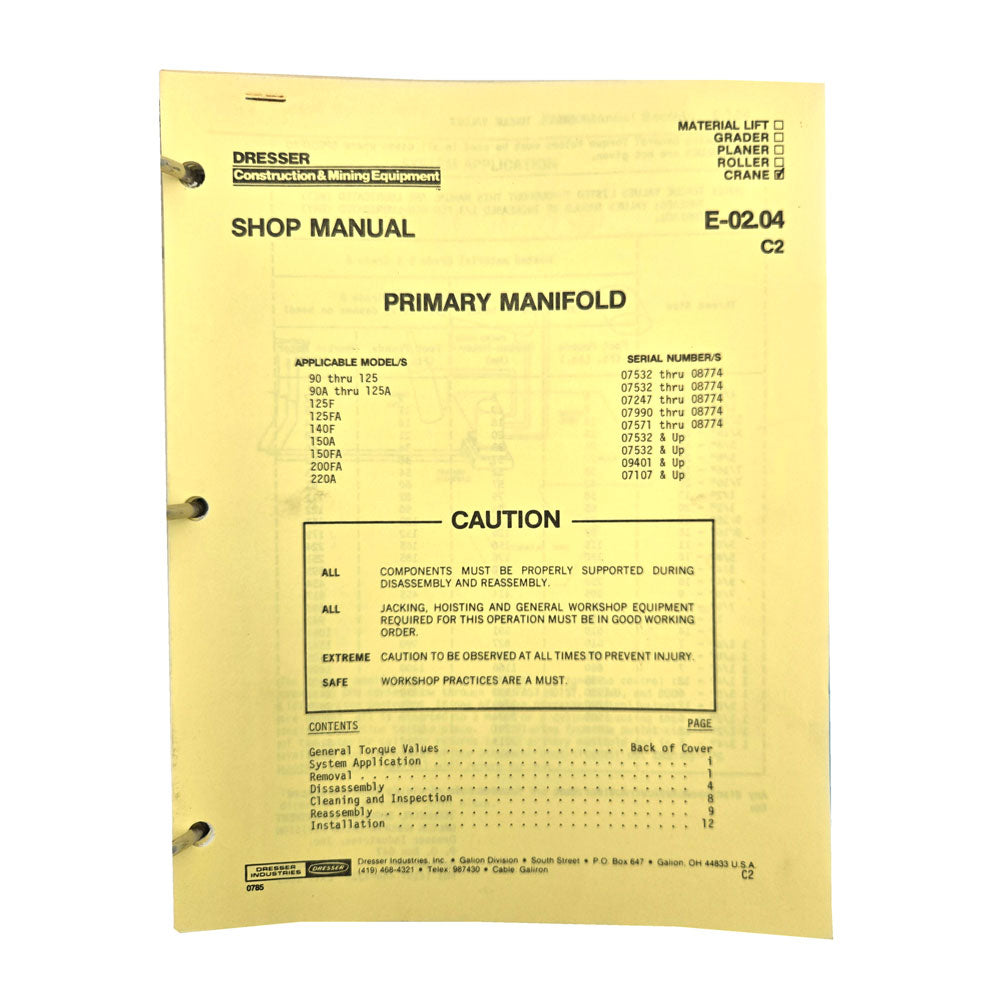

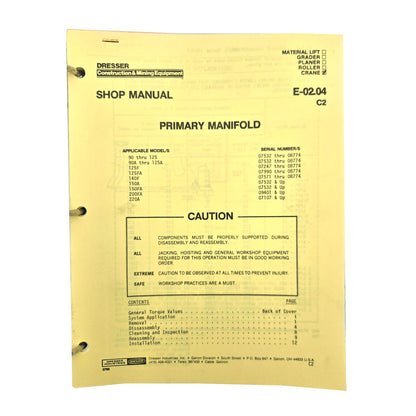

      - Section E - 02.04 C2: Primary Manifold

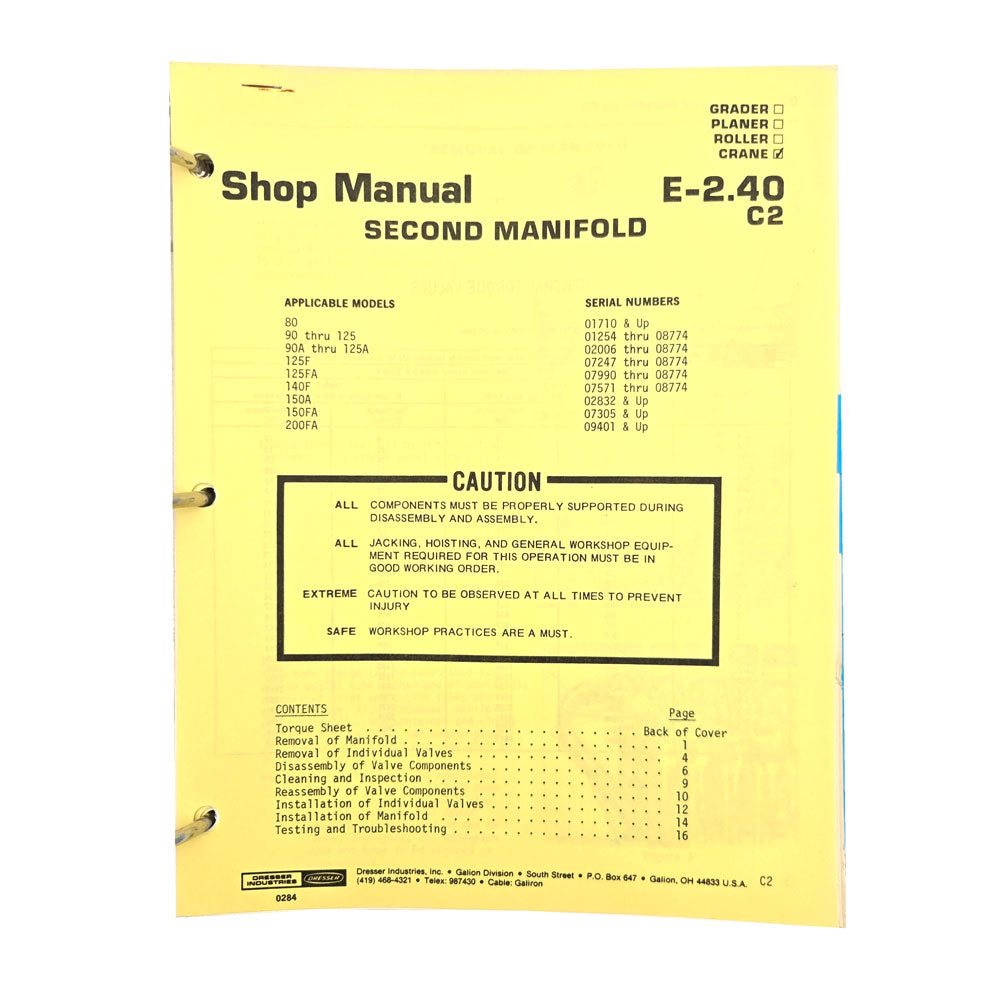

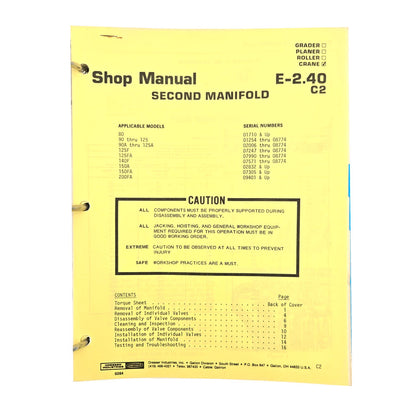

      - Section E - 2.40 C2: Second Manifold

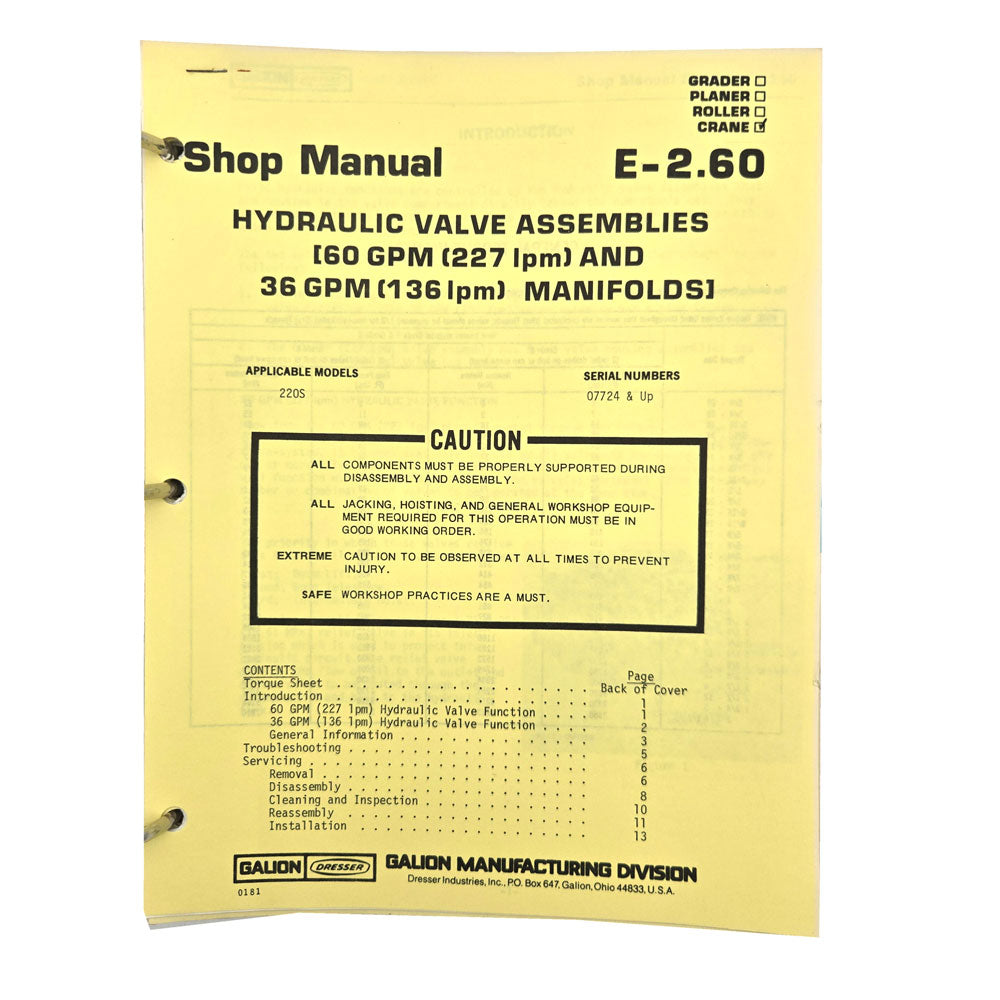

      - Section E - 2.60: Hydraulic Valve Assemblies [60 GPM (227 IPM) and 36 GPM (136IPM) Manifolds]

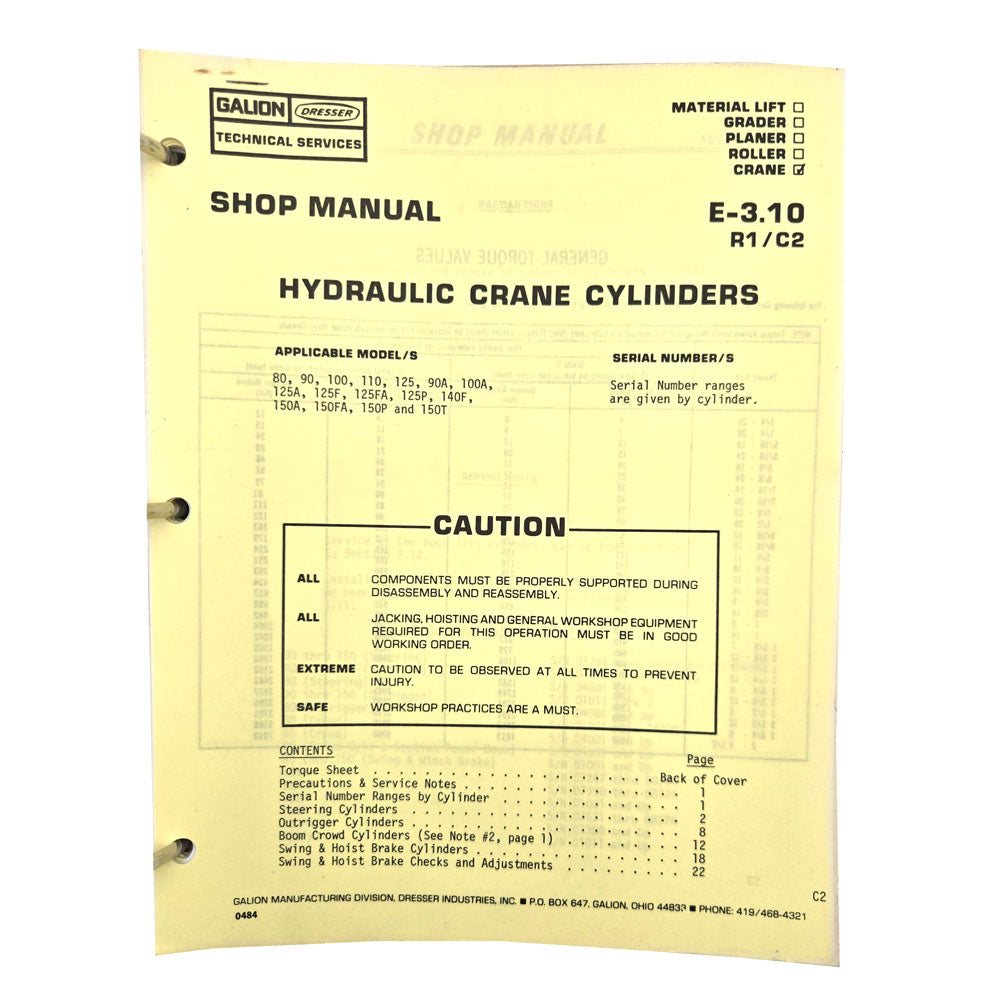

      - Section E - 3.10 R1/C2: Hydraulic Crane Cylinders

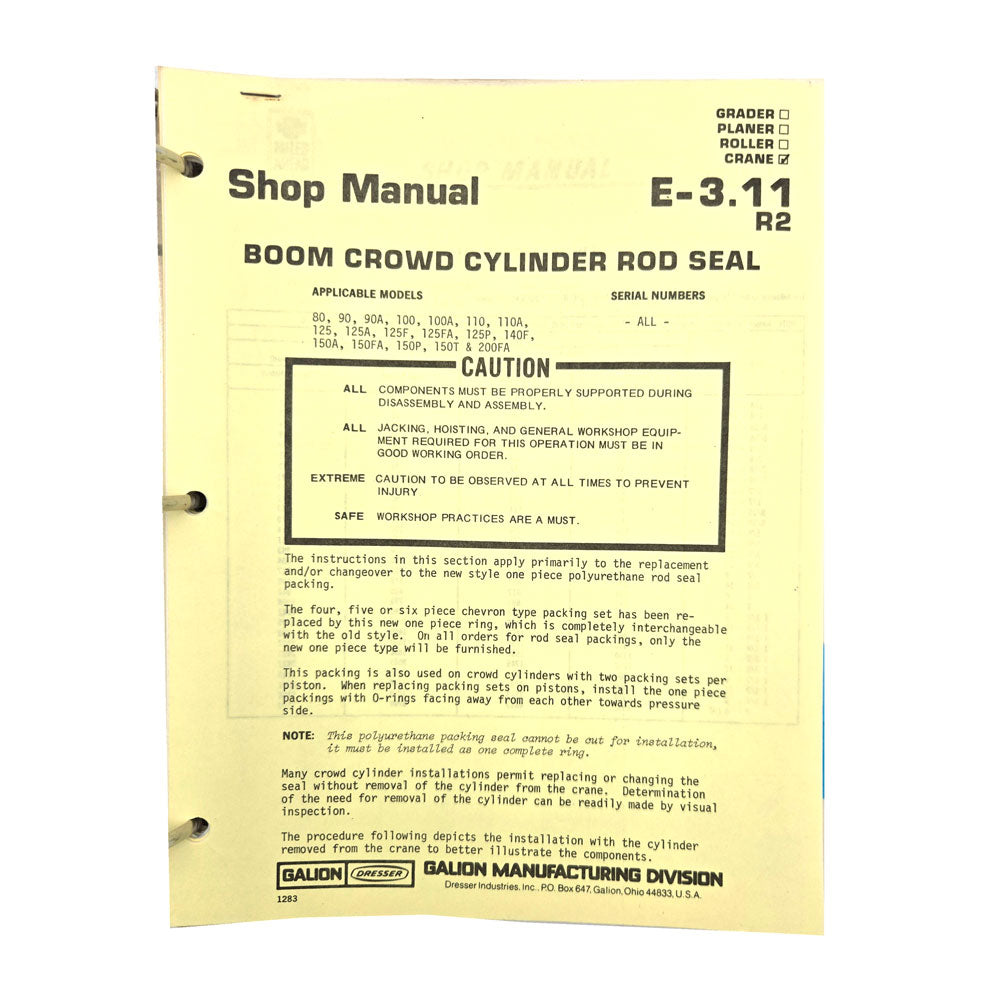

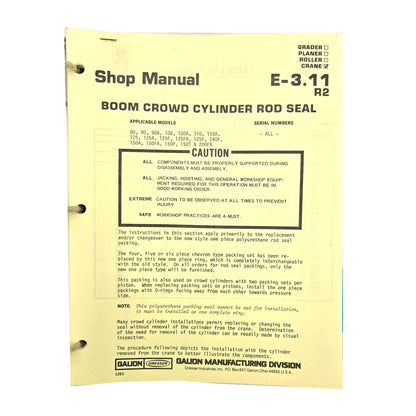

      - Section E - 3.11 R2: Boom Crowd Cylinder Rod Seal

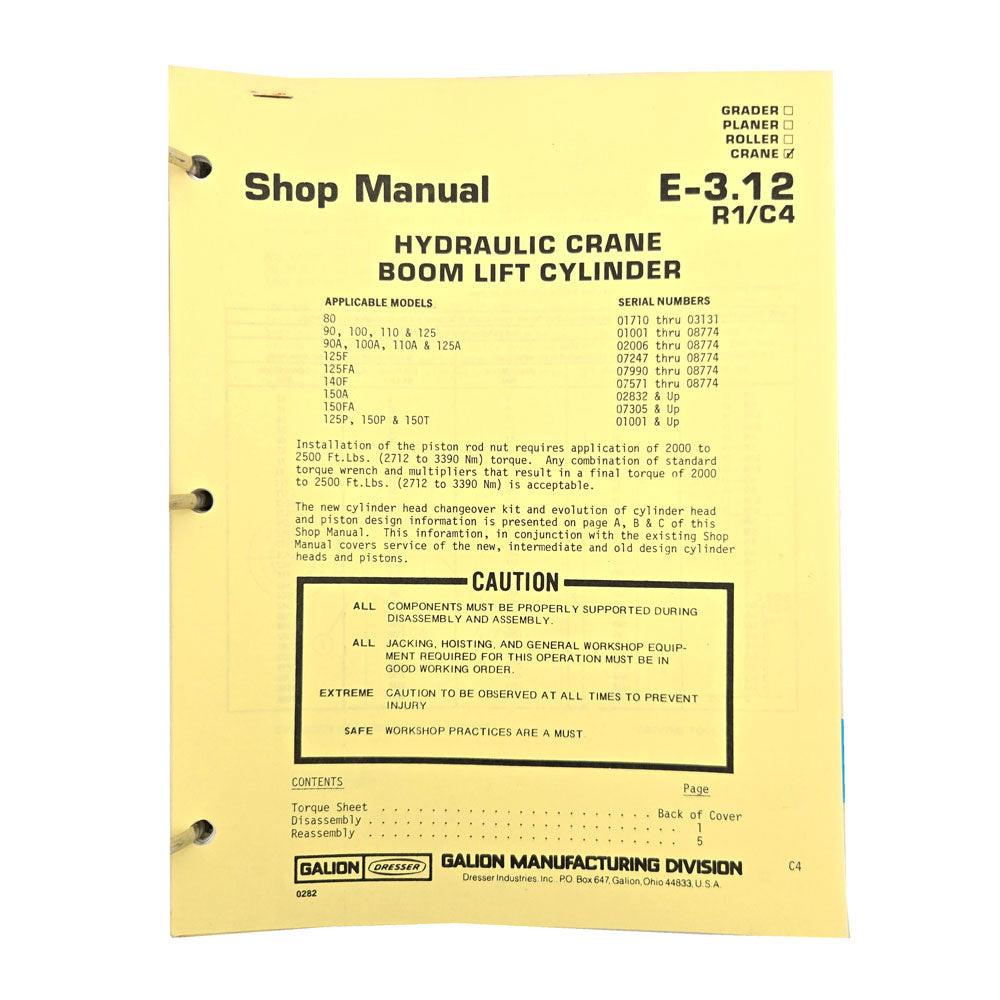

      - Section E - 3.12 R1/C4: Hydraulic Crane Boom Lift Cylinder

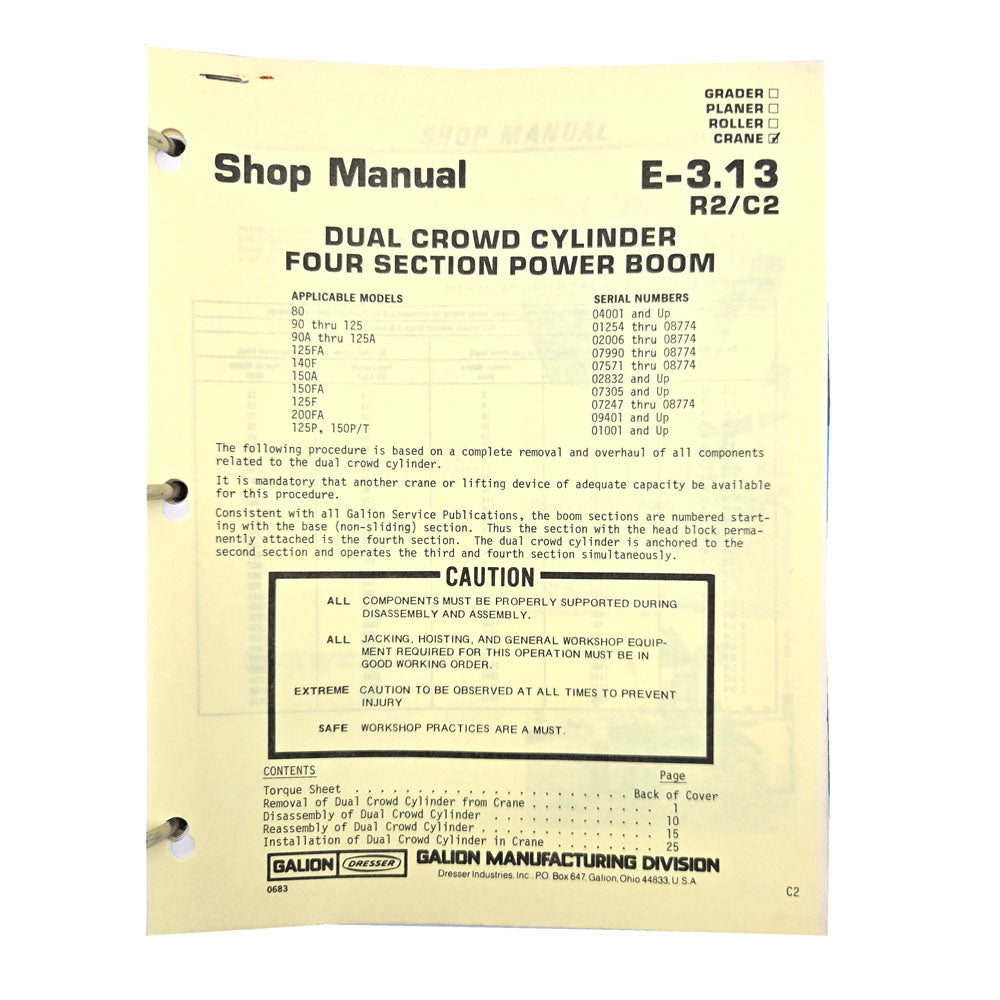

      - Section E - 3.13: Dual Crowd Cylinder Four-Section Power Boom

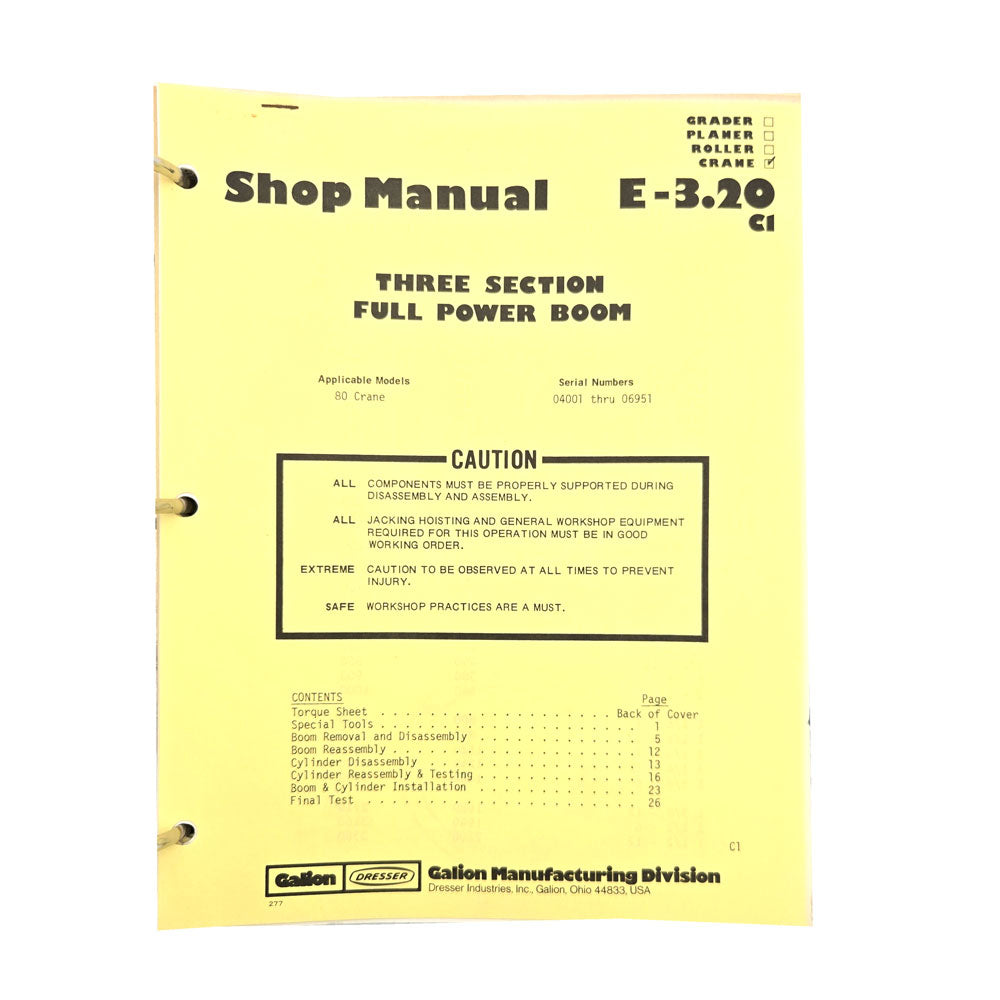

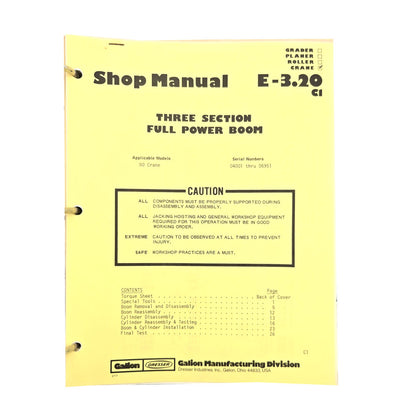

      - Section E - 3.20 C1: Three Section Full Power Boom

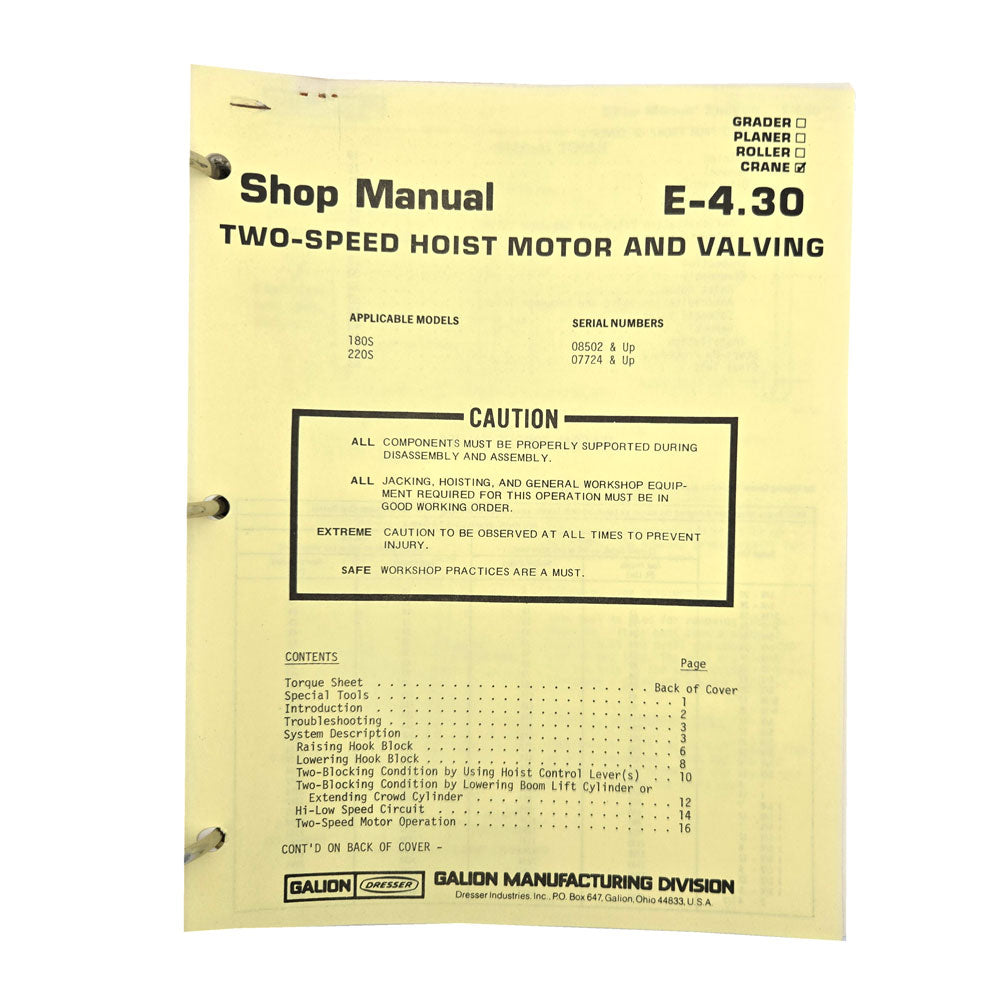

      - Section E - 4.30: Two-speed Hoist Motor and Valving

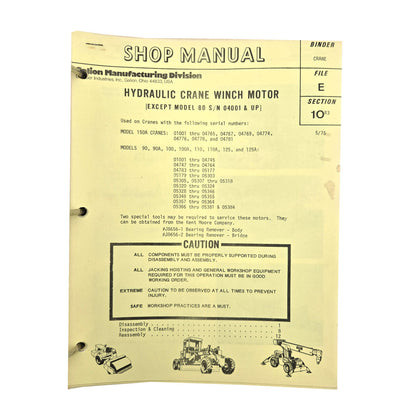

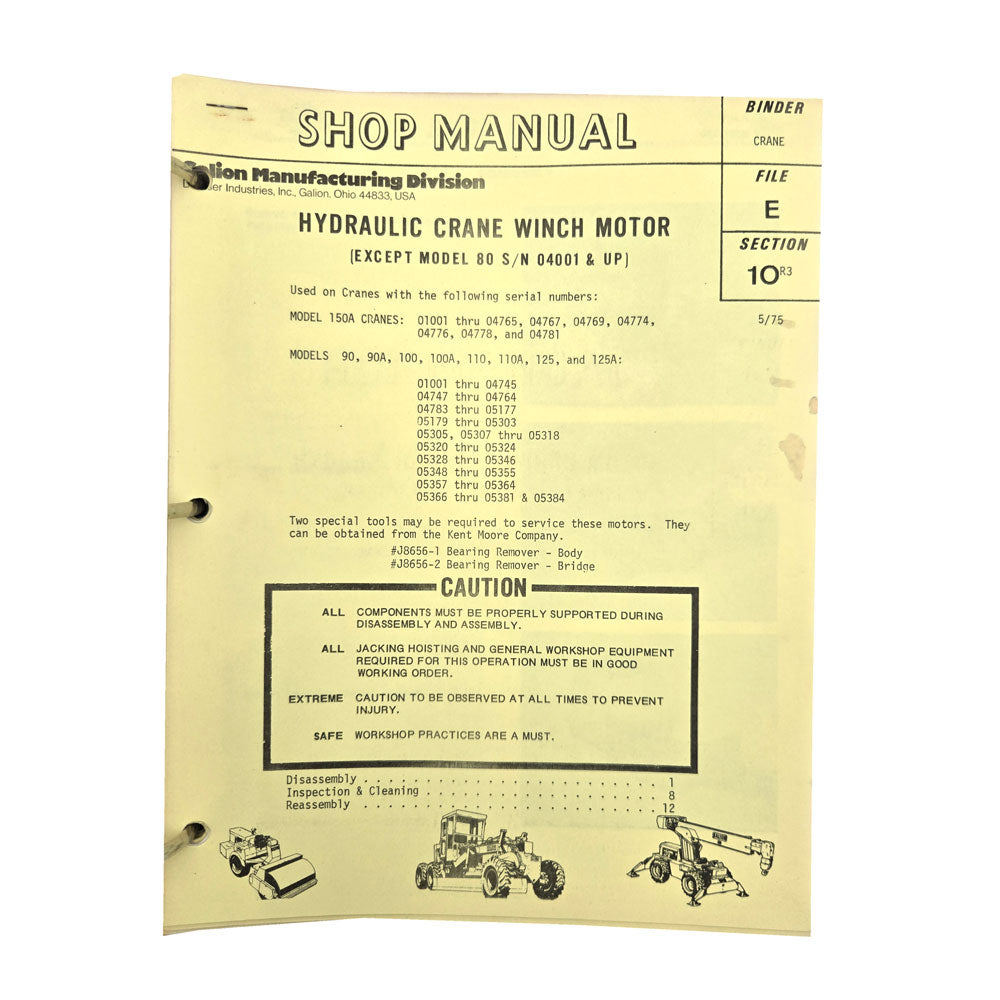

      - Section E - 10 R3: Hydraulic Crane Winch Motor (Except Model 80 S/N 04001 & Up)

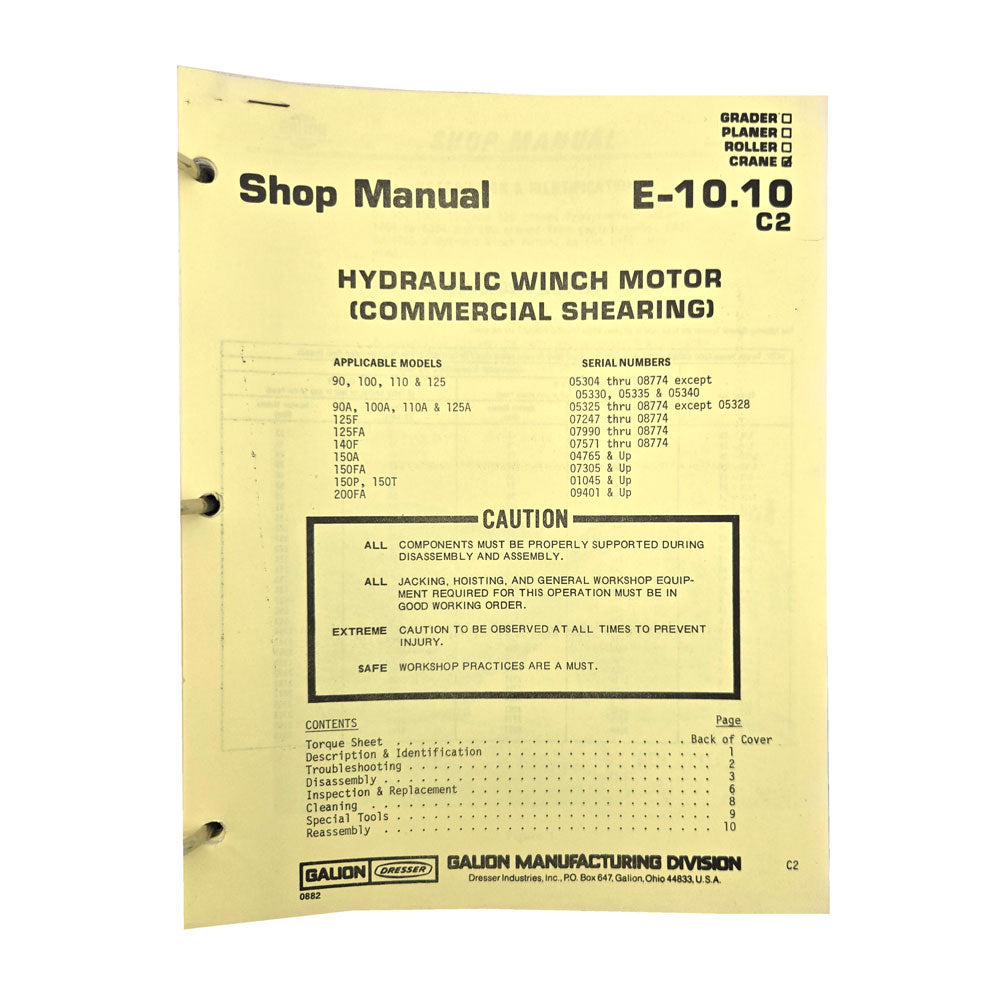

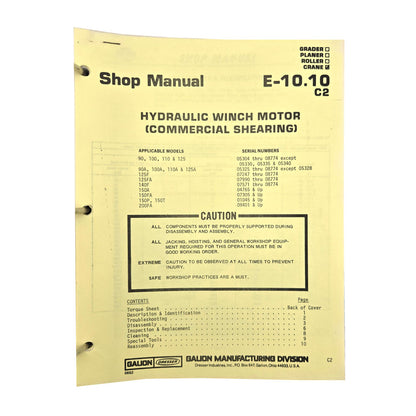

      - Section E - 10.10 C2: Hydraulic Winch Motor (Commercial Shearing)

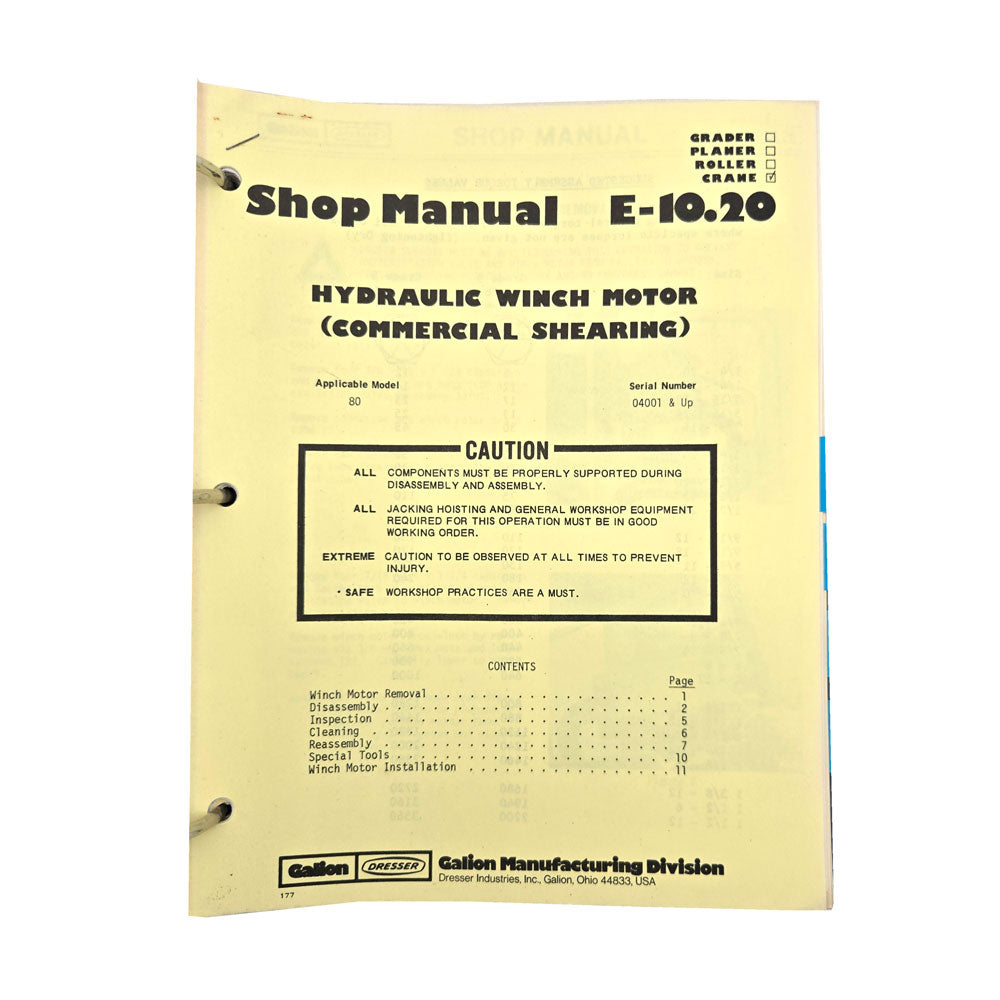

      - Section E - 10.20: Hydraulic Winch Motor (Commercial Shearing)

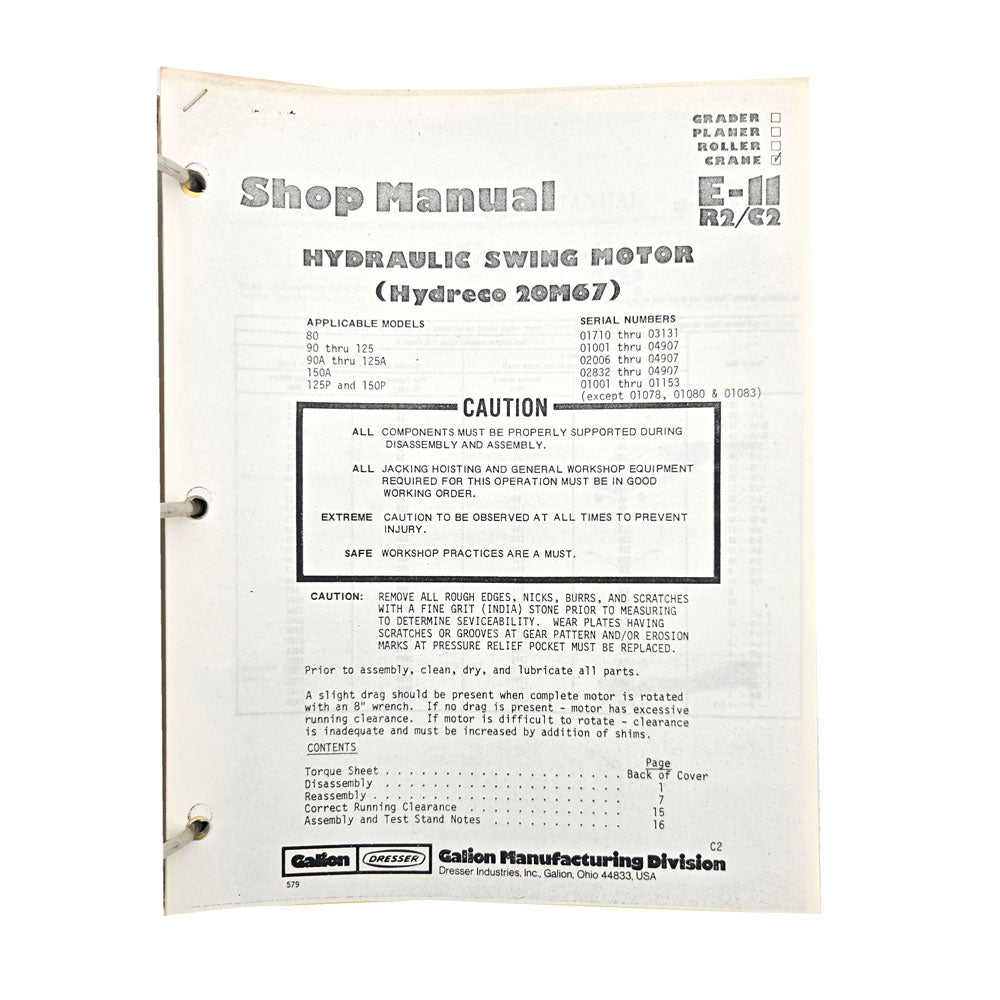

      - Section E - 11 R2/C2: Hydraulic Swing Motor (Hydreco 20M67)

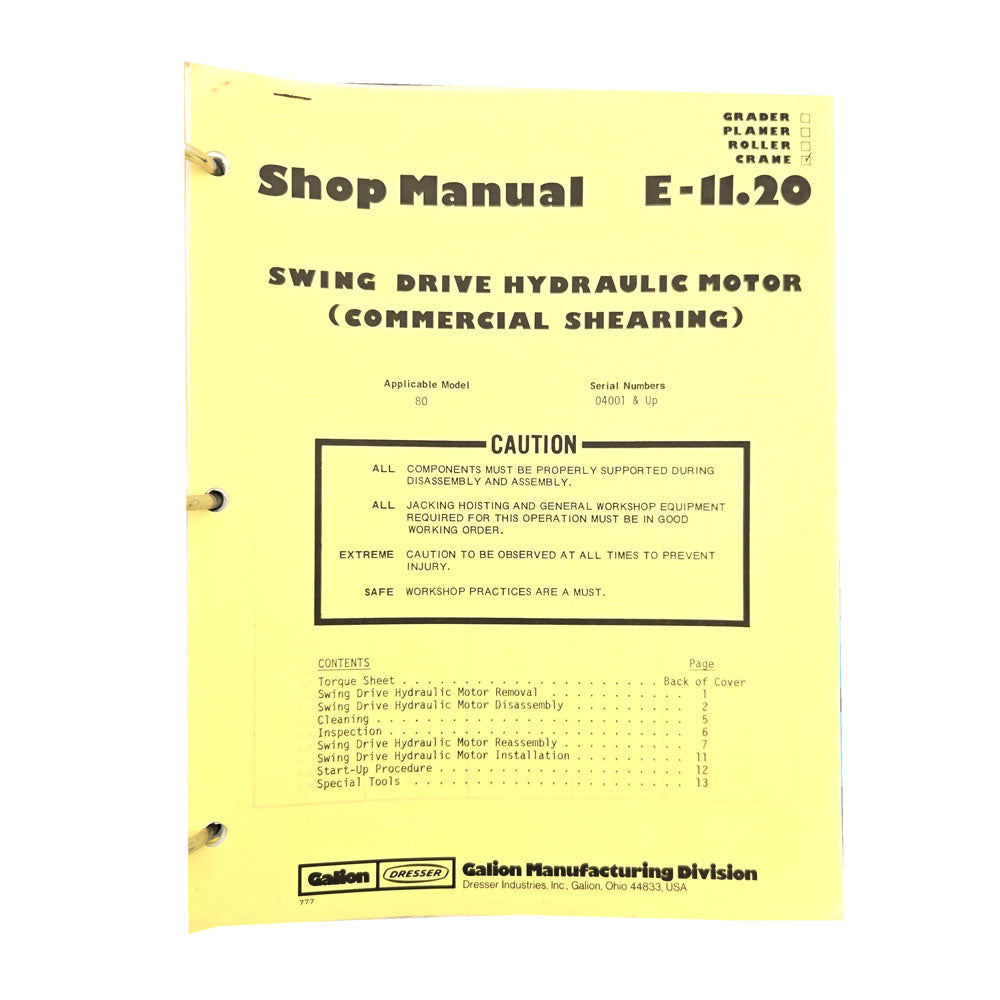

      - Section E - 11.20: Swing Drive Hydraulic Motor (Commercial Shearing)

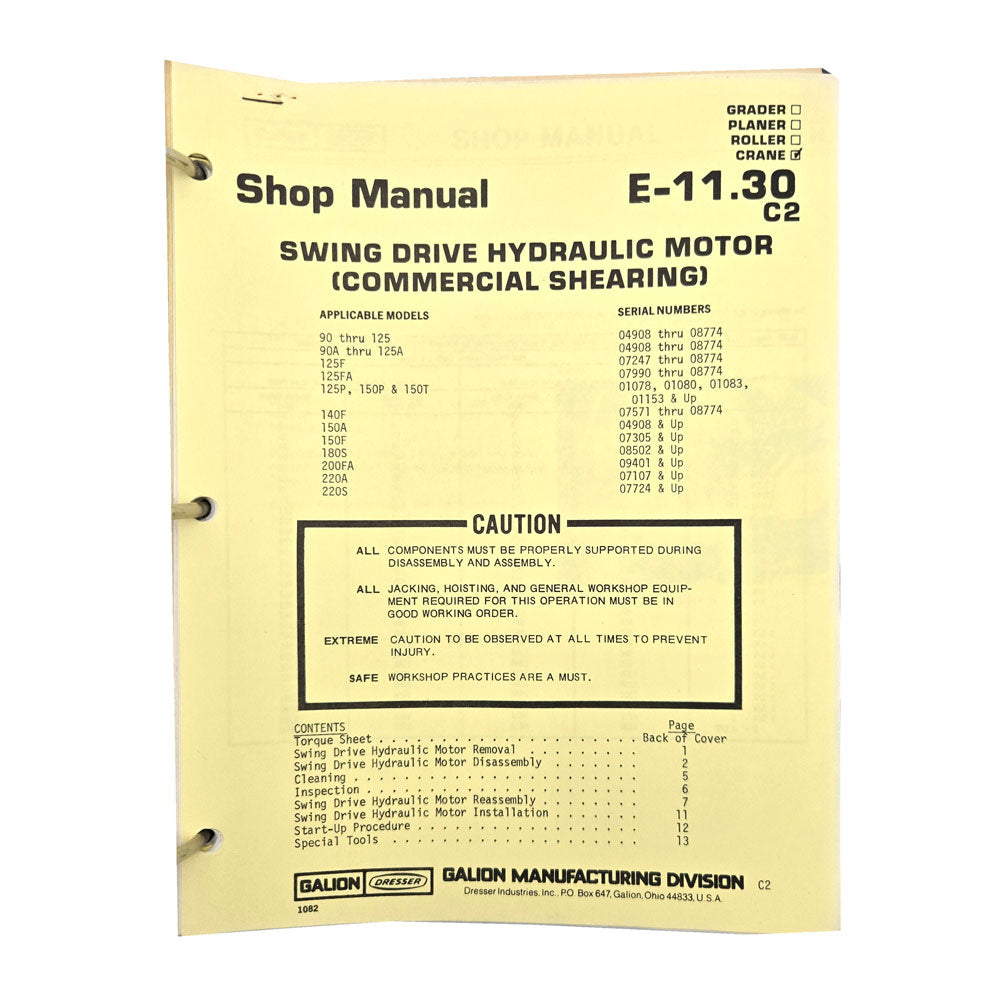

      - Section E-11.30 C2: Swing Drive Hydraulic Motor (Commercial Shearing)

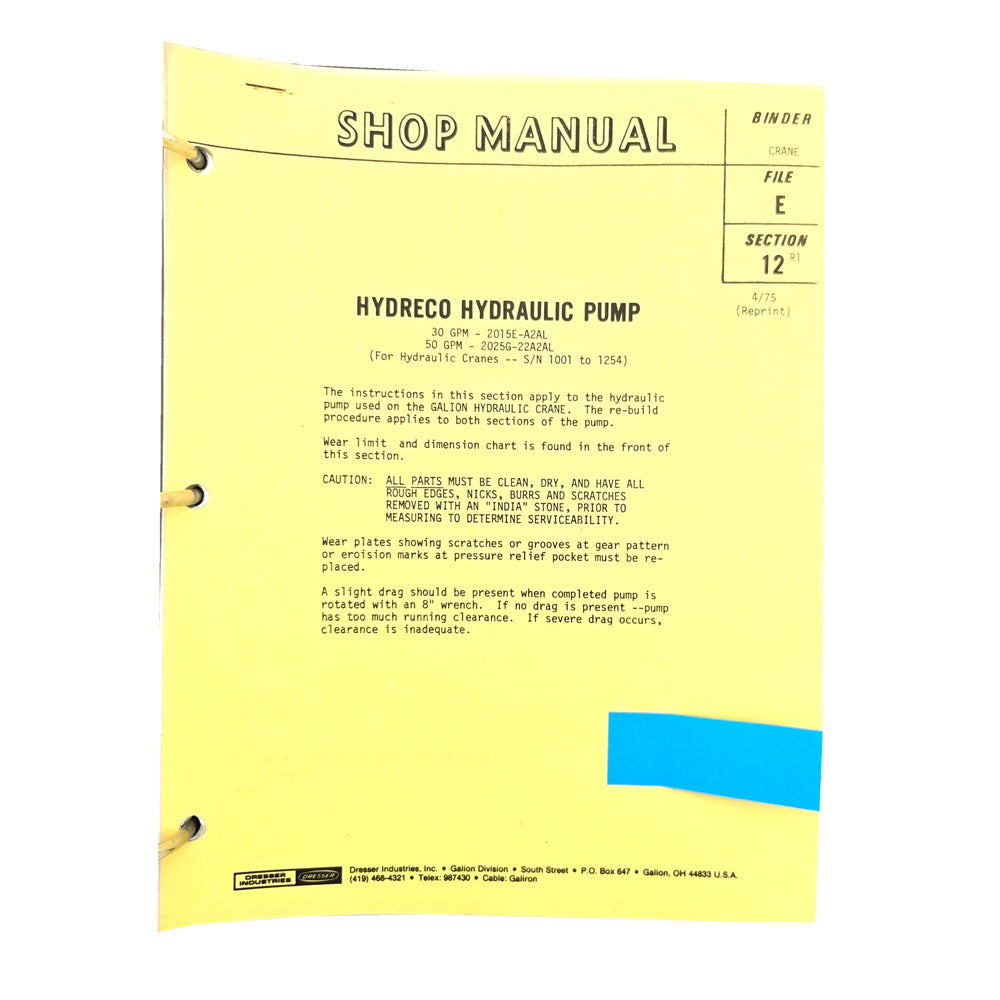

      - Section E - 12 R1: Hydreco Hydraulic Pump

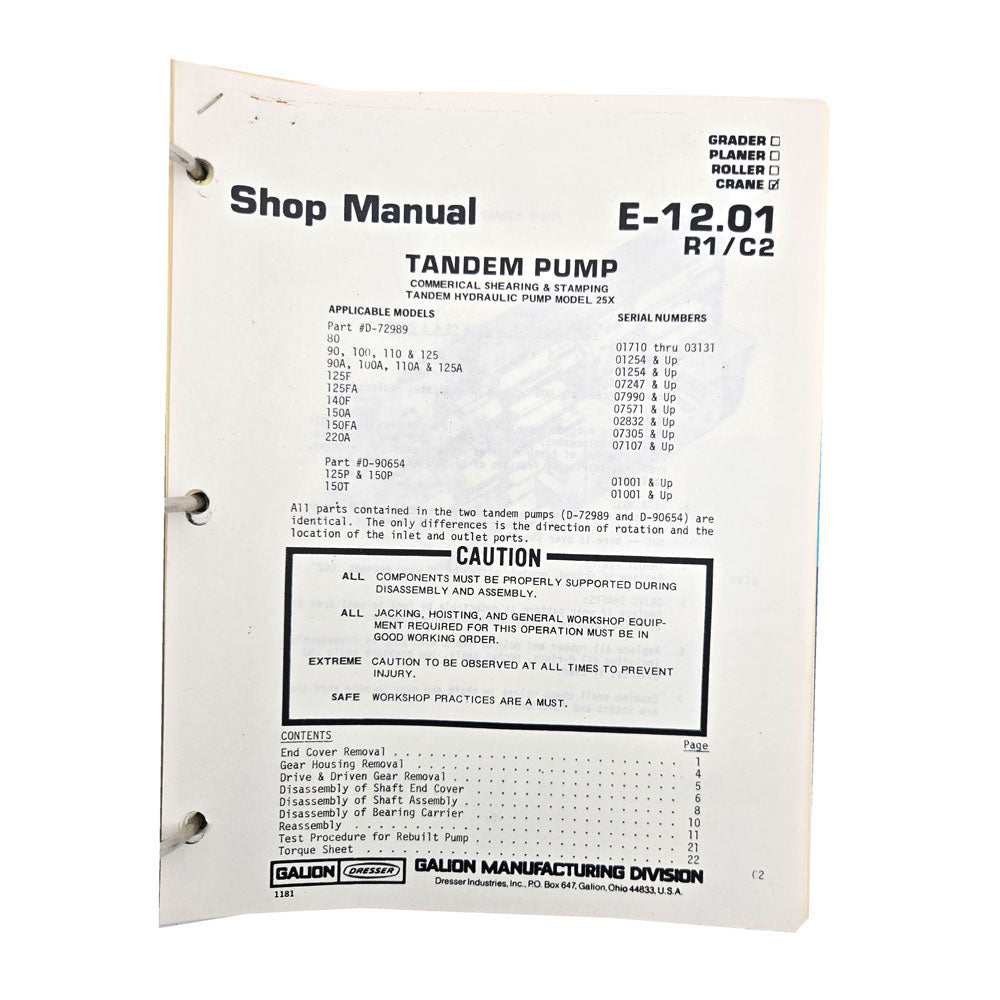

      - Section E - 12.01 R1/C2: Tandem Pump - Commercial Shearing and Stamping Tandem Hydraulic Pump Model 25X

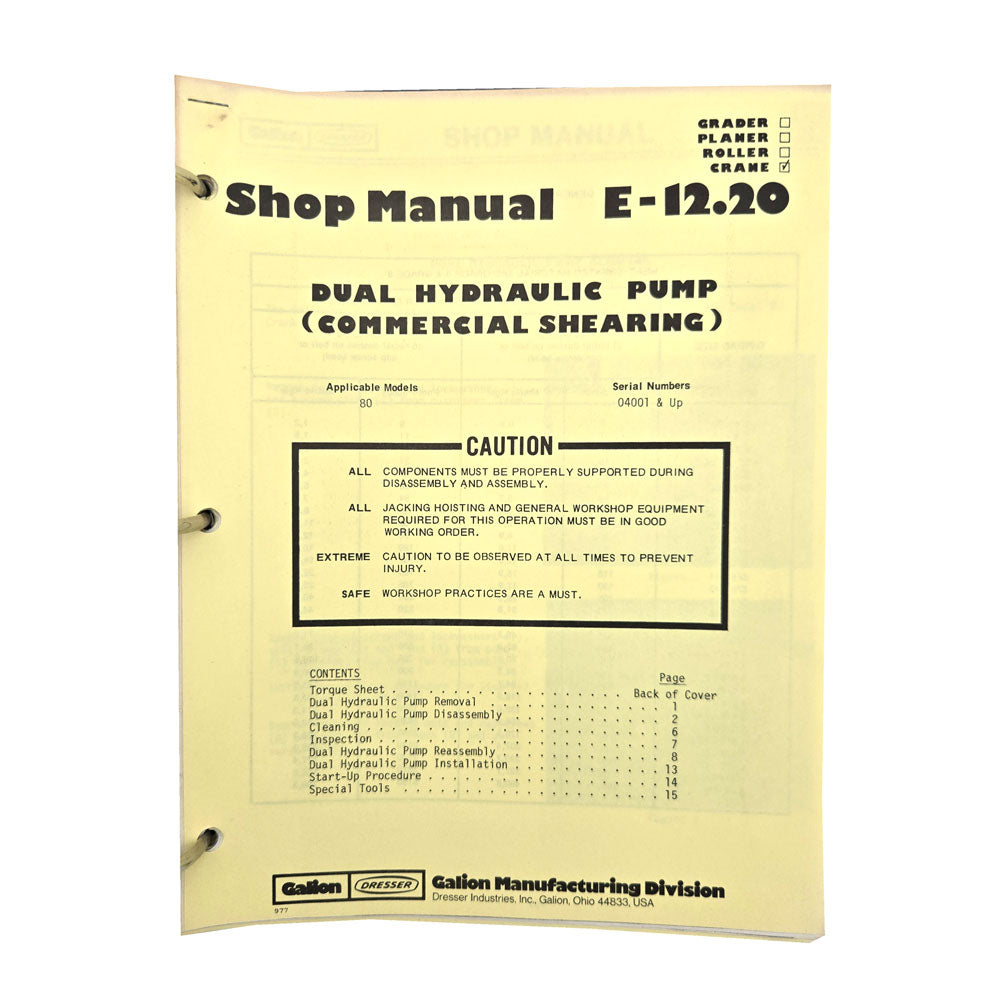

      - Section E - 12.20: Duel Hydraulic Pump (Commercial Shearing)

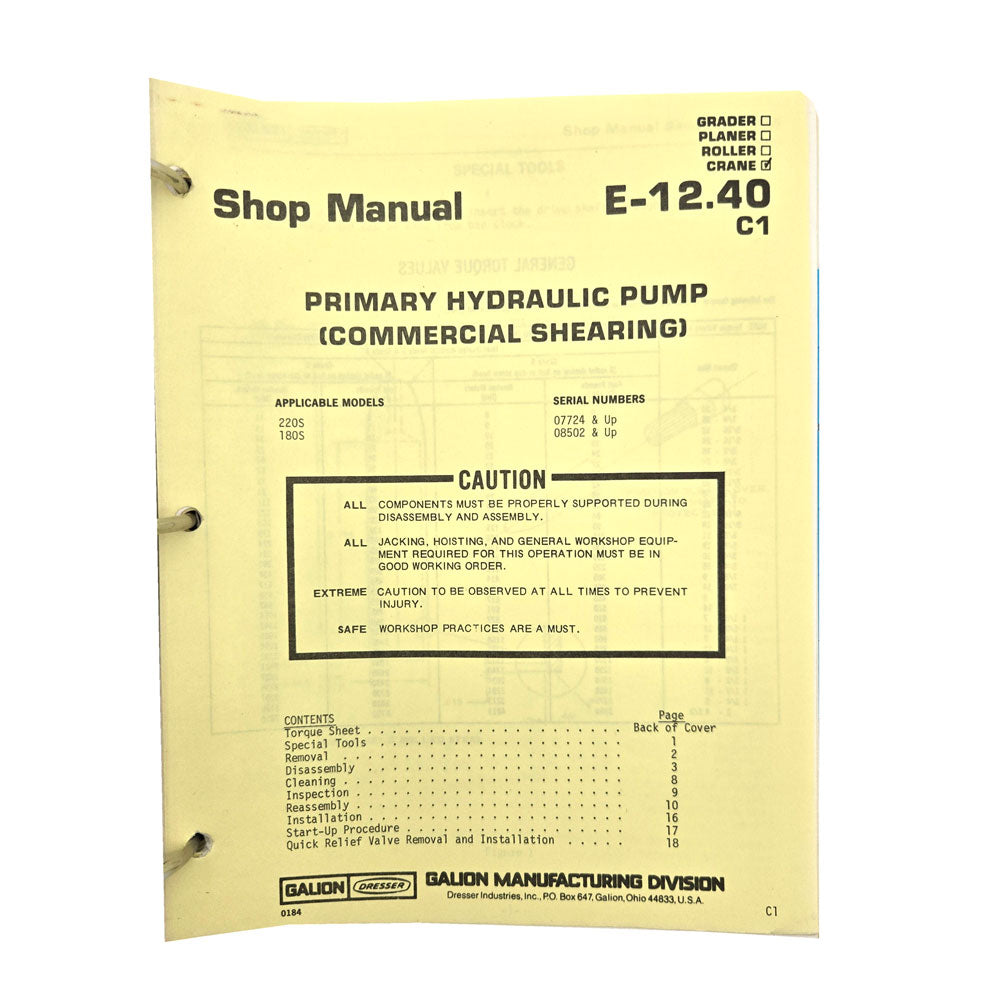

      - Section E - 12.40 C1: Primary Hydraulic Pump (Commercial Shearing)

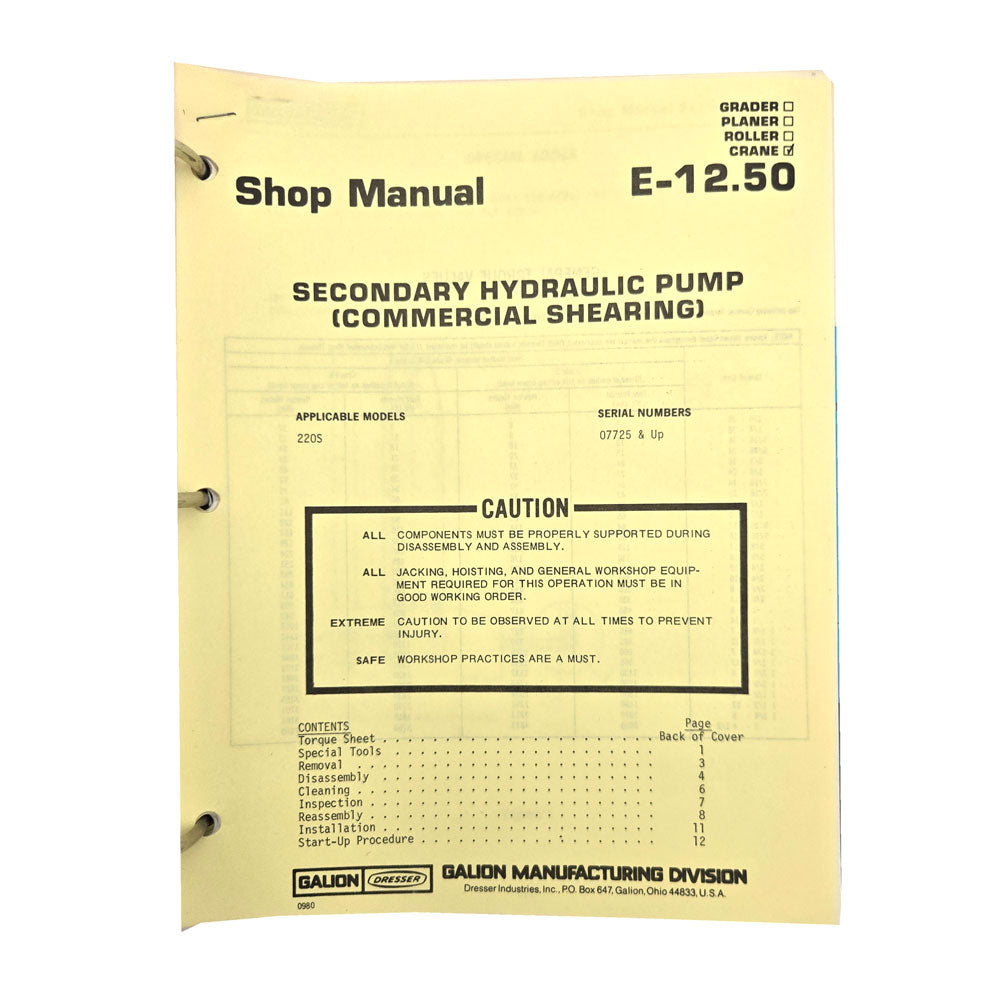

      - Section E - 12.50: Secondary Hydraulic Pump (Commercial Shearing)

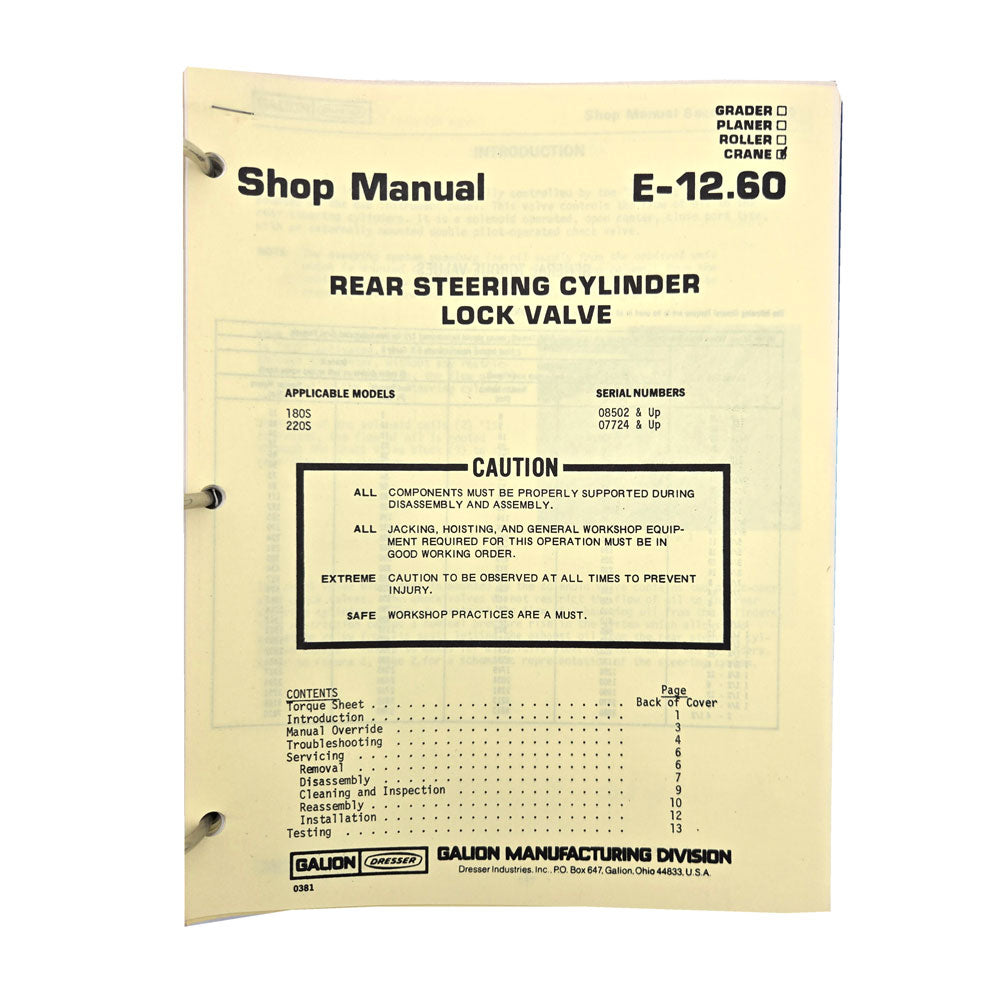

      - Section E - 12.60: Rear Steering Cylinder Lock Valve

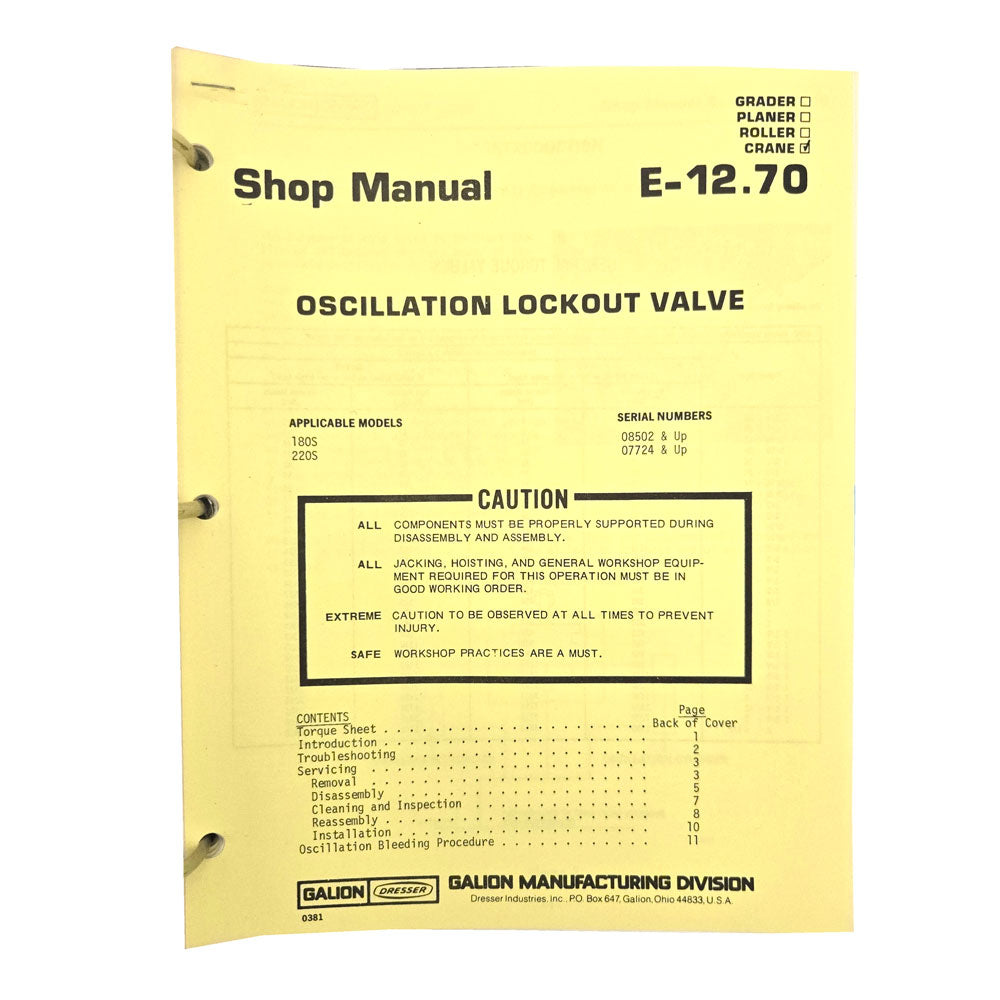

      - Section E - 12.70: Oscillation Lockout Valve

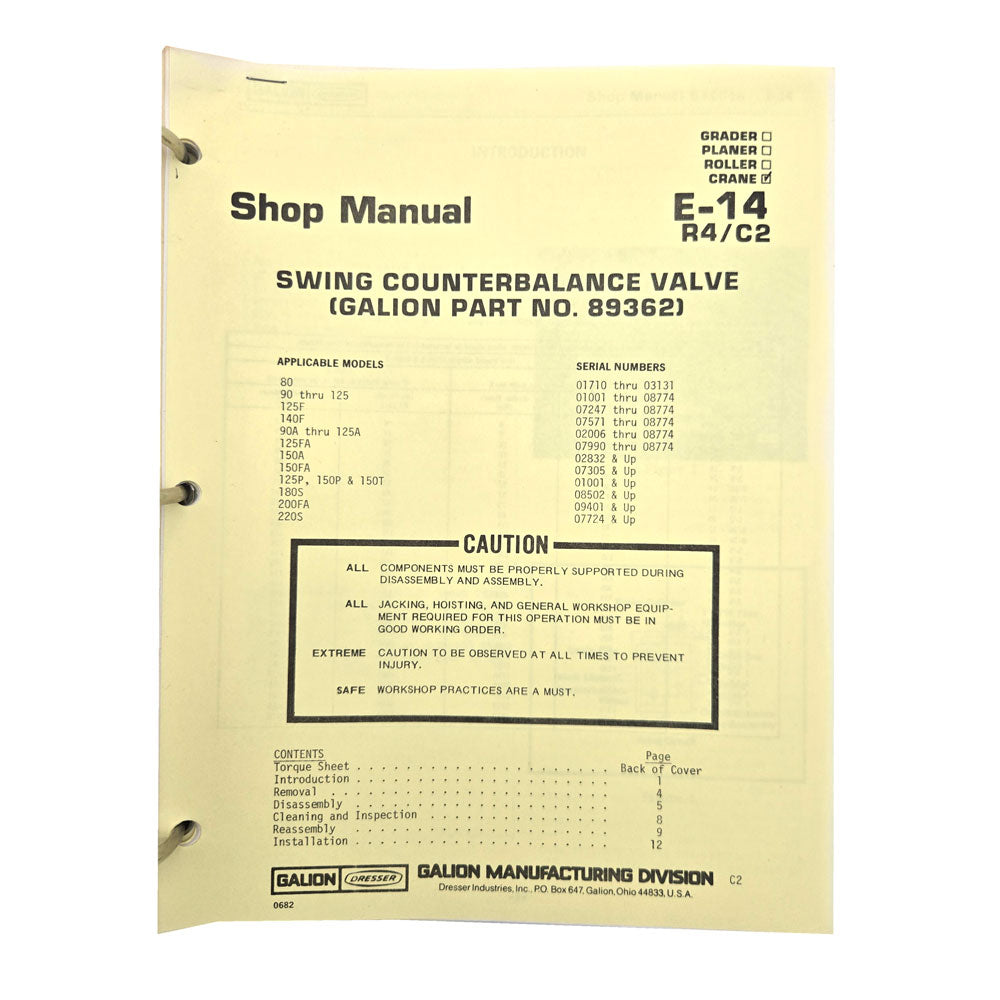

      - Section E- 14 R4/C2: Swing Counterbalance Valve (GALION Part No.893621)

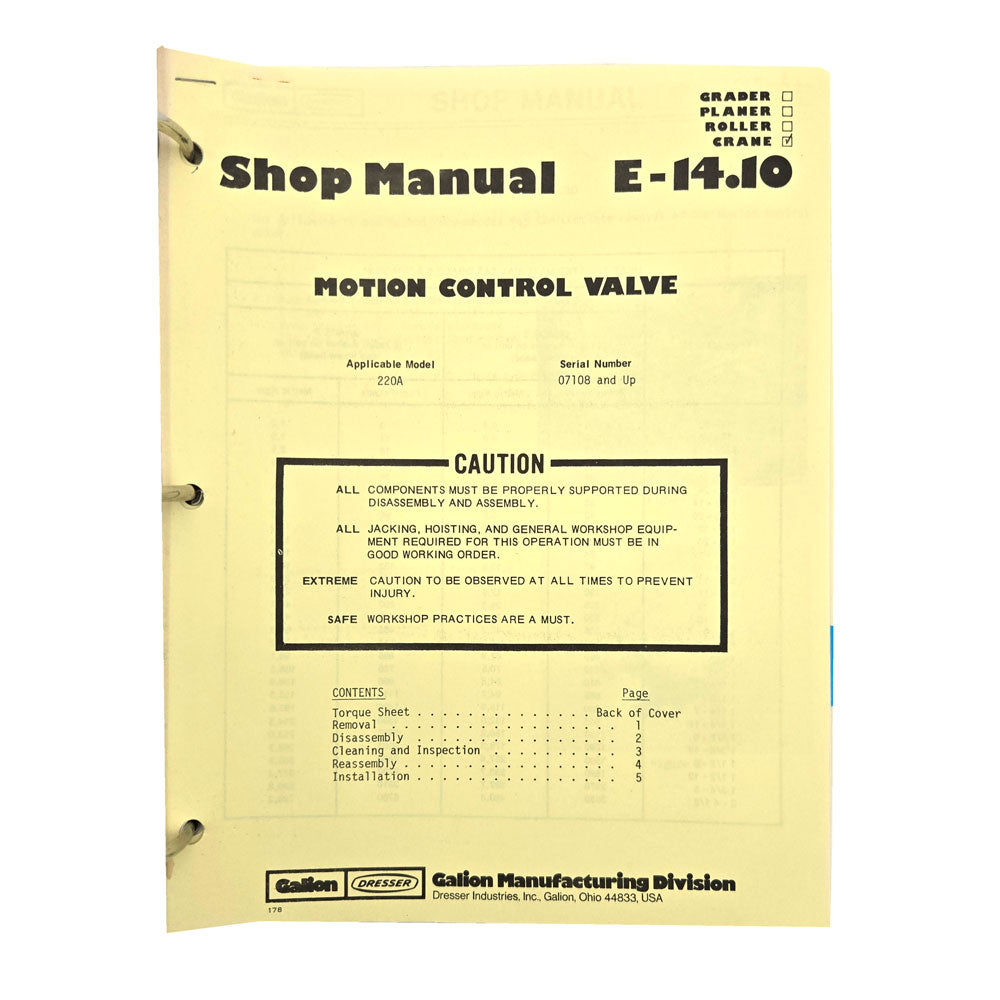

      - Section E - 14.10: Motion Control Valve

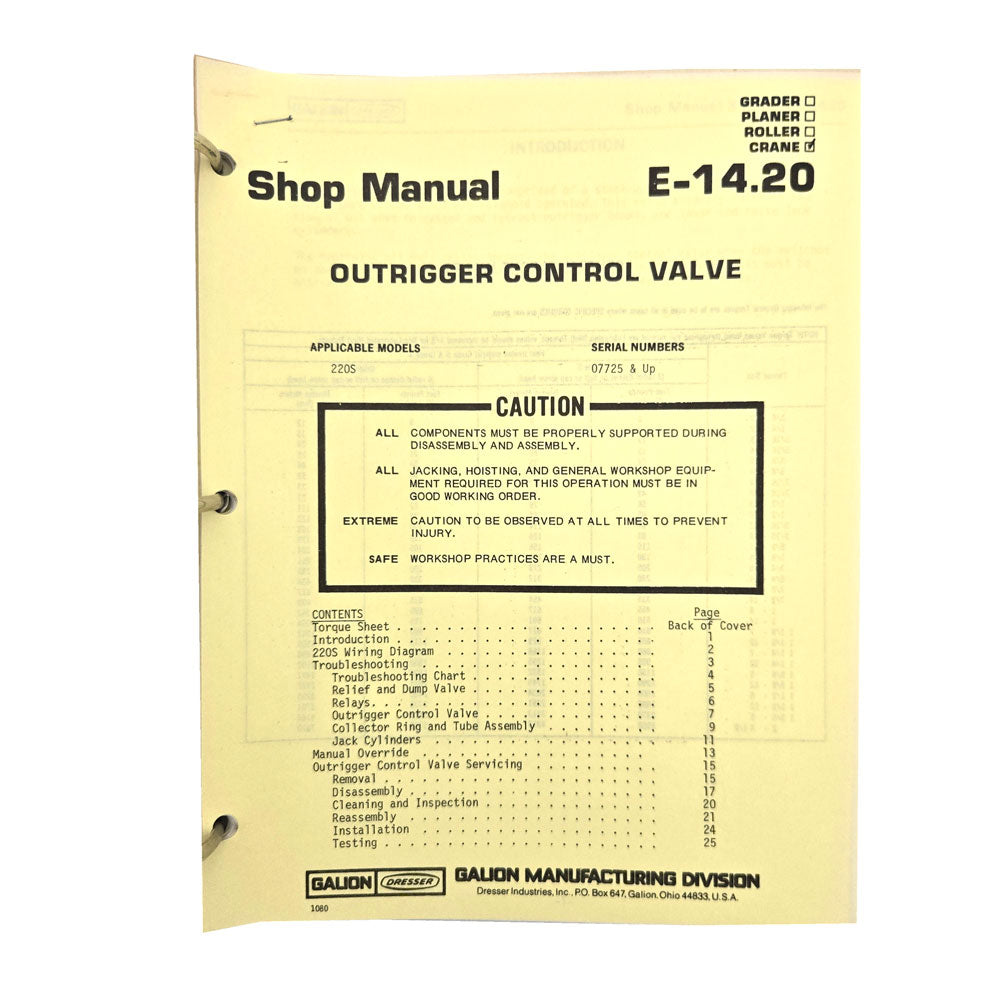

      - Section E - 14.20: Outrigger Control Valve

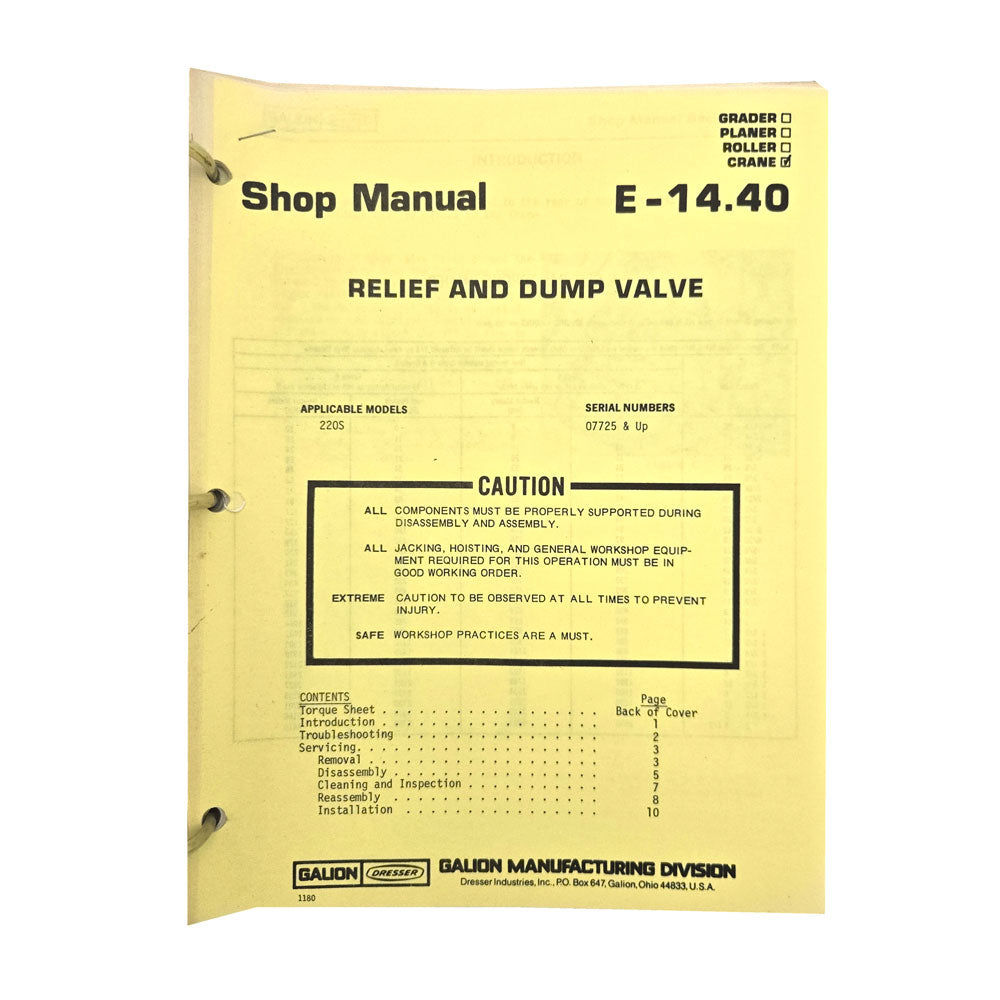

      - Section E - 14.40: Relief and Dump Valve

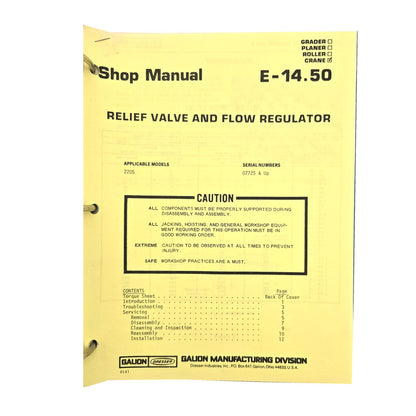

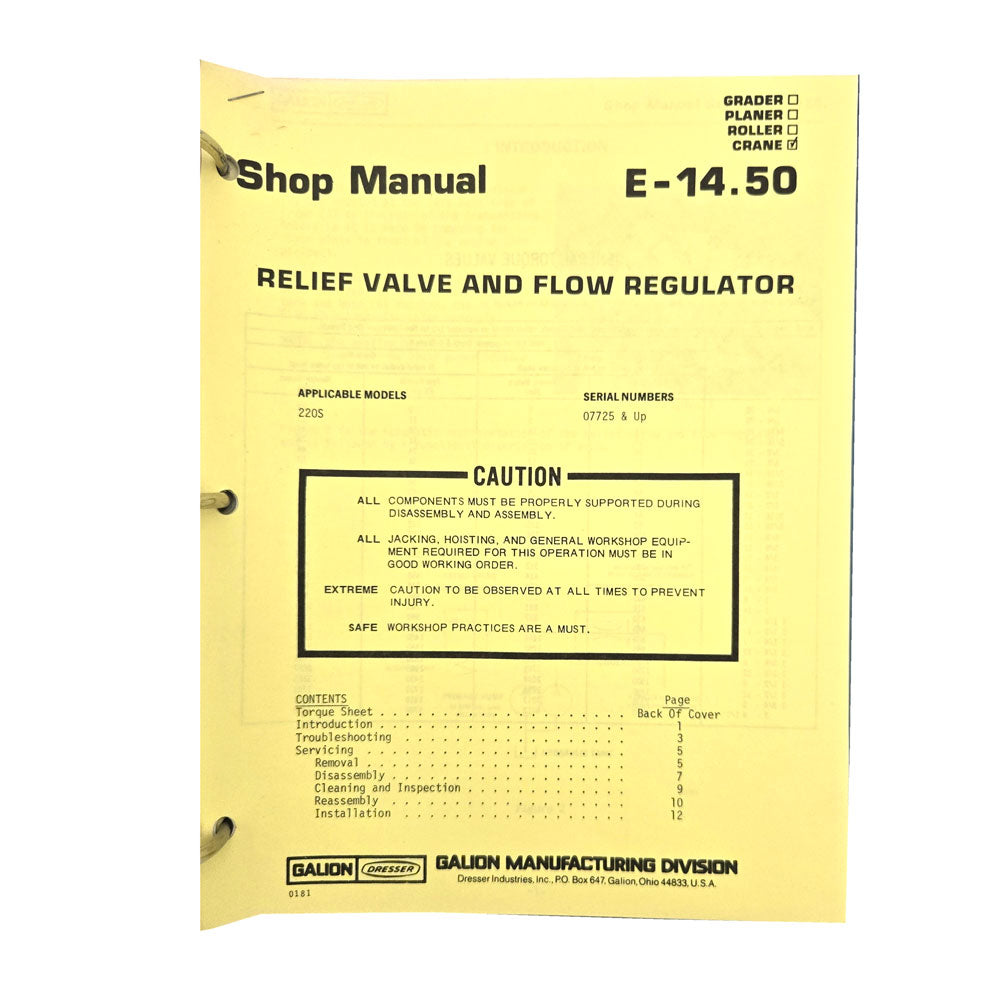

      - Section E - 14.50: Relief Valve and Flow Regulator

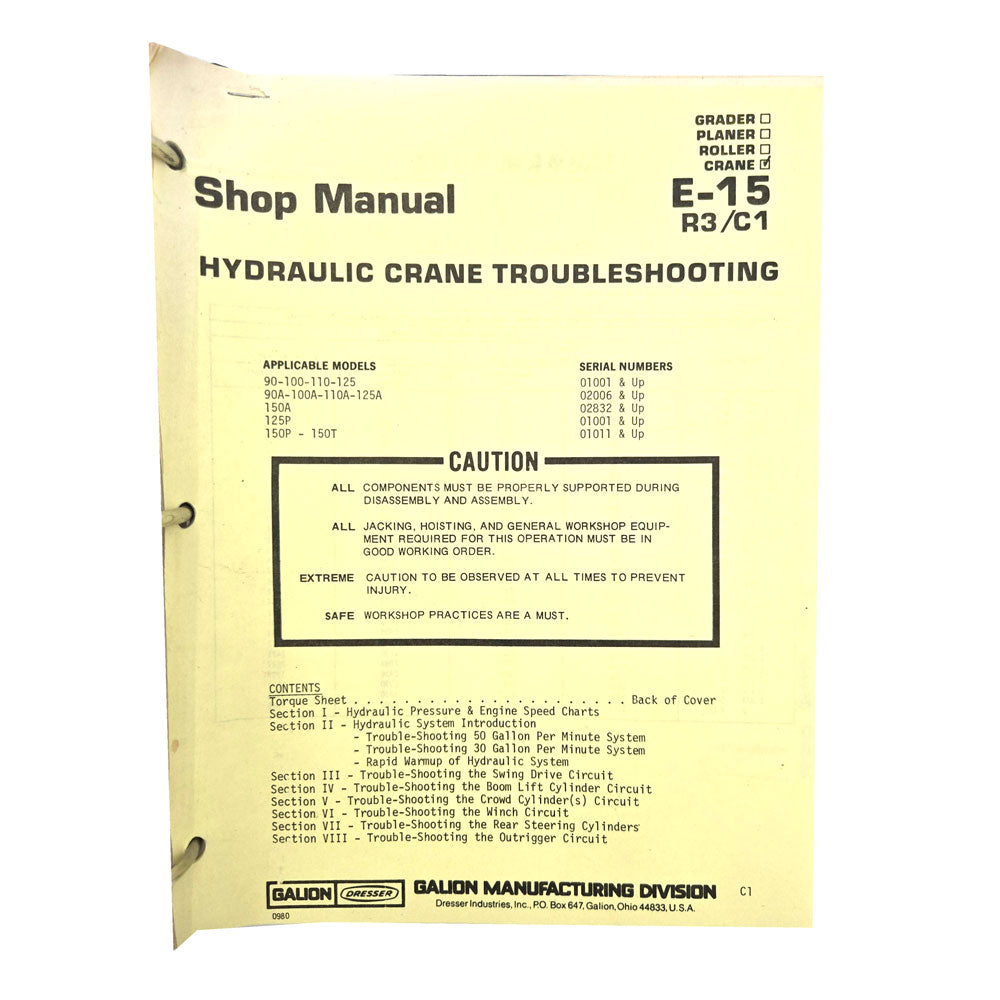

      - Section E - 15 R3/C1: Hydraulic Crane Troubleshooting
