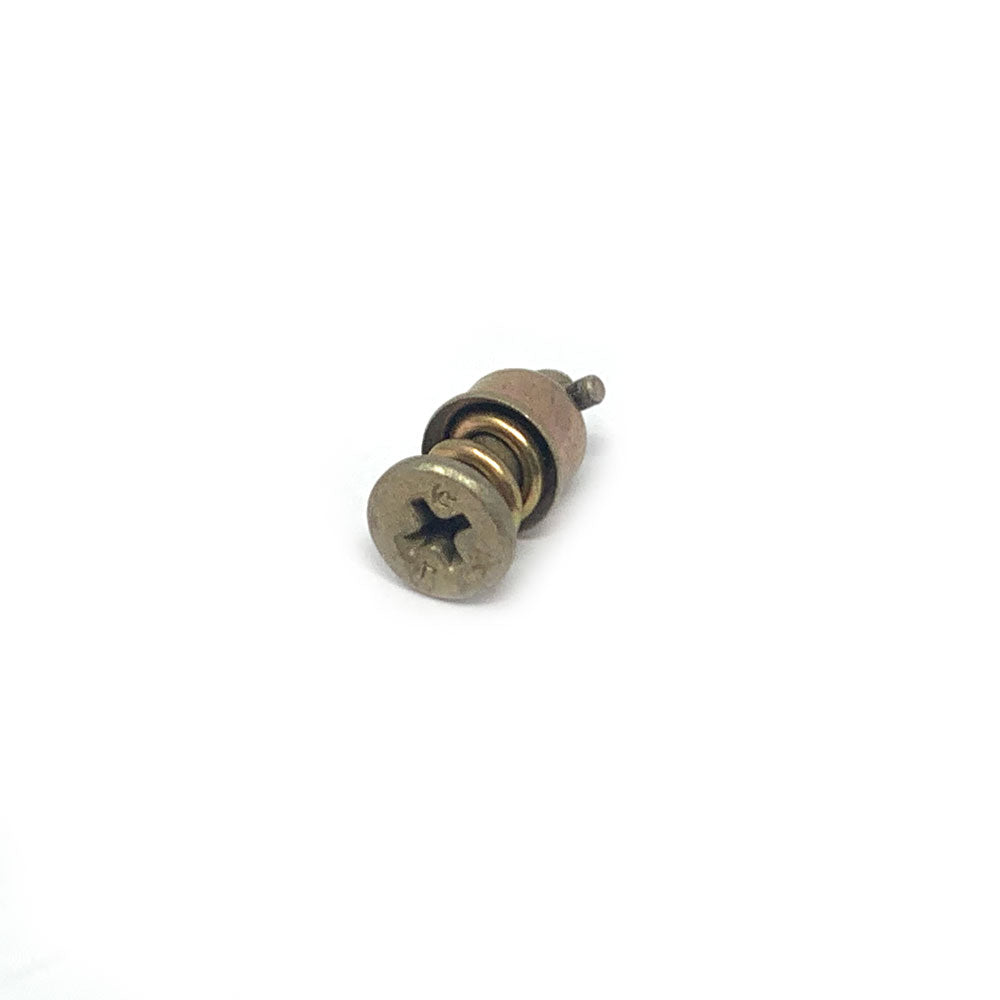

Alcoa Camloc - Steel Stud Assembly, Turnlock Fastener | 40S5-4

Hardware - Misc

40S5-4

We currently have 3 available.

Sale price $11.05 Regular price $13.81

Shipping calculated at checkout.

Alcoa Camloc - Steel Stud Assembly, Turnlock Fastener | 40S5-4

Features

  • Product Type: Stud
  • Fastener Series: 4002
  • Stud Size: 4
  • Stud Type: Heavy Duty
  • Head Type: Phillips
  • Head Shape: Flat
  • Body Material: Zinc Plated Steel
  • Total Stud Length: .740in [18.79mm]
  • Working Strength: 700 lbs
  • Ultimate Tensile Strength: 1050 lbs
  • Total Material Thickness (w/ Fixed Depth Receptacle)

Total Material Thickness (w/ Adjustable Depth Receptacle)

  • w/ countersunk flush grommet: .100-.400in
  • w/ low profile grommet: .070-.370in
