Currently the Airman 750 Headset is discontinued. Consider Upgrading to the New Airman 7 Headsets.
Guide
- Headset Model / Part Number List
- Airman 750 Parts List
- Airman 760 Parts List
- Overhaul / Maintenance Manual
Headset Model / Part Number List
|
Part Number |
Description |
Connector |
|
Airman 750 Double side headset, 2x PJ, 150W |
PJ-068/PJ-055 (or equivalent) |
|
|
Airman 750 Double side headset, 2x A5M, 150W |
XLR 5-pin Male |
|
|
Airman 750 Double side headset, 2x A5M, 150W, 7ft |
XLR 5-pin Male |
|
|
Airman 750 Double side headset, 2x A5M, 600W |
XLR 5-pin Male |
|
|
64300-212 |
Airman 750 Double side headset, 2x PJ, 600W |
PJ-068/PJ-055 (or equivalent) |
|
64300-218 |
Airman 750 Double side headset, 2x PJ, 150W, 8ft |
PJ-068 (or equivalent) |
|
64300-219 |
Airman 750 Double side headset, XLR A4F, 150W |
XLR 4-pin Female |
|
64300-220 |
Airman 750 Double side headset, 2x PJ, 150W |
PJ-068/PJ-055 (or equivalent) |
|
Airman 750 Single side headset, 2x PJ, 300W |
PJ-068/PJ-055 (or equivalent) |
|
|
Airman 760 Double side headphone, PJ, 150W |
PJ-055 (or equivalent) |

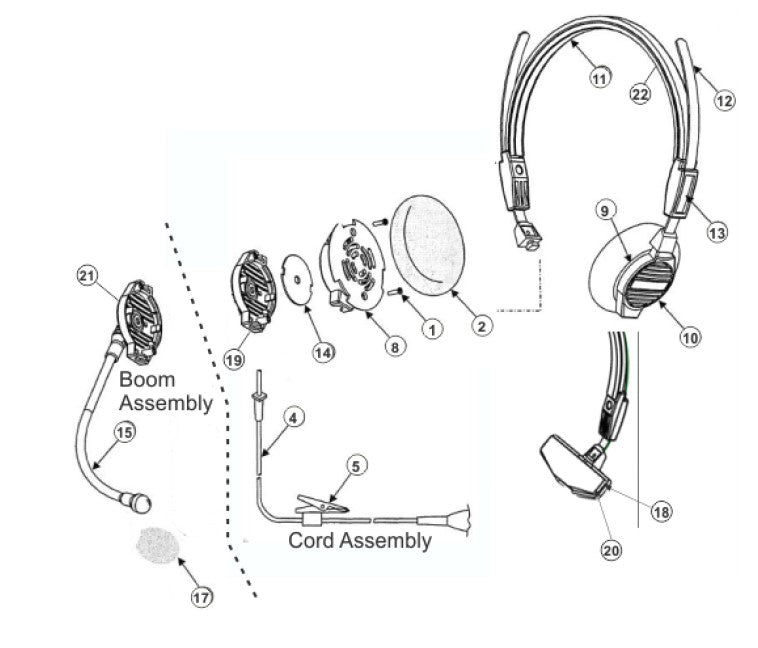

Airman 750 Parts List (IPC)
| Item | Part Number | Description | Qty Per Model | ||||||||
| -200 | -205 | -208 | -210 | -212 | -218 | -219 | -220 | -300 | |||
| 1 | 590404-360 | Screw, Pt, Pan Head, K15 X 6Mm, Blk Zinc | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2 |
| 2 | 800456-005 | Ear Cushion (2 Per Pkg.) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0.5 |
| 3 | 701335-000 | Cushion Pad | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 |
| 4 | 70413-002 | Cord Approximate Length: 5.5 Ft (1.67 M) | 1 | 1 | |||||||
| 63988-018 | Cord Approximate Length: 5.8 Ft (1.76M) | 1 | |||||||||
| 63988-025 | Cord Approximate Length: 7 Ft. (2.13 M) | 1 | |||||||||
| 63988-031 | Cord Approximate Length: 6 Ft. (1.82 M) | 1 | |||||||||
| 70413-002 | Cord Approximate Length: 5.5 Ft. (1.67 M) | 1 | |||||||||
| 63988-043 | Cord Length: 8 Ft. (2.4 M) | 1 | |||||||||
| S-F01U327247 | Cord | 1 | |||||||||
| 70413-006 | Cord Approximate Length: 5.5 Ft. (1.67 M) | 1 | |||||||||
| 5 | 590637-000 | Clothing Clip | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 |
| 8 | 64308-100 | Housing (Receiver) Assy Packaged, Left Side | 1 | 1 | 1 | ||||||
| 64308-108 | Housing (Receiver) Assy Packaged, Left Side | 1 | |||||||||
| 64308-115 | Housing (Receiver) Assy Packaged, Left Side | 1 | 1 | 1 | 1 | ||||||
| 64308-117 | Housing (Receiver) Assy Packaged, Left Side | 1 | |||||||||
| 9 | 64308-110 | Housing (Receiver) Assy Packaged, Right Side | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 64404-018 | Housing Rear, Right Side | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 64318-069 | Headband Assembly | 1 | ||||||||
| 64318-070 | Headband Assembly | 1 | |||||||||
| 63993-010 | Headband Assembly | 1 | |||||||||
| 64318-071 | Headband Assembly | 1 | |||||||||
| 64318-072 | Headband Assembly | 1 | |||||||||
| 64318-074 | Headband Assembly | 1 | |||||||||
| S-F01U327241 | Headband Assembly | 1 | |||||||||
| 64318-075 | Headband Assembly | 1 | |||||||||
| 64318-085 | Headband Assembly | 1 | |||||||||
| 12 | 64310-000 | Glider Assembly | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 |
| 13 | 64305-000 | Glider Spring | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 14 | 600578-000 | PCBA | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 15 | 64307-008 | Boom Assembly | 1 | 1 | 1 | 1 | |||||
| 64307-013 | Boom Assembly | 1 | 1 | 1 | 1 | 1 | |||||
| 16 | 59688-000 | Windscreen | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 800456-001 | Windscreen + O-Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 17a | 580001-003 | Optional O-Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 18 | 70531-004 | Temple Plate | 1 | ||||||||
| 20 | 70533-000 | Temple Plate Foam Pad | 1 | ||||||||
| 21b | 701246-000 | Boom Rotator Cap | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 22 | S-F01U322242 | Overhead Cord | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Airman 760 Parts List (IPC)
| Model | |||
| Item | Part Number | Description | 200 |
| 1 | 590404-360 | SCREW PT, PAN HEAD, K15 X 6MM, BLK ZINC | 4 |
| 2 | 800456-005 | EAR CUSHION (2 per pkg.) | 1 |
| 3 | 701335-000 | CUSHION PAD | 2 |
| 4 | 63988-002 | CORD Length: 5.5 ± 0.5 ft. (1.68 ± 0.15m) |
1 |
| 5 | 590637-000 | CLOTHING CLIP | 1 |
| 8 | 64308-100 | HOUSING (Receiver) ASSY PACKAGED, left side | 1 |
| 9 | 64308-110 | HOUSING (Receiver) ASSY PACKAGED, right side | 1 |
| 10 | 64404-018 | HOUSING REAR, right side no printing | 1 |
| 800504-000 | HOUSING REAR, right side printed | 1 | |
| 11 | S-64318-081 | HEADBAND ASSEMBLY | 1 |
| 12 | 64310-000 | GLIDER ASSEMBLY | 2 |
| 13 | 64330-500 | GLIDER SPRING | |
| S-F01U327240 | GLIDER SPRING(10-pack) | 2 | |
| 14 | Not Available as a replaceable part | CIRCUIT BOARD | 1 |
| 19 | F01U327242 | HOUSING REAR, LEFT SIDE | 1 |
Overhaul / Maintenance Manual
